Komatsu WA380-3 Loader Control(Att.Control Lever) (|000263) Parts

Komatsu WA380-3 loader control(att.control lever) (|000263) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 10[Att. Opt] / Loader Control(Att.Control Lever) (|000263).

WA380-3Machine serial 16338-UP42 part occurrences

Checking current purchase options...

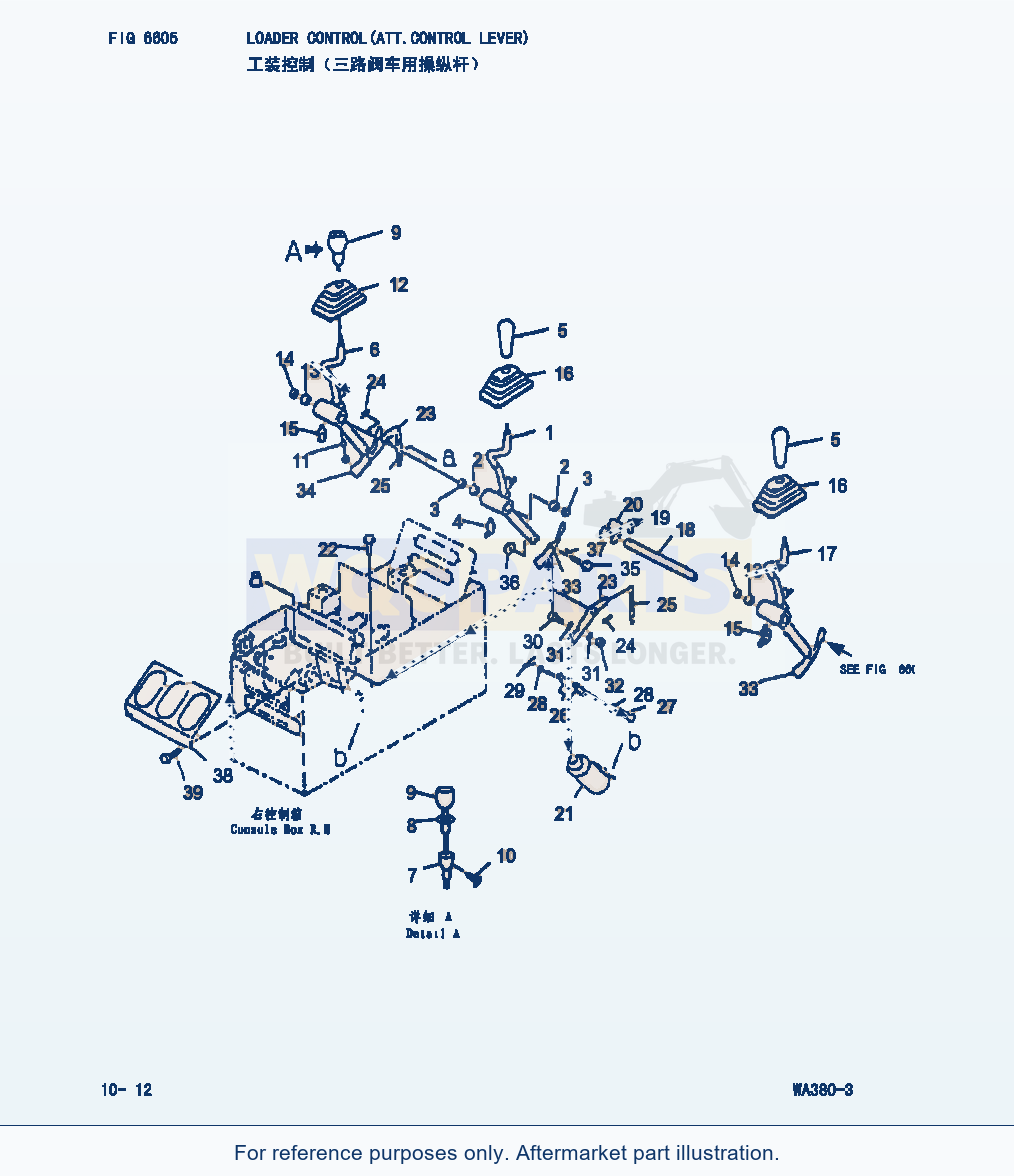

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 42 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	LEVER,BUCKETField_1: 16001-	1	Request quote
2	BEARINGField_1: 16001-	2	View product ↗
3	SEALField_1: 16001-	2	View product ↗
4	FITTING,GREASEField_1: 16001-	1	View product ↗
5	KNOBField_1: 16001-	2	View product ↗
5	LEVER ASS'Y,LIFTField_1: 16001-	1	Request quote
6	LEVERField_1: 16001-	1	Request quote
7	SWITCHField_1: 16001-	1	Request quote
7	SWITCH,TOPField_1: 16001-	1	Request quote
8	BODYField_1: 16001-	1	Request quote
9	COVERField_1: 16001-	1	Request quote
10	SCREWField_1: 16001-	1	Request quote
11	GROMMETField_1: 16001-	1	Request quote
12	BOOTField_1: 16001-	1	View product ↗
13	BEARINGField_1: 16001-	4	View product ↗
14	SEALField_1: 16001-	4	View product ↗
15	FITTING,GREASEField_1: 16001-	2	View product ↗
16	BOOTField_1: 16001-	2	View product ↗
17	LEVER ATTField_1: 16001-	1	Request quote
18	SHAFTField_1: 16001-	1	Request quote
19	PIN,SPRINGField_1: 16001-	1	Request quote
20	SHIM,1.00MMField_1: 16001-	5	Request quote
21	SOLENOIDField_1: 16001-	1	Request quote
22	BOLTField_1: 16001-	4	Request quote
23	LEVER ASS'YField_1: 16001-	2	Request quote
25	BUSHINGField_1: 16001-	2	Request quote
24	PIN,COTTERField_1: 16001-	2	Request quote
25	SPRINGField_1: 16001-	2	Request quote
26	PLATEField_1: 16001-	2	Request quote
27	PINField_1: 16001-	2	Request quote
28	WASHERField_1: 16001-	4	View product ↗
29	PIN,COTTERField_1: 16001-	2	Request quote
30	BEARINGField_1: 16001-	2	Request quote
31	WASHERField_1: 16001-	4	View product ↗
32	NUTField_1: 16001-	2	View product ↗
33	PLATEField_1: 16001-	2	Request quote
34	PLATE,LIFTField_1: 16001-	1	Request quote
35	BOLTField_1: 16001-	3	Request quote
36	NUTField_1: 16001-	3	Request quote
37	PIN,DOWELField_1: 16001-	6	View product ↗
38	PLATEField_1: 16001-	1	Request quote
39	BOLTField_1: 16001-	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
