Komatsu WA380-3 Marks And Plates(English) (|000271) Parts

Komatsu WA380-3 marks and plates(english) (|000271) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 10[Att. Opt] / Marks And Plates(English) (|000271).

WA380-3Machine serial 16338-UP15 part occurrences

Checking current purchase options...

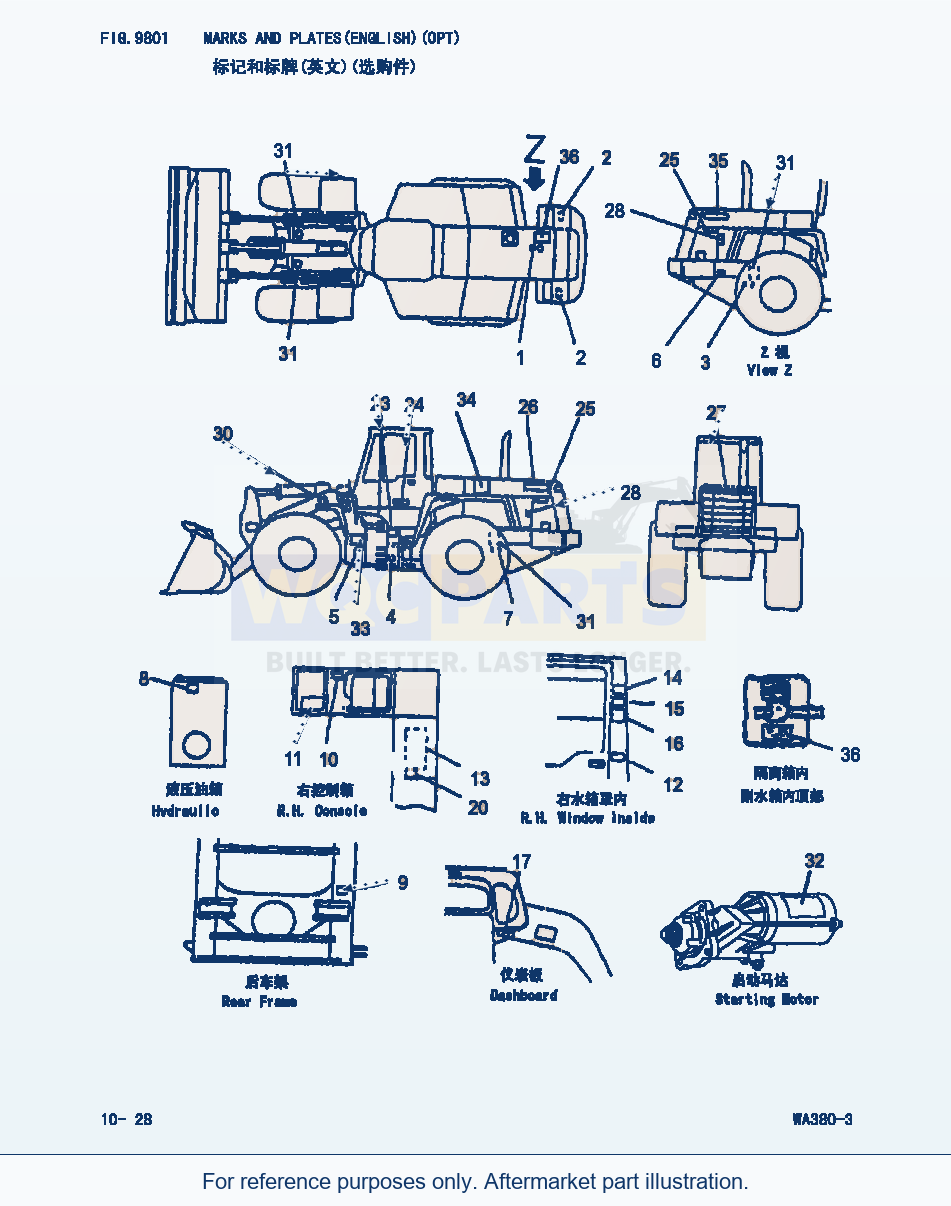

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 15 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	PLATE KITField_1: 16001-	1	Request quote
10	PLATE KITField_1: 16001-	1	Request quote
23	CHART.OILField_1: 16001-	1	Request quote
24	PLATE.MARK.KOMATSUField_1: 16001-	2	Request quote
25	PLATE.MARK.AVANCE LOADERField_1: 16001-	2	Request quote
26	PLATE.MARK.WA380(LH)Field_1: 16001-	2	Request quote
27	PLATE.MARK.KOMATSUField_1: 16001-	1	Request quote
28	PLATE.WARNINGField_1: 16001-	2	Request quote
30	PLATE.SAFETYField_1: 16001-	2	Request quote
31	PLATE.MARK.HANDLINGField_1: 16001-	4	Request quote
32	PLATE.STARTING MOTORField_1: 16001-	1	Request quote
33	PLATE.NAMEField_1: 16001-	1	Request quote
34	PLATE.AIR CLEANER CHANGEField_1: 16001-	1	Request quote
35	PLATE MARK WA380(RH)Field_1: 16001-	-	Request quote
36	PLATEField_1: 16001-	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE.SAFETY.RADIATOR CAP | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE.SAFETY.BATTERY CABLE | QTY: 2 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE.INSTRUCTION.ENGINE OIL DRAIN | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE.SAFETY.SAFETY BAR | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE.SAFETY.KEEP OUT | QTY: 2 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE.INSTRUCTION.FUEL | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE.INSTRUCTION.RADIATOR DRAIN | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE.SAFETY.HYDRAULIC TANK CAP | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE.INSTRUCTION.REAR AXLE PIVOT PIN | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE.OPERATING.WORK EQUIPMENT LEVER | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE.OPERATING.WORK EQUIPMENT LEVER | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: PLATE.NAME.RELAY | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: PLATE.NAME.FUSE | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: PLATE.SAFETY.EQUIPMENT LEVER | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: PLATE.SAFETY.INSPECTION | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: PLATE.SAFETY.BEFORE OPERATING | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 17 | Description: PLATE.OPERATING.STARTING SWITCH | QTY: 1 | OPTIONS: Field_1: 16001-

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 20 | Description: PLATE.NAME.RELAY | QTY: 1 | OPTIONS: Field_1: 16001-

Catalog sitemap

Using Komatsu WA380-3 Marks And Plates(English) (|000271) Parts

Use the Komatsu WA380-3 Marks And Plates(English) (|000271) Parts listing to identify aftermarket replacement parts within the 10[att. opt] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 15 listed part occurrences, including plate kit (reference 426-93-21570), plate kit (reference 424-V04-Z910) and chart.oil (reference 423-V04-D640). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
