13 Hydraulic System

Komatsu WA380-3 Control Valve — Lift Cylinder And Pipings Parts

Komatsu WA380-3 control valve — lift cylinder and pipings parts for machine serial H20051-H20500. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 13 Hydraulic System / Control Valve / Lift Cylinder And Pipings.

WA380-3Machine serial H20051-H2050037 part occurrences

Checking current purchase options...

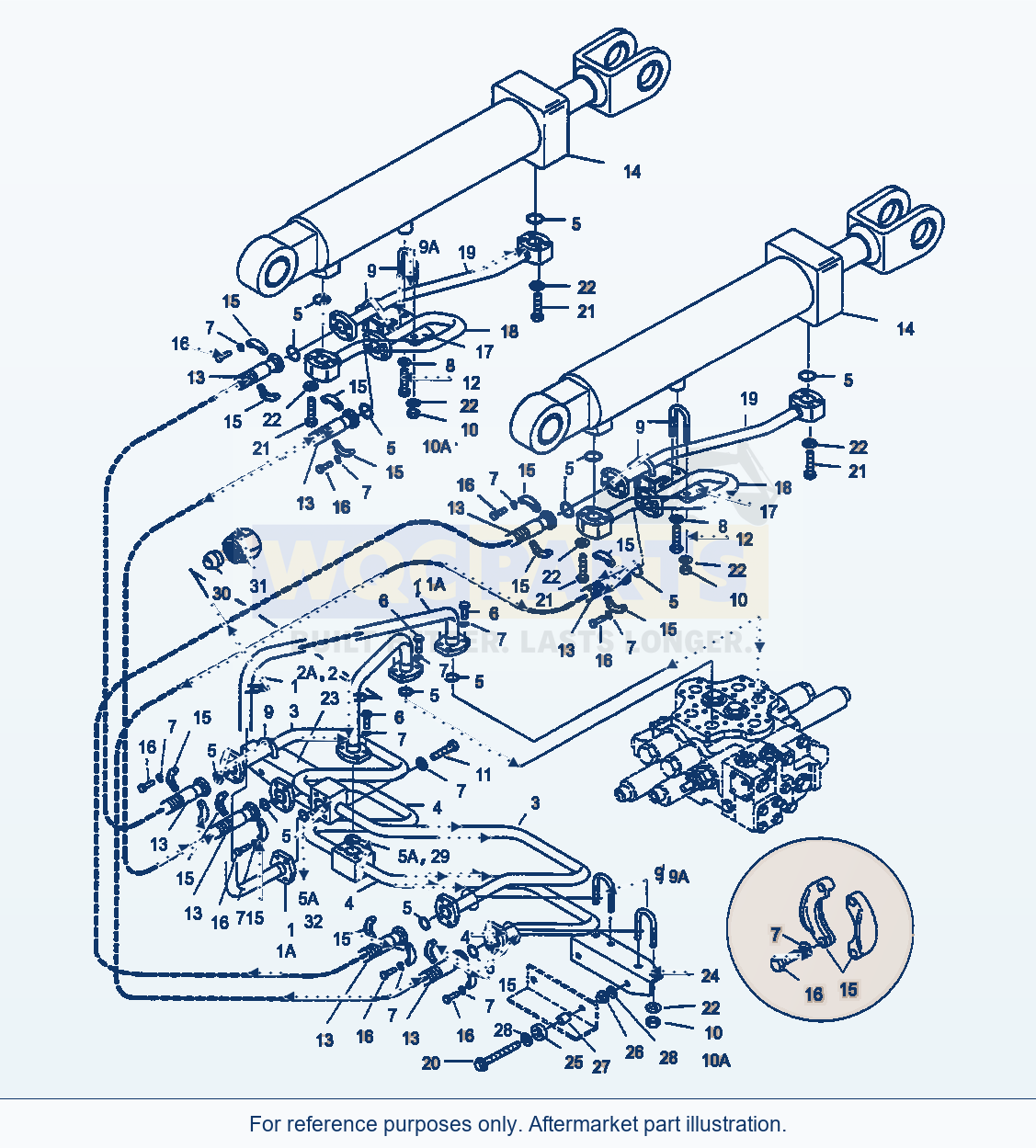

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 37 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	PIPESN: 20206	1	Request quote
1A	PIPESN: 20207-UP	1	Request quote
2	PIPESN: 20206	1	Request quote
2A	PIPESN: 20207-UP	1	Request quote
3	PIPE	1	Request quote
4	PIPE	1	Request quote
5	O-RING	14	Request quote
5A	O-RINGSN: 20206	2	Request quote
6	SCREW	12	Request quote
7	PLAIN WASHER	8	Request quote
8	PLAIN WASHER	2	View product ↗
9	U-BOLTSN: 20206	8	Request quote
9A	STIRRUPSN: 20207-UP	1	Request quote
10	NUTSN: 20206	16	Request quote
10A	NUTSN: 20207-UP	16	Request quote
11	SCREW	8	Request quote
12	SCREWSN: 20206	2	Request quote
12A	SCREWSN: 20207-UP	2	Request quote
13	HOSE ASSEMBLY	4	Request quote
15	HALF FLANGE	16	View product ↗
16	SCREW	32	View product ↗
17	SHEET	2	Request quote
18	PIPE	2	Request quote
19	PIPE	2	Request quote
20	SCREW	4	Request quote
21	SCREW	16	Request quote
22	PLAIN WASHER	10	View product ↗
23	BRACKET	1	Request quote
24	BRACKET	1	Request quote
25	BUFFER	4	Request quote
26	BUFFER	4	Request quote
27	DISTANCE PIECE	4	Request quote
28	DISC	8	Request quote
29	O-RINGSN: 20207-UP	2	View product ↗
30	PLUGSN: 20207-UP	2	Request quote
31	BOXNUTSN: 20207-UP	2	Request quote
32	O-RINGSN: 20207-UP	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

LIFT CYLINDER
