Komatsu WA380-3 Wheel Loader Brake Valve(Tandem Type) (|000155) Parts

Komatsu WA380-3 brake valve(tandem type) (|000155) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 30[Drive Shaft Differential And Wheels] / Brake Valve(Tandem Type) (|000155).

WA380-3Machine serial 16338-UP40 part occurrences

Checking current purchase options...

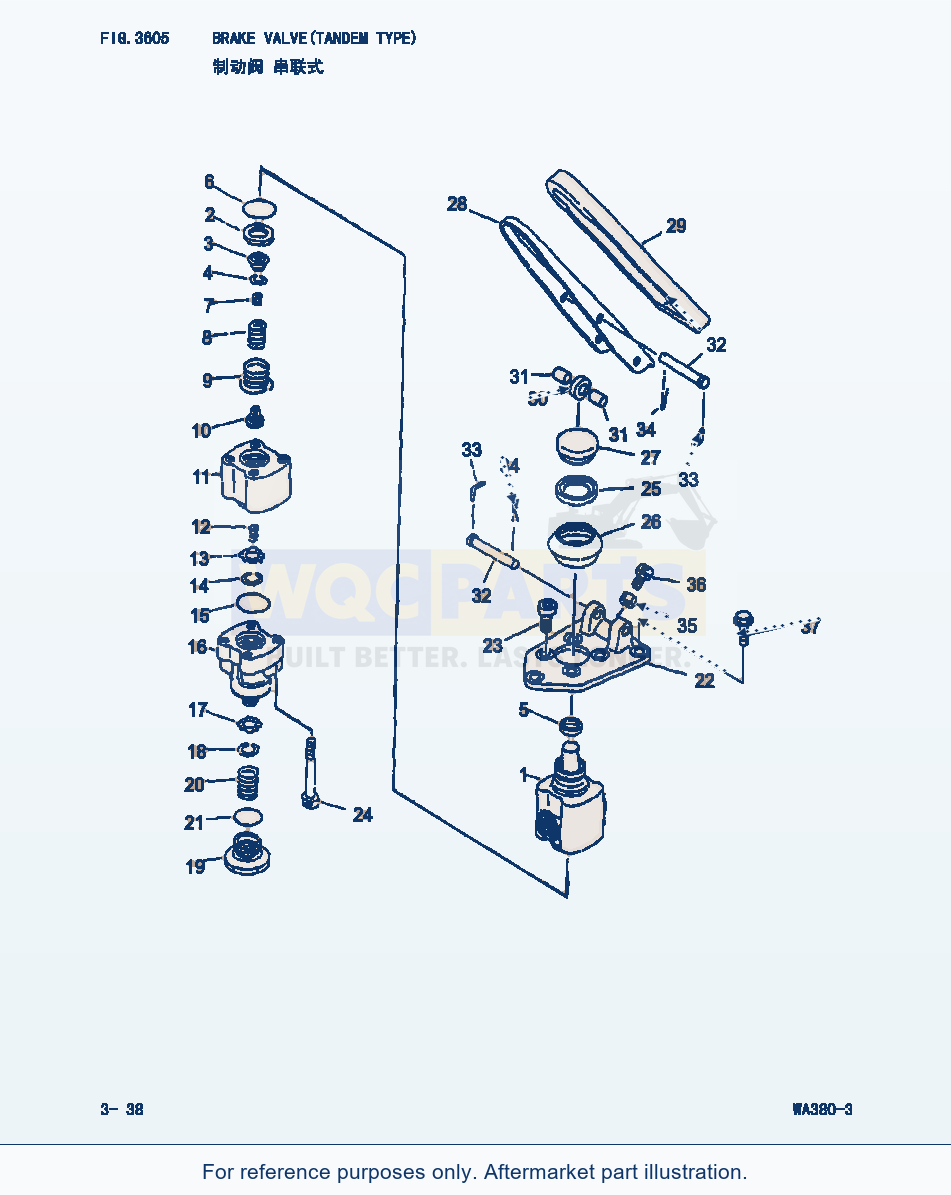

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 40 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	VALVE ASS'Y TANDEMField_1: 16001--	1	Request quote
1	FLANGE ASS'YField_1: 16001-	1	Request quote
2	RETAINERField_1: 16001-	1	Request quote
3	RETAINERField_1: 16001-	1	Request quote
4	RING SNAPField_1: 16001-	1	Request quote
5	SEAL OILField_1: 16001-	1	View product ↗
6	O-RINGField_1: 16001-	1	Request quote
7	SPRINGField_1: 16001-	1	Request quote
8	SPRINGField_1: 16001-	1	Request quote
9	SPRINGField_1: 16001-	1	Request quote
10	HOLDERField_1: 16001-	1	Request quote
11	CYLINDER ASS'YField_1: 16001-	1	Request quote
12	SPRINGField_1: 16001-	1	Request quote
13	RETAINERField_1: 16001-	1	Request quote
14	RING SNAPField_1: 16001-	1	Request quote
15	O-RINGField_1: 16001-	1	Request quote
16	CYLINDER ASS'YField_1: 16001-	1	Request quote
17	RETAINERField_1: 16001-	1	Request quote
18	RING SNAPField_1: 16001-	1	Request quote
19	NUT ENDField_1: 16001-	1	Request quote
20	SPRINGField_1: 16001-	1	Request quote
21	O-RINGField_1: 16001-	1	Request quote
22	BRACKET ASS'YField_1: 16001-	1	Request quote
23	BUSHINGField_1: 16001-	2	Request quote
23	BOLTField_1: 16001-	4	Request quote
24	BOLTField_1: 16001-	4	Request quote
25	STOPPER PEDALField_1: 16001-	1	Request quote
26	BOOTField_1: 16001-	1	Request quote
27	SEATField_1: 16001-	1	View product ↗
28	PLATE PEDALField_1: 16001-	1	Request quote
29	PAD PEDALField_1: 16001-	1	Request quote
30	ROLLER ASS'YField_1: 16001-	1	Request quote
32	BUSHINGField_1: 16001-	1	Request quote
31	COLLARField_1: 16001-	2	Request quote
32	PINField_1: 16001-	2	Request quote
33	PINField_1: 16001-	2	Request quote
34	PIN SNAPField_1: 16001-	2	Request quote
35	NUTField_1: 16001-	1	Request quote
36	BOLTField_1: 16001-	1	Request quote
37	BOLTField_1: 16001-	3	View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
