30[Drive Shaft Differential And Wheels]

Komatsu WA380-3 Front Wheel Brake And Final Drive (|000140) Parts

Komatsu WA380-3 front wheel brake and final drive (|000140) parts for machine serial 16338-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: 30[Drive Shaft Differential And Wheels] / Front Wheel Brake And Final Drive (|000140).

WA380-3Machine serial 16338-UP28 part occurrences

Checking current purchase options...

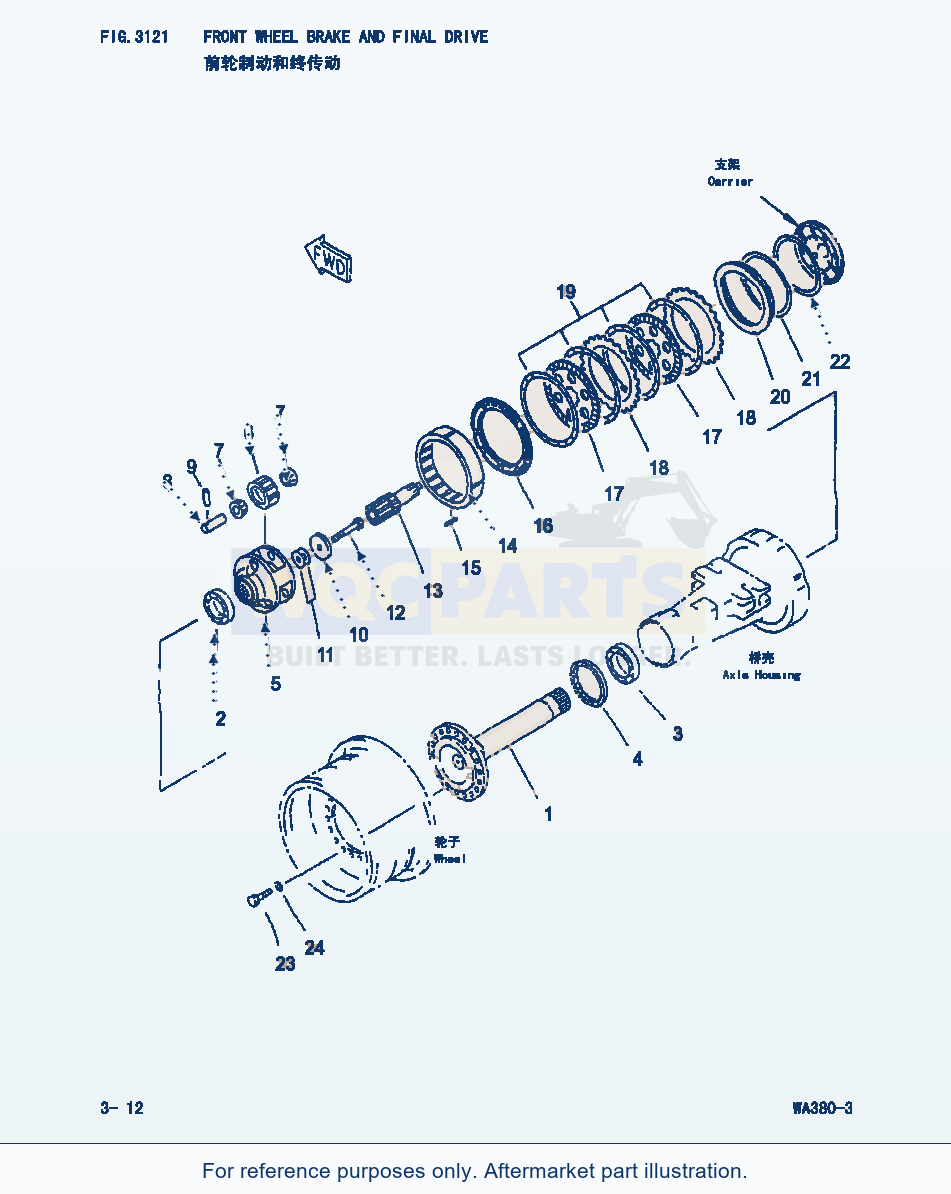

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 28 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
0	AXLE ASS'Y.FRONT THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3121Field_1: 16001-	1	Request quote
1	SHAFTField_1: 16001-	2	Request quote
2	BEARINGField_1: 16001-	2	View product ↗
3	BEARINGField_1: 16001-	2	Request quote
4	SEAL.OILField_1: 16001-	2	View product ↗
5	CARRIERField_1: 16001-	2	Request quote
6	GEARField_1: 16001-	6	Request quote
7	BEARINGField_1: 16001-	12	Request quote
8	SHAFTField_1: 16001-	6	Request quote
9	PINField_1: 16001-	6	View product ↗
10	WASHERField_1: 16001-	2	Request quote
11	SHIM.0.05MMField_1: 16001-	8	Request quote
12	SHIM.0.2MMField_1: 16001-	5	Request quote
13	SHIM.0.3MMField_1: 16001-	5	Request quote
14	SHIM.0.8MMField_1: 16001-	6	Request quote
12	BOLTField_1: 16001-	2	View product ↗
13	SHAFTField_1: 16001-	2	Request quote
14	GEARField_1: 16001-	2	Request quote
15	PINField_1: 16001-	8	Request quote
16	PLATEField_1: 16001-	2	Request quote
17	DISCField_1: 16001-	4	View product ↗
18	PLATEField_1: 16001-	4	View product ↗
19	SPRINGField_1: 16001-	8	View product ↗
20	PISTONField_1: 16001-	2	Request quote
21	SEALField_1: 16001-	2	View product ↗
22	SEALField_1: 16001-	2	View product ↗
23	BOLTField_1: 16001-	36	Request quote
24	WASHERField_1: 16001-	36	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

Catalog sitemap

Using Komatsu WA380-3 Front Wheel Brake And Final Drive (|000140) Parts

Use the Komatsu WA380-3 Front Wheel Brake And Final Drive (|000140) Parts listing to identify aftermarket replacement parts within the 30[drive shaft differential and wheels] section. This wheel loader application is listed for machine serial 16338-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 28 listed part occurrences, including axle ass'y.front this assembly consists of all parts shown in figs.3101 to 3121 (reference 423-22-20002), shaft (reference 423-22-22410) and bearing (reference 421-22-11860). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
