Komatsu WA380-3 Battery Box (Rear Combination Lamp) Parts
Komatsu WA380-3 battery box (rear combination lamp) parts for machine serial 53001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Battery Box (Rear Combination Lamp).
Checking current purchase options...

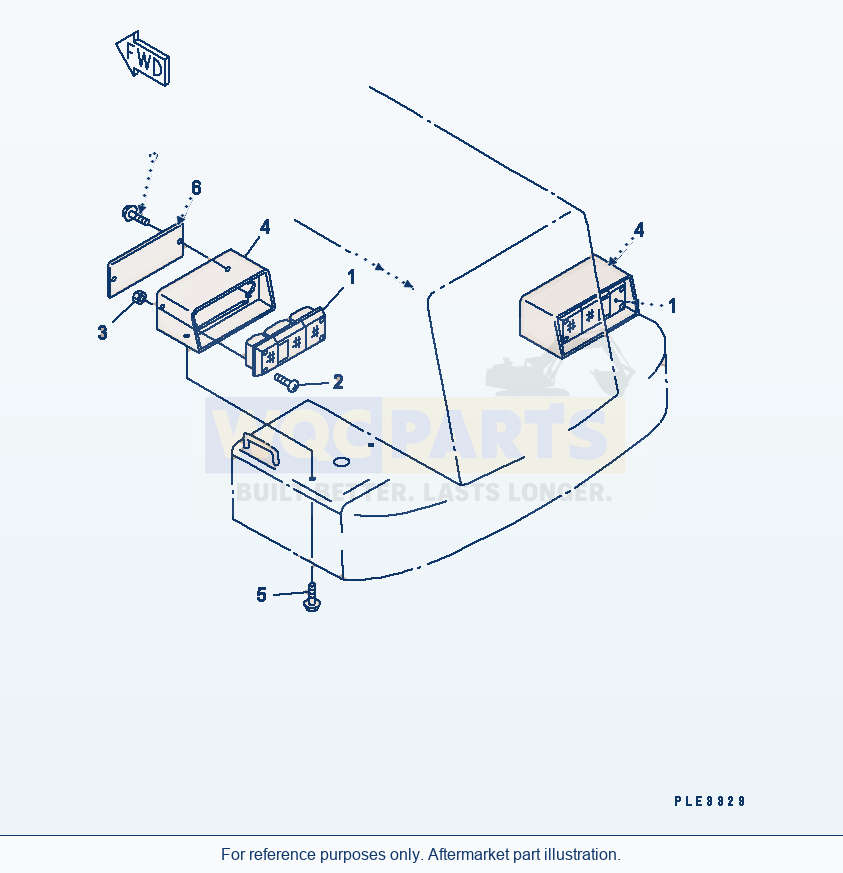

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LAMP ASS'Y,REAR COMBINATION LAMP, L.H.SN: 53001-UP | 1 | View product ↗ | |||
| 1 | LAMP ASS'Y,REAR COMBINATION LAMP, R.H.SN: 53001-UP | 1 | View product ↗ | |||
| 1 | LENS,L.H.SN: 53001-UP | 1 | Request quote | |||
| 1 | LENS,R.H.SN: 53001-UP | 1 | Request quote | |||
| 1 | BULB, 25/10W,TAIL AND STOP LAMPSN: 53001-UP | 1 | View product ↗ | |||
| 1 | BULB, 25W,TURN SIGNAL AND BACK-UP LAMPSN: 53001-UP | 2 | View product ↗ | |||
| 2 | SCREWSN: 53001-UP | 4 | Request quote | |||
| 3 | NUTSN: 53001-UP | 4 | Request quote | |||
| 4 | BRACKETSN: 53001-UP | 2 | Request quote | |||
| 5 | BOLTSN: 53001-UP | 4 | Request quote | |||
| 6 | PLATESN: 53001-UP | 2 | Request quote | |||
| 7 | BOLTSN: 53001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3 Battery Box (Rear Combination Lamp) Parts
Use the Komatsu WA380-3 Battery Box (Rear Combination Lamp) Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial 53001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including lamp ass'y,rear combination lamp, l.h. (reference 417-06-23310), lamp ass'y,rear combination lamp, r.h. (reference 417-06-23320) and lens,l.h. (reference 417-06-23330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
