Komatsu WA380-3 Wheel Loader Front Light Parts
Komatsu WA380-3 front light parts for machine serial 53001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Front Light.
Checking current purchase options...

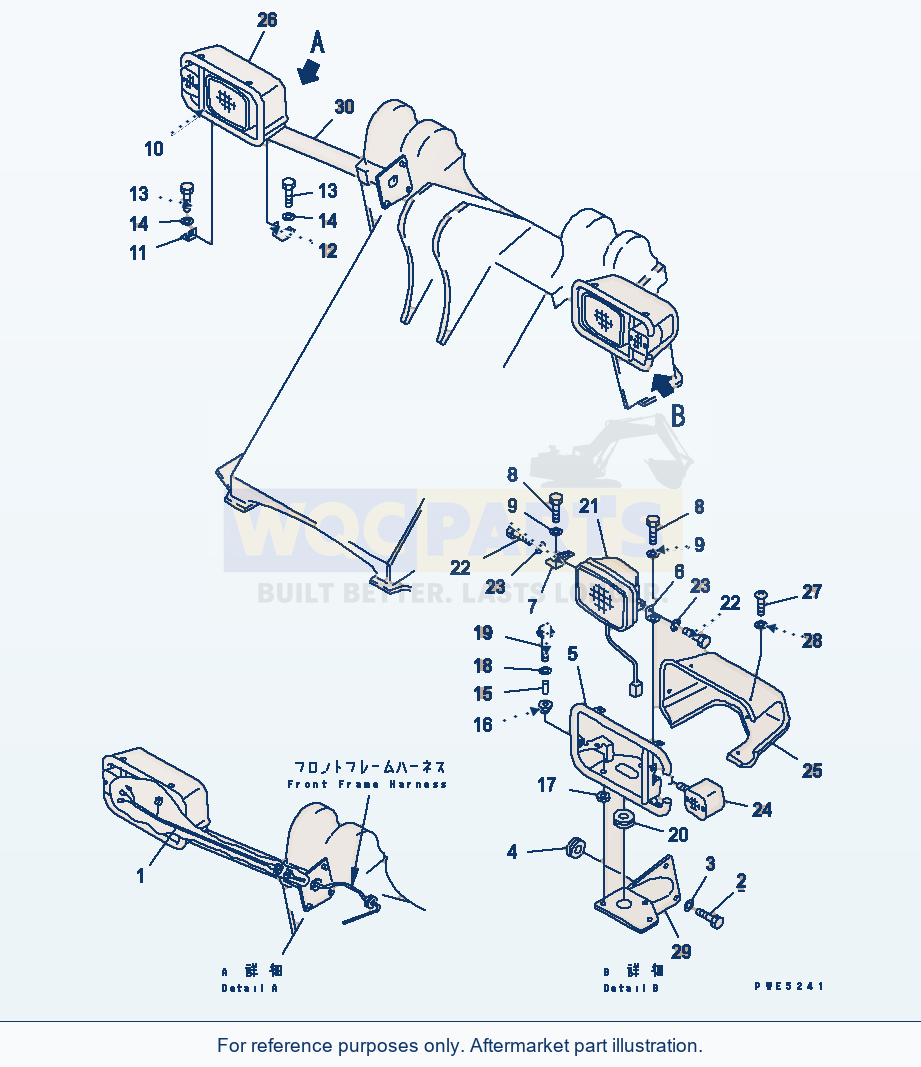

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WIRING HARNESSSN: 53001-UP | 2 | Request quote | |||
| 2 | BOLTSN: 53001-UP | 6 | Request quote | |||
| 3 | WASHERSN: 53001-UP | 6 | View product ↗ | |||
| 4 | GROMMETSN: 53001-UP | 2 | Request quote | |||
| 5 | BRACKET,L.H.SN: 53001-UP | 1 | Request quote | |||
| 6 | PLATESN: 53001-UP | 1 | Request quote | |||
| 7 | PLATE,L.H.SN: 53001-UP | 1 | Request quote | |||
| 8 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 9 | WASHERSN: 53001-UP | 2 | View product ↗ | |||
| 10 | BRACKET,R.H.SN: 53001-UP | 1 | Request quote | |||
| 11 | PLATESN: 53001-UP | 1 | Request quote | |||
| 12 | PLATE,R.H.SN: 53001-UP | 1 | Request quote | |||
| 13 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 14 | WASHERSN: 53001-UP | 2 | View product ↗ | |||
| 15 | SPACERSN: 53001-UP | 6 | Request quote | |||
| 16 | CUSHIONSN: 53001-UP | 6 | Request quote | |||
| 17 | CUSHIONSN: 53001-UP | 6 | Request quote | |||
| 18 | WASHERSN: 53001-UP | 6 | Request quote | |||
| 19 | BOLTSN: 53001-UP | 6 | Request quote | |||
| 20 | GROMMETSN: 53001-UP | 2 | Request quote | |||
| 21 | HEAD LAMP ASS'YSN: 53001-UP | 2 | Request quote | |||
| 21 | LENSSN: 53001-UP | 1 | Request quote | |||
| 21 | BULB, 75/70WSN: 53001-UP | 1 | Request quote | |||
| 22 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 23 | WASHERSN: 53001-UP | 2 | View product ↗ | |||
| 24 | LAMP ASS'Y,TURN SIGNAL AND CLEARANCESN: 53001-UP | 2 | Request quote | |||
| 24 | LENS,FRONTSN: 53001-UP | 1 | Request quote | |||
| 24 | LENS,REARSN: 53001-UP | 1 | Request quote | |||
| 24 | BULB, 5WSN: 53001-UP | 1 | Request quote | |||
| 24 | BULB, 25WSN: 53001-UP | 1 | View product ↗ | |||
| 24 | SCREWSN: 53001-UP | 4 | Request quote | |||
| 25 | COVER,L.H.SN: 53001-UP | 1 | Request quote | |||
| 26 | COVER,R.H.SN: 53001-UP | 1 | Request quote | |||
| 27 | SCREWSN: 53001-UP | 10 | Request quote | |||
| 28 | WASHERSN: 53001-UP | 10 | View product ↗ | |||
| 29 | SUPPORT,L.H.SN: 53167-UP | 1 | Request quote | |||
| 29 | SUPPORT,L.H.SN: 53001-53166 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 30 | SUPPORT,R.H.SN: 53167-UP | 1 | Request quote | |||
| 30 | SUPPORT,R.H.SN: 53001-53166 | The part specified in the line above can be used instead of this part | 1 | Request quote |
