Komatsu WA380-3 Cylinder Head(#15614-) Serial 53001-UP Parts
Komatsu WA380-3 cylinder head(#15614-) serial 53001-up parts for machine serial 53001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D108-1F-6 S/N 10001-UP / Engine / Cylinder Head(#15614-).
Checking current purchase options...

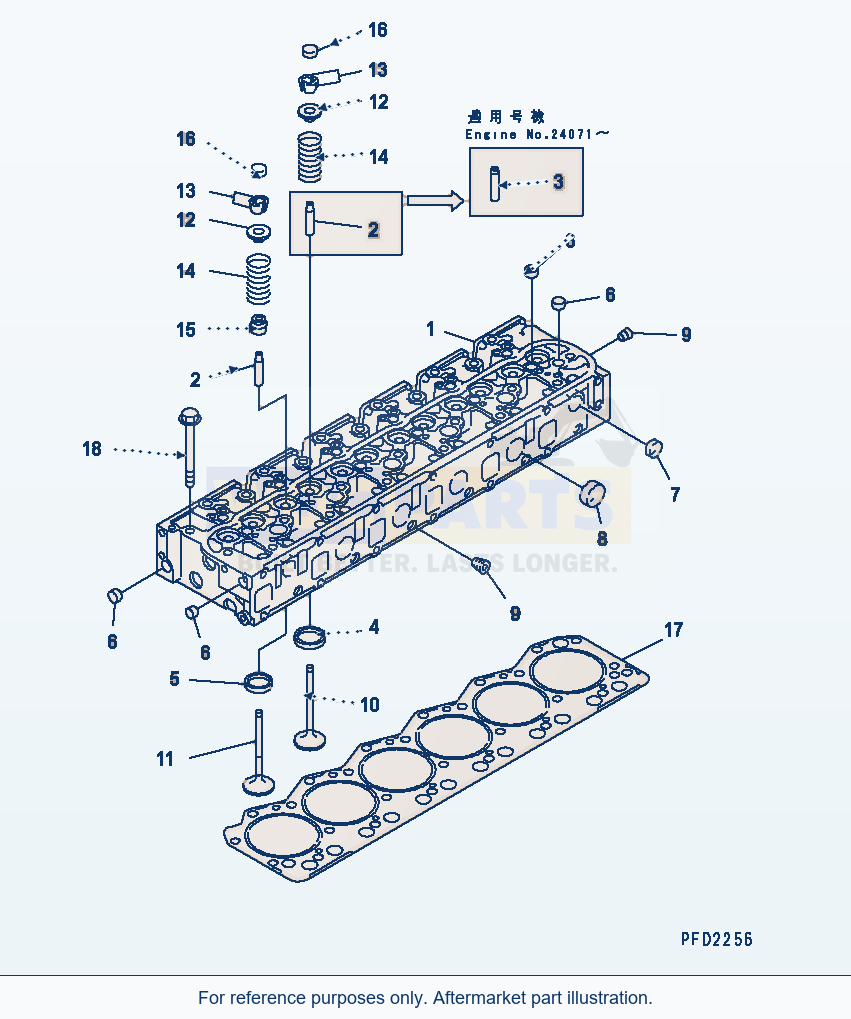

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 34 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CYLINDER HEAD ASS'Y,VALVE LESSSN: 24071-UP | 1 | Request quote | |||
| 2 | CYLINDER HEAD ASS'Y,VALVE LESSSN: 15614-24070 | 1 | Request quote | |||
| 2 | GUIDE,EXHAUST VALVESN: 24071-UP | 6 | View product ↗ | |||
| 2 | GUIDE,VALVESN: 15614-24070 | 12 | View product ↗ | |||
| 3 | GUIDE,INTAKE VALVESN: 24071-UP | 6 | View product ↗ | |||
| 4 | SEAT,INTAKE VALVE (STD)SN: 24071-UP | 6 | View product ↗ | |||
| 4 | SEAT,INTAKE VALVE (STD)SN: 15614-24070 | The part specified in the line above can be used instead of this part | 6 | View product ↗ | |||
| 4 | SEAT, 0.25MM,INTAKE VALVE (OS)SN: 24071-UP | 6 | Request quote | |||
| 4 | SEAT, 0.25MM,INTAKE VALVE (OS)SN: 15614-24070 | The part specified in the line above can be used instead of this part | 6 | View product ↗ | |||
| 4 | SEAT, 0.50MM,INTAKE VALVE (OS)SN: 24071-UP | 6 | Request quote | |||
| 4 | SEAT, 0.50MM,INTAKE VALVE (OS)SN: 15614-24070 | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 4 | SEAT, 0.75MM,INTAKE VALVE (OS)SN: 24071-UP | 6 | Request quote | |||
| 4 | SEAT, 0.75MM,INTAKE VALVE (OS)SN: 15614-24070 | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 4 | SEAT, 1.00MM,INTAKE VALVE (OS)SN: 24071-UP | 6 | Request quote | |||
| 4 | SEAT, 1.00MM,INTAKE VALVE (OS)SN: 15614-24070 | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 5 | SEAT,EXHAUST VALVE (STD)SN: 15614-UP | 6 | View product ↗ | |||
| 5 | SEAT, 0.25MM,EXHAUST VALVE (OS)SN: 15614-UP | 6 | View product ↗ | |||
| 5 | SEAT, 0.50MM,EXHAUST VALVE (OS)SN: 15614-UP | 6 | Request quote | |||
| 5 | SEAT, 0.75MM,EXHAUST VALVE (OS)SN: 15614-UP | 6 | Request quote | |||
| 5 | SEAT, 1.00MM,EXHAUST VALVE (OS)SN: 15614-UP | 6 | Request quote | |||
| 6 | PLUGSN: 19433-UP | 9 | View product ↗ | |||
| 6 | PLUGSN: 15614-19432 | 8 | View product ↗ | |||
| 7 | PLUGSN: 15614-UP | 17 | View product ↗ | |||
| 8 | PLUGSN: 15614-UP | 4 | View product ↗ | |||
| 9 | PLUGSN: 15614-UP | 7 | View product ↗ | |||
| 10 | VALVE,INTAKESN: 15614-UP | 6 | View product ↗ | |||
| 11 | VALVE,EXHAUSTSN: 15614-UP | 6 | View product ↗ | |||
| 12 | GUIDE,SPRINGSN: 15614-UP | 12 | View product ↗ | |||
| 13 | COTTER,VALVESN: 15614-UP | 24 | View product ↗ | |||
| 14 | SPRING,VALVESN: 15614-UP | 12 | View product ↗ | |||
| 15 | SEAL,EXHAUST VALVE (K1)SN: 15614-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 16 | CAP,STEMSN: 15614-UP | 12 | Request quote | |||
| 17 | GASKET (K1)SN: 15614-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 18 | BOLTSN: 15614-UP | 26 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: HEAD,CYLINDER | QTY: 1 | OPTIONS: SN: 15614-UP
Using Komatsu WA380-3 Cylinder Head(#15614-) Serial 53001-UP Parts
Use the Komatsu WA380-3 Cylinder Head(#15614-) Serial 53001-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 53001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 34 listed part occurrences, including cylinder head ass'y,valve less (reference 6221-11-1300), cylinder head ass'y,valve less (reference 6221-11-1200) and guide,exhaust valve (reference 6221-19-1311). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D108-1F-6 (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
