Komatsu WA380-3 Piston Serial 50001-52999 (OVERSEAS VERSION) Parts
Komatsu WA380-3 piston serial 50001-52999 (overseas version) parts for machine serial 50001-52999 (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D108-1F-6 S/N 10001-UP / Engine / Piston.
Checking current purchase options...

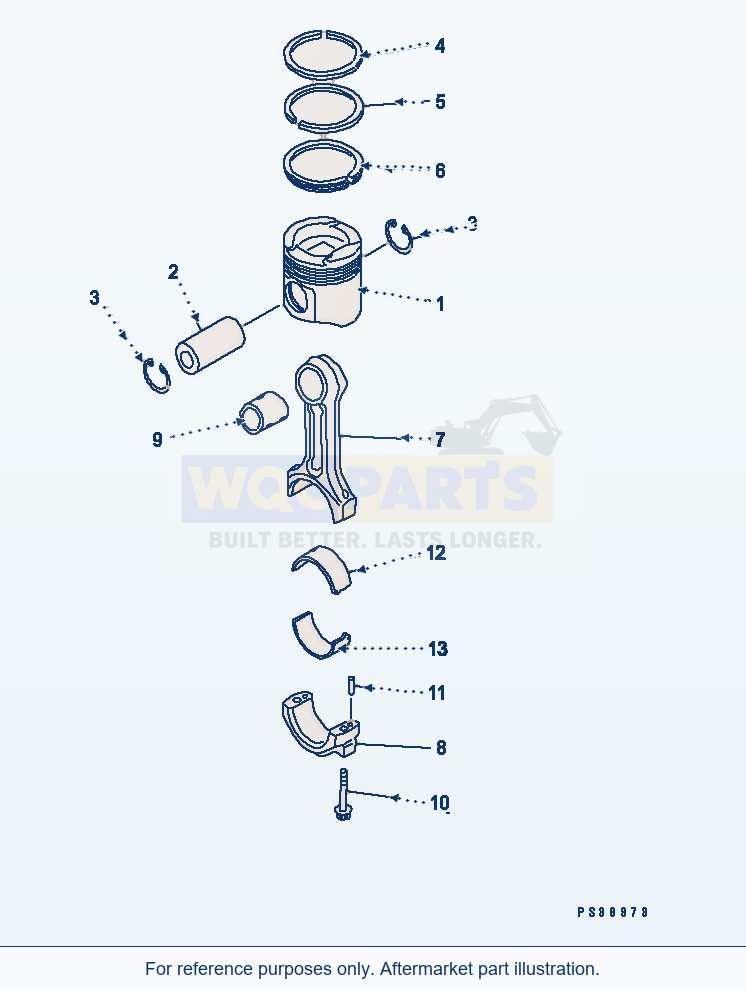

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PISTONSN: 10001-UP | 6 | View product ↗ | |||
| 2 | PIN,PISTONSN: 10001-UP | 6 | View product ↗ | |||
| 3 | RING,SNAPSN: 10001-UP | 12 | View product ↗ | |||
| 4 | PISTON RING ASS'YSN: 10001-UP | 6 | View product ↗ | |||
| 8 | CONNECTING ROD ASS'YSN: 10001-UP | 6 | View product ↗ | |||
| 9 | BUSHINGSN: 10001-UP | This indicates a part supplied as semi-finished. It requires additional work before installation. | 1 | View product ↗ | |||
| 10 | BOLTSN: 10001-UP | 2 | View product ↗ | |||
| 11 | PIN,DOWELSN: 10001-UP | 2 | Request quote | |||
| 15 | CRANK PIN METAL A.SN: 10001-UP | 6 | View product ↗ | |||
| 12 | CRANK PIN METAL A.SN: 10001-UP | 6 | View product ↗ | |||
| 12 | CRANK PIN METAL A.SN: 10001-UP | 6 | View product ↗ | |||
| 12 | CRANK PIN METAL A.SN: 10001-UP | 6 | View product ↗ | |||
| 12 | CRANK PIN METAL A.SN: 10001-UP | 6 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: RING,TOP | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: RING,SECOND | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: RING,OIL | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: ROD,CONNECTING | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: CAP | QTY: 1 | OPTIONS: SN: 10001-UP
STANDARD
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.25MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.50MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 0.75MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
UNDERSIZE 1.00MM
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: METAL,UPPER | QTY: 1 | OPTIONS: SN: 10001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: METAL,LOWER | QTY: 1 | OPTIONS: SN: 10001-UP
Using Komatsu WA380-3 Piston Serial 50001-52999 (OVERSEAS VERSION) Parts
Use the Komatsu WA380-3 Piston Serial 50001-52999 (OVERSEAS VERSION) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 50001-52999 (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including piston (reference 6221-31-2110), pin,piston (reference 6221-31-2410) and ring,snap (reference 04065-04518). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D108-1F-6 (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
