Komatsu WA380-3 Water Pump(#20118-) Serial 53001-UP Parts
Komatsu WA380-3 water pump(#20118-) serial 53001-up parts for machine serial 53001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D108-1F-6 S/N 10001-UP / Engine / Water Pump(#20118-).
Checking current purchase options...

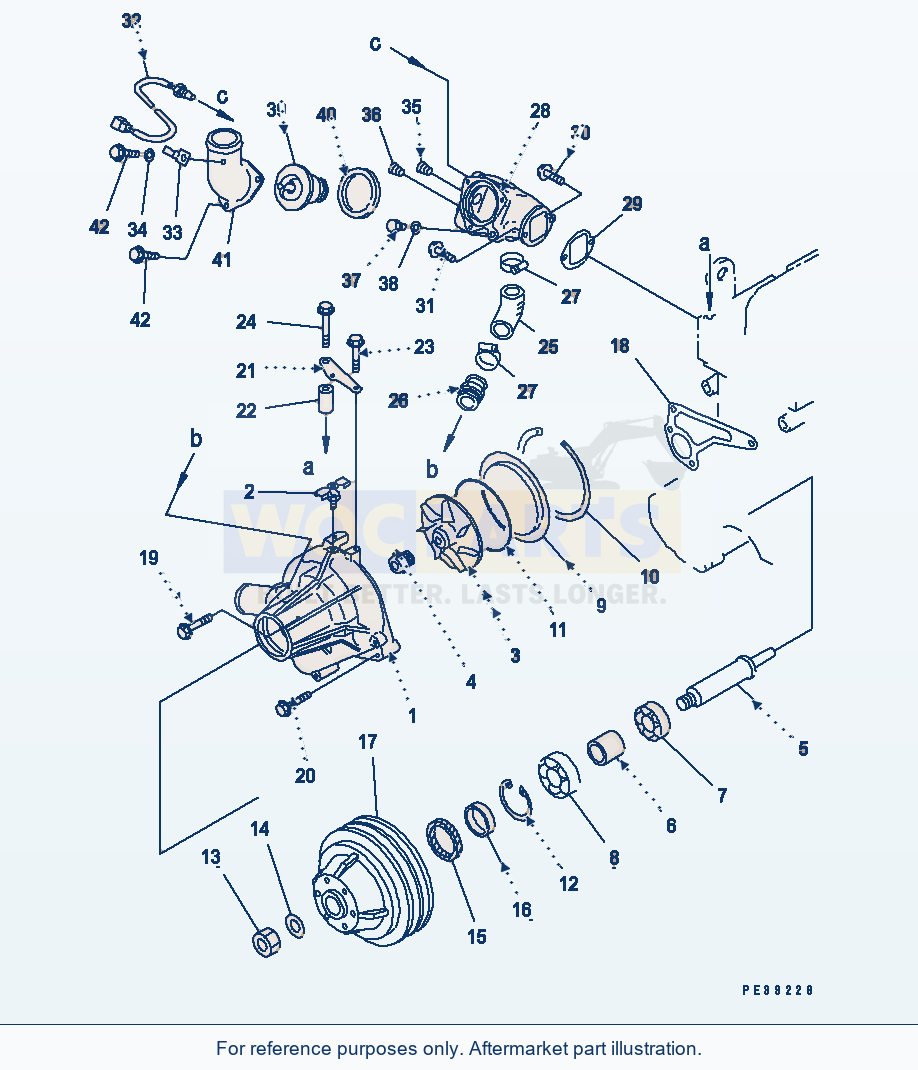

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 44 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WATER PUMP ASS'YSN: 20118-UP | 1 | Request quote | |||
| 2 | VALVESN: 20118-UP | 1 | Request quote | |||
| 3 | IMPELLERSN: 20118-UP | 1 | Request quote | |||
| 4 | SEAL, WATERSN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | SHAFTSN: 20118-UP | 1 | View product ↗ | |||
| 6 | SPACERSN: 20118-UP | 1 | Request quote | |||
| 7 | BEARING,BALLSN: 20118-UP | 1 | View product ↗ | |||
| 8 | BEARING,BALLSN: 20118-UP | 1 | View product ↗ | |||
| 9 | COVERSN: 20118-UP | 1 | Request quote | |||
| 10 | RING,SNAPSN: 20118-UP | 1 | Request quote | |||
| 11 | O-RING (K2)SN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 12 | RING,SNAPSN: 20118-UP | 1 | View product ↗ | |||
| 13 | NUTSN: 20118-UP | 1 | Request quote | |||
| 14 | WASHERSN: 20118-UP | 1 | View product ↗ | |||
| 15 | SEAL,OILSN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 16 | SLEEVESN: 20118-UP | 1 | Request quote | |||
| 17 | PULLEY,HARDENINGSN: 20118-UP | 1 | Request quote | |||
| 18 | GASKET (K2)SN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 19 | BOLTSN: 20118-UP | 1 | Request quote | |||
| 20 | BOLTSN: 20118-UP | 3 | Request quote | |||
| 21 | BRACKETSN: 20118-UP | 1 | Request quote | |||
| 22 | SPACERSN: 20118-UP | 1 | Request quote | |||
| 23 | BOLTSN: 20118-UP | 2 | Request quote | |||
| 24 | BOLTSN: 20118-UP | 1 | Request quote | |||
| 25 | HOSESN: 20118-UP | 1 | Request quote | |||
| 26 | NIPPLESN: 20118-UP | 1 | Request quote | |||
| 27 | CLAMPSN: 20118-UP | 2 | Request quote | |||
| 28 | HOUSING,THERMOSTATSN: 20118-UP | 1 | Request quote | |||
| 29 | GASKETSN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 30 | BOLTSN: 20118-UP | 1 | Request quote | |||
| 31 | BOLTSN: 20118-UP | 1 | Request quote | |||
| 32 | SENSOR,WATER TEMPERATURESN: 20118-UP | 1 | View product ↗ | |||
| 33 | CLIPSN: 20118-UP | 1 | Request quote | |||
| 34 | WASHERSN: 20118-UP | 1 | View product ↗ | |||
| 35 | PLUGSN: 24071-UP | 1 | Request quote | |||
| 35 | PLUGSN: 20118-24070 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 36 | PLUGSN: 24071-UP | 1 | Request quote | |||
| 36 | PLUGSN: 20118-24070 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 37 | PLUGSN: 20118-UP | 1 | View product ↗ | |||
| 38 | GASKET (K1)SN: 20118-UP | 1 | View product ↗ | |||
| 39 | THERMOSTATSN: 20118-UP | 1 | Request quote | |||
| 40 | GASKETSN: 20118-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 41 | CONNECTORSN: 20118-UP | 1 | Request quote | |||
| 42 | BOLTSN: 20118-UP | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: SN: 20118-UP
Using Komatsu WA380-3 Water Pump(#20118-) Serial 53001-UP Parts
Use the Komatsu WA380-3 Water Pump(#20118-) Serial 53001-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 53001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 44 listed part occurrences, including water pump ass'y (reference 6222-61-1500), valve (reference 07062-00000) and impeller (reference 6138-61-1330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D108-1F-6 (engine serial 10001-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
