Komatsu WA380-3 Air Conditioner (Air Conditioner Kit) Parts
Komatsu WA380-3 air conditioner (air conditioner kit) parts for machine serial 53001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Air Conditioner (Air Conditioner Kit).
Checking current purchase options...

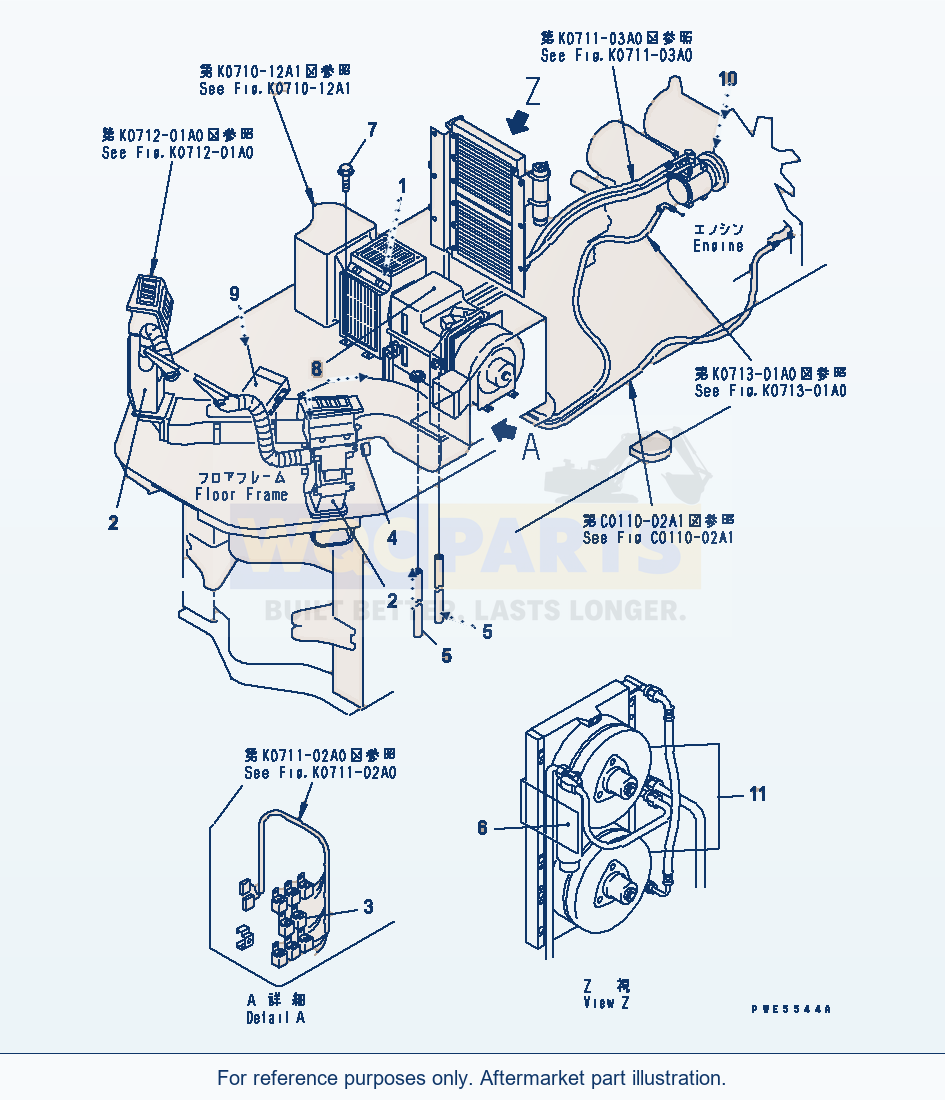

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | DAMPER ASS'YSN: 53001-UP | 1 | Request quote | |||
| 2 | DUCT ASS'Y,AIRSN: 53018-UP | 2 | Request quote | |||
| 2 | DUCT ASS'Y,AIRSN: 53001-53017 | The part specified in the line above can be used instead of this part | 2 | Request quote | |||
| 3 | RELAYSN: 53001-UP | 8 | Request quote | |||
| 4 | CAPSN: 53001-UP | 2 | Request quote | |||
| 5 | HOSESN: 53001-UP | 2 | Request quote | |||
| 6 | TANK,RECEIVERSN: 53001-UP | 1 | View product ↗ | |||
| 7 | BOLTSN: 53001-UP | 2 | Request quote | |||
| 8 | AIR CONDITIONER U.SN: 53001-UP | 1 | Request quote | |||
| 9 | CONTROLLERSN: 53001-UP | 1 | Request quote | |||
| 10 | AIR COMPRESSOR A.SN: 53018-UP | 1 | View product ↗ | |||
| 10 | AIR COMPRESSOR A.SN: 53001-53017 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 11 | CONDENSER ASS'YSN: 53001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
