Catalog configuration: Operator'S Compartment And Control System / Floor (Work Equipment Control Lever)(#54101-).
Checking current purchase options...

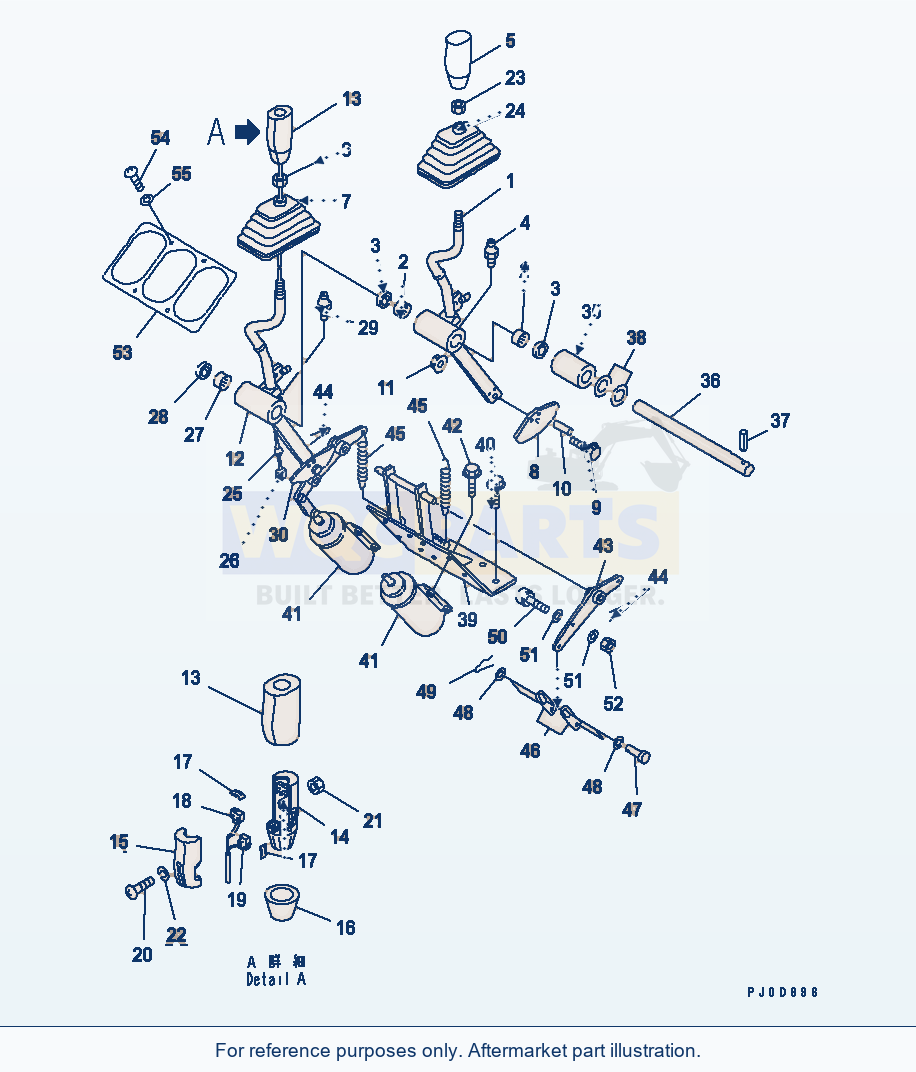

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 55 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LEVER,BRACKETSN: 54101-UP | 1 | Request quote | |||
| 2 | BEARINGSN: 54101-UP | 2 | View product ↗ | |||
| 3 | SEALSN: 54101-UP | 2 | View product ↗ | |||
| 4 | FITTING,GREASESN: 54101-UP | 1 | View product ↗ | |||
| 5 | KNOBSN: 54101-UP | 1 | Request quote | |||
| 6 | NUTSN: 54101-UP | 1 | Request quote | |||
| 7 | BOOTSN: 54101-UP | 1 | Request quote | |||
| 8 | PLATESN: 54101-UP | 1 | Request quote | |||
| 9 | BOLTSN: 54101-UP | 1 | Request quote | |||
| 10 | PINSN: 54101-UP | 2 | View product ↗ | |||
| 11 | NUTSN: 54101-UP | 1 | Request quote | |||
| 15 | LEVER ASS'Y,LIFTSN: 54101-UP | 1 | Request quote | |||
| 12 | LEVERSN: 54101-UP | 1 | Request quote | |||
| 17 | SWITCH ASS'Y,KNOBSN: 54101-UP | 1 | Request quote | |||
| 13 | COVERSN: 54101-UP | 1 | Request quote | |||
| 14 | BODYSN: 54101-UP | 1 | Request quote | |||
| 15 | CAPSN: 54101-UP | 1 | Request quote | |||
| 16 | COVERSN: 54101-UP | 1 | Request quote | |||
| 17 | SPRINGSN: 54101-UP | 1 | Request quote | |||
| 18 | SWITCH ASS'YSN: 54101-UP | 1 | Request quote | |||
| 19 | CAPSN: 54101-UP | 1 | Request quote | |||
| 20 | SCREWSN: 54101-UP | 1 | Request quote | |||
| 21 | NUTSN: 54101-UP | 1 | Request quote | |||
| 22 | WASHERSN: 54101-UP | 1 | View product ↗ | |||
| 23 | NUTSN: 54101-UP | 1 | Request quote | |||
| 24 | BOOTSN: 54101-UP | 1 | Request quote | |||
| 25 | GROMMETSN: 54101-UP | 1 | Request quote | |||
| 26 | TERMINALSN: 54101-UP | 2 | Request quote | |||
| 26 | BODYSN: 54101-UP | 1 | Request quote | |||
| 26 | HOLDER,REARSN: 54101-UP | 1 | Request quote | |||
| 27 | BEARINGSN: 54101-UP | 2 | View product ↗ | |||
| 28 | SEALSN: 54101-UP | 2 | View product ↗ | |||
| 29 | FITTING,GREASESN: 54101-UP | 1 | View product ↗ | |||
| 30 | PLATESN: 54101-UP | 1 | Request quote | |||
| 35 | SPACERSN: 54101-UP | 1 | Request quote | |||
| 36 | SHAFTSN: 54101-UP | 1 | Request quote | |||
| 37 | PINSN: 54101-UP | 1 | Request quote | |||
| 38 | SHIM, 1.0MMSN: 54101-UP | 5 | Request quote | |||
| 39 | BRACKETSN: 54101-UP | 1 | Request quote | |||
| 40 | BOLTSN: 54101-UP | 3 | Request quote | |||
| 41 | SOLENOIDSN: 54101-UP | 2 | Request quote | |||
| 42 | BOLTSN: 54101-UP | 8 | Request quote | |||
| 43 | LEVER ASS'YSN: 54101-UP | 2 | Request quote | |||
| 44 | PIN,COTTERSN: 54101-UP | 2 | Request quote | |||
| 45 | SPRINGSN: 54101-UP | 2 | Request quote | |||
| 46 | PLATESN: 54101-UP | 4 | Request quote | |||
| 47 | PINSN: 54101-UP | 4 | Request quote | |||
| 48 | WASHERSN: 54101-UP | 8 | View product ↗ | |||
| 49 | PIN,COTTERSN: 54101-UP | 4 | Request quote | |||
| 50 | BEARINGSN: 54101-UP | 2 | Request quote | |||
| 51 | WASHERSN: 54101-UP | 4 | View product ↗ | |||
| 52 | NUTSN: 54101-UP | 2 | View product ↗ | |||
| 53 | PLATESN: 54101-UP | 1 | Request quote | |||
| 54 | SCREWSN: 54101-UP | 4 | Request quote | |||
| 55 | WASHERSN: 54101-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
