Komatsu WA380-3MC Wheel Loader Steering Orbitrol Valve Parts
Komatsu WA380-3MC steering orbitrol valve parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Hydraulic System / Steering Orbitrol Valve.
Checking current purchase options...

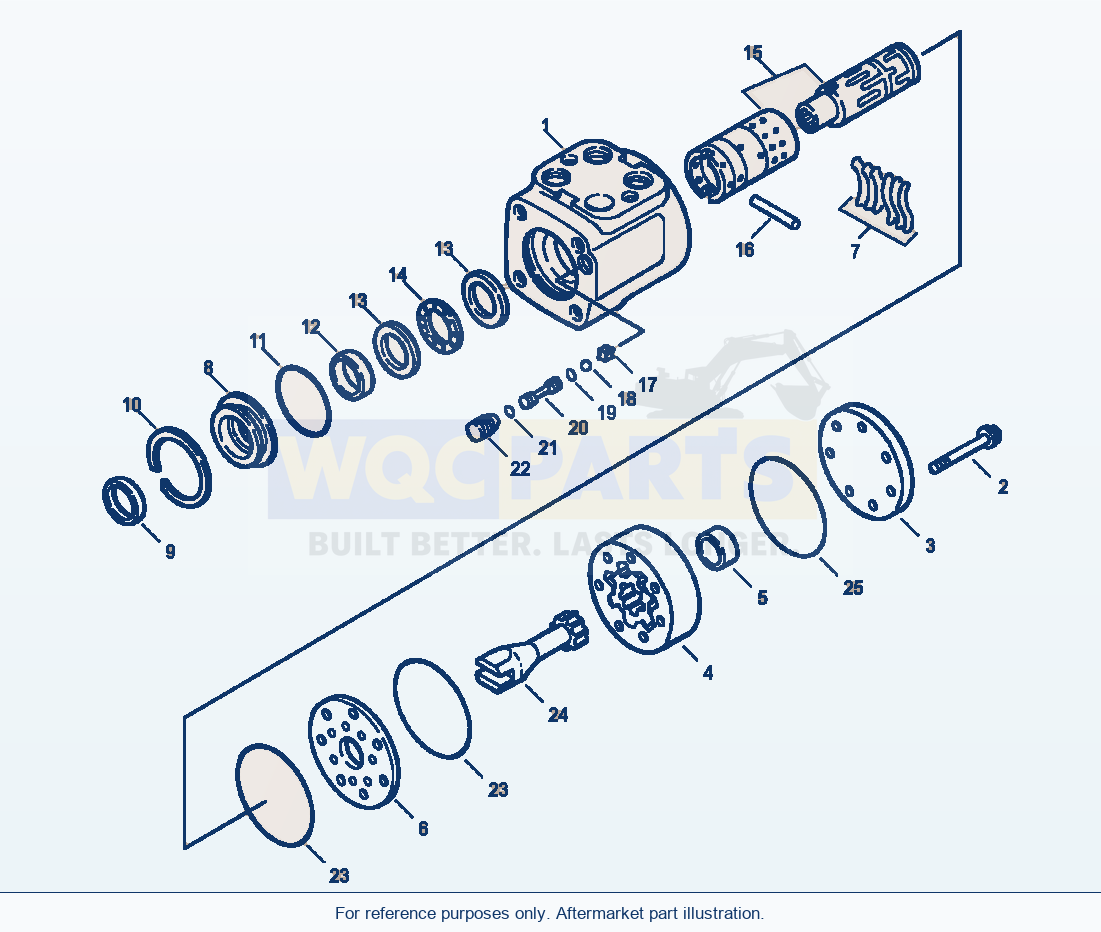

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STEERING UNIT - ORBITROL VALVE BODYSN: A51001-UP-UP | 1 | Request quote | |||
| 2 | CAPSCREWSN: A51001-UP-UP | 7 | Request quote | |||
| 3 | END CAPSN: A51001-UP-UP | 1 | Request quote | |||
| 4 | GERATORSN: A51001-UP-UP | 1 | Request quote | |||
| 5 | SPACERSN: A51001-UP-UP | 1 | Request quote | |||
| 6 | SPACER PLATESN: A51001-UP-UP | 1 | Request quote | |||
| 7 | CENTERING SPRING KITSN: A51001-UP-UP | 1 | Request quote | |||
| 8 | BUSHING, SEAL GLANDSN: A51001-UP-UP | 1 | Request quote | |||
| 9 | SEALSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 10 | RINGSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 11 | O-RINGSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 12 | SEALSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 13 | RACE, BEARINGSN: A51001-UP-UPF1 | 2 | Request quote | |||
| 14 | BEARING ASSEMBLY, NEEDLESN: A51001-UP-UPF1 | 1 | Request quote | |||
| 15 | CONTROL ASSEMBLYSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 16 | PINSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 17 | RETAINERSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 18 | BALLSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 19 | O-RINGSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 20 | SEAT, CHECKSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 21 | O-RINGSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 22 | SCREW, SETSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 23 | O-RINGSN: A51001-UP-UPF1 | 2 | Request quote | |||
| 24 | DRIVESN: A51001-UP-UPF1 | 1 | Request quote | |||
| 25 | O-RINGSN: A51001-UP-UPF1 | 3 | Request quote | |||
| 25 | SERVICE KIT, STEERING VALVESN: A51001-UP-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - INCLUDED IN STEERING VALVE SERVICE KIT.
Using Komatsu WA380-3MC Wheel Loader Steering Orbitrol Valve Parts
Use the Komatsu WA380-3MC Wheel Loader Steering Orbitrol Valve Parts listing to identify aftermarket replacement parts within the hydraulic system section. This wheel loader application is listed for machine serial A51001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including steering unit - orbitrol valve body (reference 421-64-A1102), capscrew (reference 421-64-A1161) and end cap (reference 421-64-A1230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For hydraulic replacement parts, compare the listed circuit, cylinder, valve or hose application wherever identified in the selected assembly. Retain connection and configuration notes when requesting a quote rather than relying on appearance alone.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
