Komatsu WA380-3MC Wheel Loader Marks And Plates - French Parts
Komatsu WA380-3MC marks and plates - french parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates - French.
Checking current purchase options...

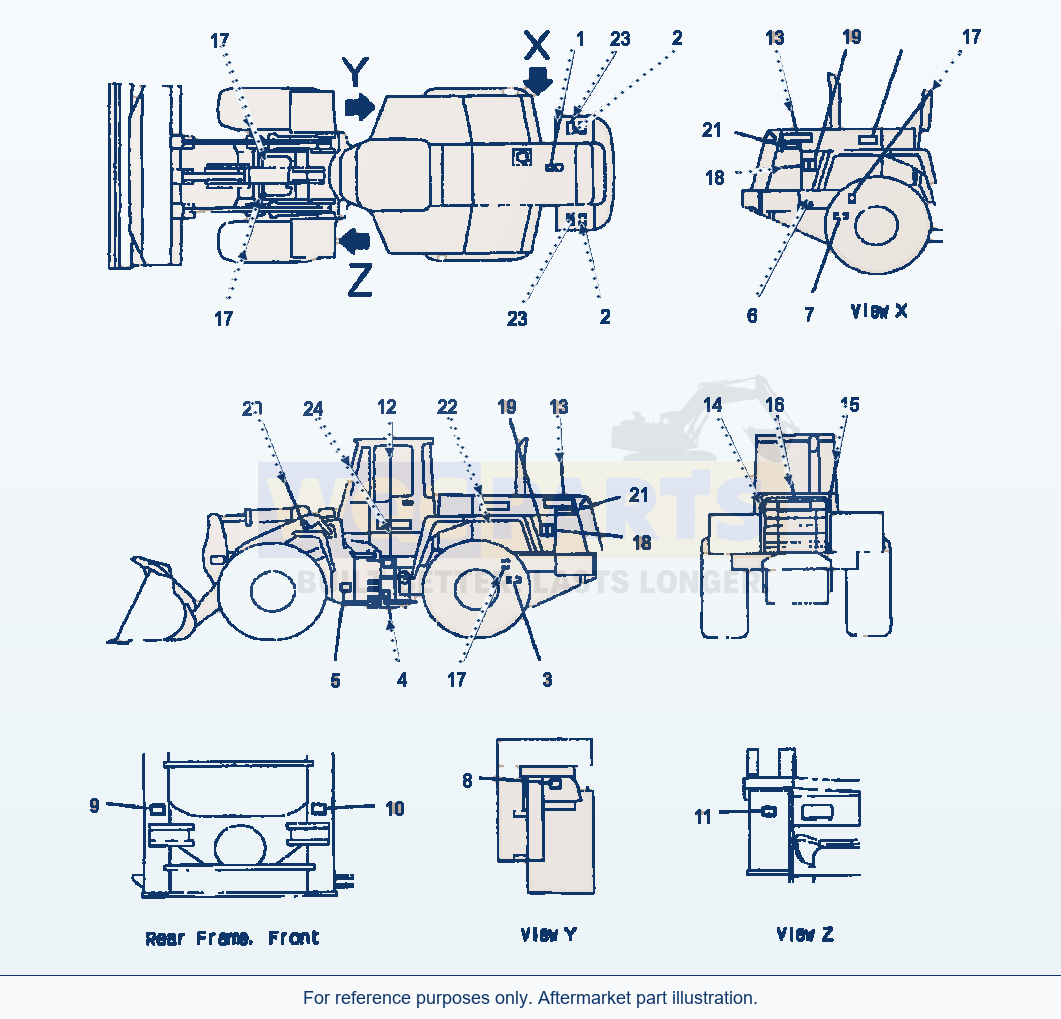

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE KITSN: A51001-UP-UP | 1 | Request quote | |||
| 1 | PLATE, SAFETY - RADIATORSN: A51001-UP-UP | 1 | Request quote | |||
| 2 | PLATE, SAFETY - BATTERY CABLESN: A51001-UP-UP | 2 | Request quote | |||
| 3 | PLATE, INSTRUCTION - RADIATOR DRAINSN: A51001-UP-UP | 1 | Request quote | |||
| 4 | PLATE, SAFETY BARSN: A51001-UP-UP | 1 | Request quote | |||
| 5 | PLATE, SAFETY - KEEP OUTSN: A51001-UP-UP | 2 | Request quote | |||
| 6 | PLATE, INSTRUCTION - FUELSN: A51001-UP-UP | 1 | Request quote | |||
| 7 | PLATE, INSTRUCTION - ENGINE OIL DRAINSN: A51001-UP-UP | 1 | Request quote | |||
| 8 | PLATE, SAFETY - HYDRAULIC TANK CAPSN: A51001-UP-UP | 1 | Request quote | |||
| 9 | PLATE, INSTRUCTION - CYLINDER BOTTOM PINSN: A51001-UP-UP | 1 | Request quote | |||
| 10 | PLATE, INSTRUCTION - REAR AXLE PIVOT PINSN: A51001-UP-UP | 1 | Request quote | |||
| 11 | PLATE, INSTRUCTION - CYLINDER BOTTOM PINSN: A51001-UP-UP | 1 | Request quote | |||
| 12 | CHART, OILSN: A51001-UP-UP | 1 | Request quote | |||
| 13 | PLATE, MARK - WA380SN: A51001-UP-UP | 2 | Request quote | |||
| 14 | PLATE, STRIPE - L.H.SN: A51001-UP-UP | 1 | Request quote | |||
| 15 | PLATE, STRIPE - R.H.SN: A51001-UP-UP | 1 | Request quote | |||
| 16 | PLATE, MARK - KOMATSUSN: A51001-UP-UP | 1 | Request quote | |||
| 17 | PLATE, MARK - HANDLINGSN: A51001-UP-UP | 4 | Request quote | |||
| 18 | PLATE, CAUTION - KEEP A SAFE DISTANCESN: A51001-UP-UP | 2 | Request quote | |||
| 19 | PLATE, SAFETY - FANSN: A51001-UP-UP | 2 | Request quote | |||
| 20 | PLATE, CAUTION - KEEP OUTSN: A51001-UP-UP | 2 | Request quote | |||
| 21 | PLATE, MARK - AVANCE LOADERSN: A51001-UP-UP | 2 | Request quote | |||
| 22 | PLATE, MARK - KOMATSUSN: A51001-UP-UP | 2 | Request quote | |||
| 23 | PLATE, SAFETY - JUMP STARTSN: A51001-UP-UP | 2 | Request quote | |||
| 24 | PLATE, KOMATSUSN: A51001-UP-UP | 2 | Request quote | |||
| N/I | PRODUCT GRAPHIC, SAFETY - ACCUMULATORSN: A51001-UP-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-3MC Wheel Loader Marks And Plates - French Parts
Use the Komatsu WA380-3MC Wheel Loader Marks And Plates - French Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A51001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including plate kit (reference 421-93-32111), plate, safety - radiator (reference NSS) and plate, safety - battery cable (reference NSS). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
