Komatsu WA380-3MC Wheel Loader Operator'S Seat Parts
Komatsu WA380-3MC operator's seat parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Operator'S Seat.
Checking current purchase options...

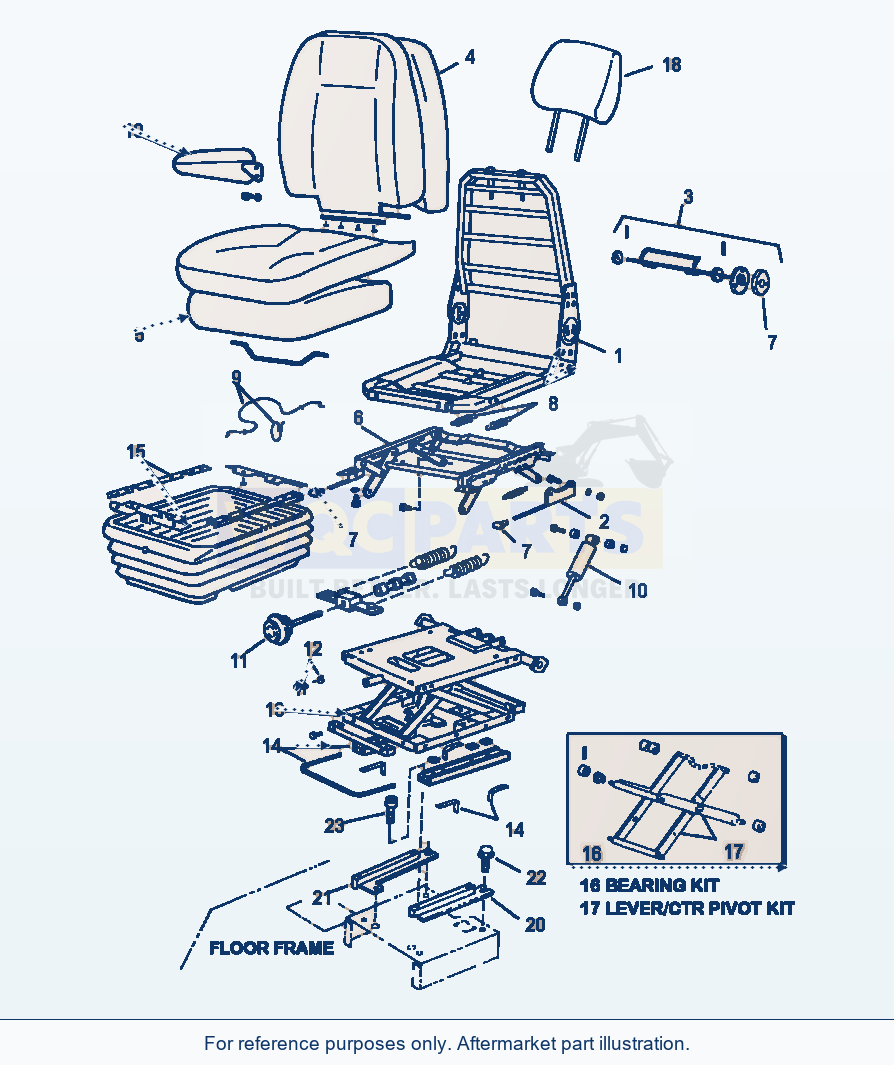

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | SEAT ASSEMBLY - 515 CLOTH COVEREDSN: A51001-UP-UPF1 | 1 | Request quote | |||
| 4 | SEAT ASSEMBLY - 515 VINYL COVEREDSN: A51001-UP-UPF2 | 1 | Request quote | |||
| 5 | KIT, UPPER ASSEMBLYSN: A51001-UP-UP | 1 | Request quote | |||
| 1 | KIT, FRAME ASSEMBLYSN: A51001-UP-UP | 1 | Request quote | |||
| 2 | KIT, HEIGHT RISER LATCHSN: A51001-UP-UP | 1 | Request quote | |||
| 3 | KIT, LUMBAR SUPPORTSN: A51001-UP-UP | 1 | Request quote | |||
| 4 | KIT, BACK FOAMSN: A51001-UP-UP | 1 | Request quote | |||
| 10 | KIT, BACK COVERSN: A51001-UP-UP | 1 | Request quote | |||
| 5 | KIT, SEAT FOAMSN: A51001-UP-UP | 1 | Request quote | |||
| 12 | KIT, SEAT COVERSN: A51001-UP-UP | 1 | Request quote | |||
| 6 | KIT, HEIGHT RISER ASSEMBLYSN: A51001-UP-UP | 1 | Request quote | |||
| 7 | KIT, HANDLESN: A51001-UP-UP | 1 | Request quote | |||
| 8 | KIT, HEIGHT RISER SPRINGSN: A51001-UP-UP | 1 | Request quote | |||
| 9 | KIT, RECLINER CABLESN: A51001-UP-UP | 1 | Request quote | |||
| 10 | KIT, DAMPERSN: A51001-UP-UP | 1 | Request quote | |||
| 11 | KIT, WEIGHT ADJUSTERSN: A51001-UP-UP | 1 | Request quote | |||
| 12 | KIT, UP STOP/BUMP STOPSN: A51001-UP-UP | 1 | Request quote | |||
| 13 | KIT, SUSPENSION ASSEMBLYSN: A51001-UP-UP | 1 | Request quote | |||
| 14 | KIT, SLIDE RAILSN: A51001-UP-UP | 1 | Request quote | |||
| 15 | KIT, SUSPENSION COVERSN: A51001-UP-UP | 1 | Request quote | |||
| 16 | KIT, BEARING - SINGLE SPRINGSN: A51001-UP-UP | 1 | Request quote | |||
| 17 | KIT, LEVER/CENTER PIVOTSN: A51001-UP-UP | 1 | Request quote | |||
| 18 | KIT, HEADRESTSN: A51001-UP-UP | 1 | Request quote | |||
| 19 | KIT, L.H. ARMRESTSN: A51001-UP-UP | 1 | Request quote | |||
| 27 | KIT, R.H. ARMRESTSN: A51001-UP-UP | 1 | Request quote | |||
| 20 | BRACKET, L.H.SN: A51001-UP-UP | 1 | Request quote | |||
| 21 | BRACKET, R.H.SN: A51001-UP-UP | 1 | Request quote | |||
| 22 | BOLTSN: A51001-UP-UP | 4 | View product ↗ | |||
| 23 | BOLTSN: A51001-UP-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
F1 - SAME AS P/N 423-960-A050 EXCEPT FOR CLOTH UPHOLSTERY.
F2 - SAME AS P/N 423-960-A030 EXCEPT FOR VINYL UPHOLSTERY.
Using Komatsu WA380-3MC Wheel Loader Operator'S Seat Parts
Use the Komatsu WA380-3MC Wheel Loader Operator'S Seat Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial A51001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including seat assembly - 515 cloth covered (reference 423-960-A030), seat assembly - 515 vinyl covered (reference 423-960-A050) and kit, upper assembly (reference 421-960-A210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
