Komatsu WA380-5-SN Head Guard Canopy (Decal) (For Tunnel Spec.) Parts
Komatsu WA380-5-SN head guard canopy (decal) (for tunnel spec.) parts for machine serial S/N 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Head Guard Canopy (Decal) (For Tunnel Spec.).
Checking current purchase options...

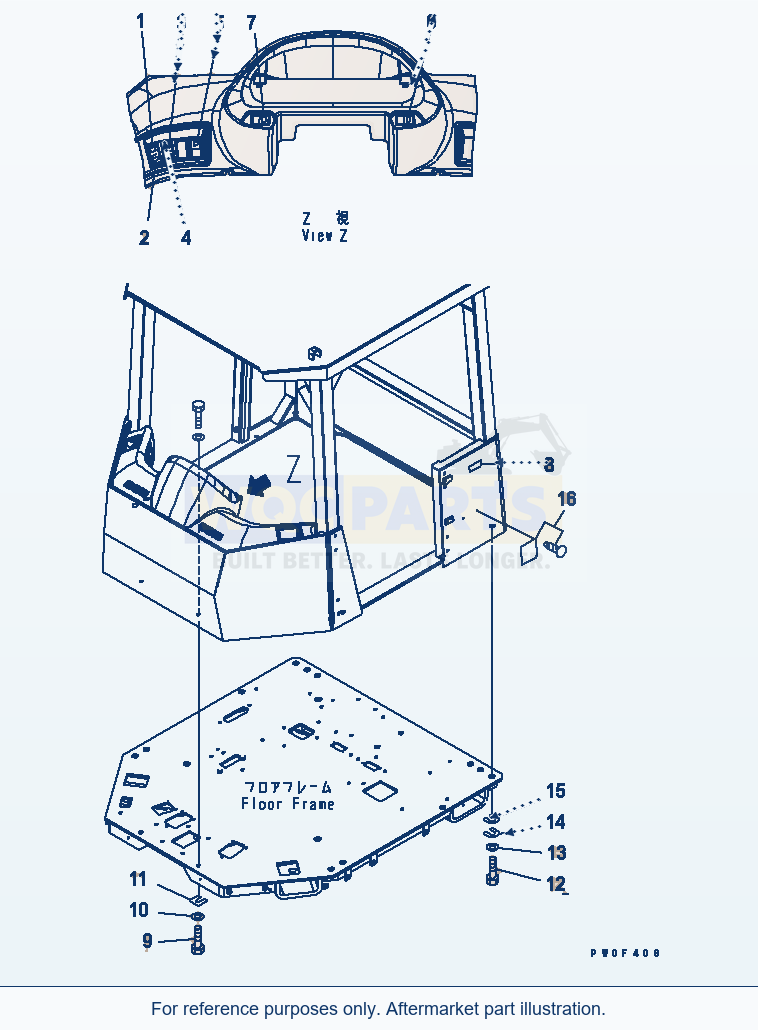

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, MARKSN: 60376-UP | 1 | Request quote | |||
| 1 | PLATE, MARKSN: 60001-60375 | 1 | Request quote | |||
| 8 | PLATE, MARKSN: 60001-UP | 2 | Request quote | |||
| 9 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 10 | WASHERSN: 60001-UP | 2 | View product ↗ | |||
| 11 | SHIM, 1.0MMSN: 60001-UP | 4 | Request quote | |||
| 12 | BOLTSN: 60001-UP | 12 | Request quote | |||
| 13 | WASHERSN: 60001-UP | 12 | View product ↗ | |||
| 14 | SHIM, 1.0MMSN: 60001-UP | 30 | Request quote | |||
| 15 | SHIM, 0.5MMSN: 60001-UP | 10 | Request quote | |||
| 16 | PLATE, SAFETYSN: 60001-UP | 1 | Request quote | |||
| 16 | RIVETSN: 60001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE, MARK,WORK LAMP, FRONT | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE, MARK,WORK LAMP, FRONT | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE, MARK,WORK LAMP, REAR | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE, MARK,WORK LAMP, REAR | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE, MARK | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE, MARK | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE, MARK,TRANSMISSION CUT OFF | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE, MARK,TRANSMISSION CUT OFF | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE, MARK,TORQUE CONVERTER LOCK-UP | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE, MARK,TORQUE CONVERTER LOCK-UP | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE, MARK,FAN REVERSE SWITCH | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE, MARK,FAN REVERSE SWITCH | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, MARK,DEFROSTER | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE, MARK,DEFROSTER | QTY: 1 | OPTIONS: SN: 60001-60375
Using Komatsu WA380-5-SN Head Guard Canopy (Decal) (For Tunnel Spec.) Parts
Use the Komatsu WA380-5-SN Head Guard Canopy (Decal) (For Tunnel Spec.) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial S/N 60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including plate, mark (reference 421-93-31215), plate, mark (reference 421-93-31214) and plate, mark (reference 09970-00230). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
