Komatsu WA380-5-TN Transmission (2Nd And 3Rd Clutch) Parts
Komatsu WA380-5-TN transmission (2nd and 3rd clutch) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Transmission (2Nd And 3Rd Clutch).
Checking current purchase options...

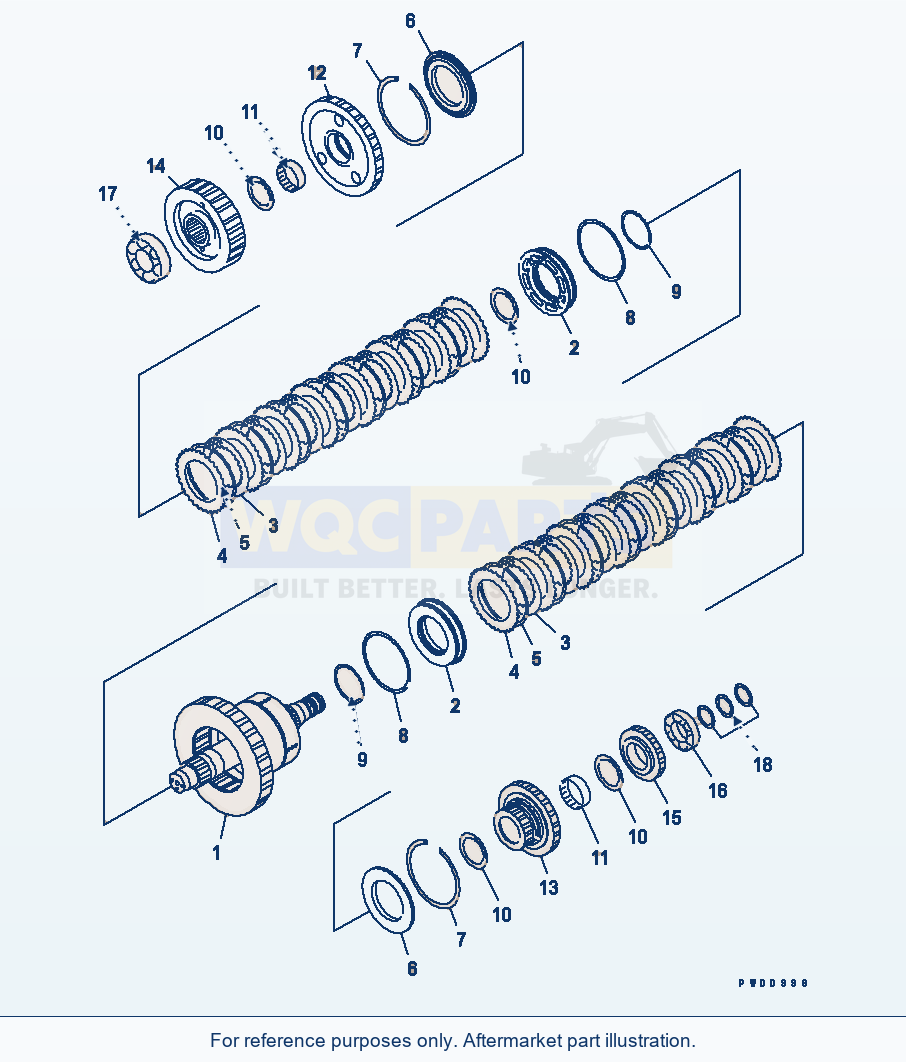

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TRANSMISSION ASS'YSN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: 60001-(10319) | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'Y,(WITH LOCK-UP)SN: 60001-(10319) | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'Y,(FOR TACHOGRAPH)SN: 60001-(10319) | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'Y,(FOR TACHOGRAPH AND LOCK-UP)SN: 60001-(10319) | 1 | Request quote | |||
| 1 | CLUTCH,2ND AND 3RDSN: 60001-UP | 1 | Request quote | |||
| 1 | SHAFT AND CYLINDER A,2ND AND 3RDSN: 60001-UP | 1 | Request quote | |||
| 2 | PISTON,RANGESN: 60001-UP | 2 | Request quote | |||
| 3 | DISCSN: 60001-UP | 14 | View product ↗ | |||
| 4 | PLATE,SEPARATESN: 60001-UP | 16 | View product ↗ | |||
| 5 | SPRING,WAVESN: 60001-UP | 14 | View product ↗ | |||
| 6 | PLATE,ENDSN: 60001-UP | 2 | Request quote | |||
| 7 | RING,SNAPSN: 60001-UP | 2 | Request quote | |||
| 8 | RINGSN: 60001-UP | 2 | View product ↗ | |||
| 9 | RING,SEAL (K1)SN: 60001-UP | 2 | View product ↗ | |||
| 10 | WASHER,THRUSTSN: 60001-UP | 4 | View product ↗ | |||
| 11 | BEARING,NEEDLESN: 60001-UP | 2 | View product ↗ | |||
| 12 | GEAR, 53 TEETH,2NDSN: 60001-UP | 1 | Request quote | |||
| 13 | GEAR, 40 TEETH,3RDSN: 60001-UP | 1 | Request quote | |||
| 14 | GEAR, 49 TEETH,OUTPUTSN: 60001-UP | 1 | Request quote | |||
| 15 | GEAR, 28 TEETH,4THSN: 60001-UP | 1 | Request quote | |||
| 16 | BEARINGSN: 60001-UP | 1 | Request quote | |||
| 17 | BEARINGSN: 60001-UP | 1 | View product ↗ | |||
| 18 | RING (K1)SN: 60001-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: SHAFT,LOWER | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: ORIFICE | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BALL | QTY: 2 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: HOUSING | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: ORIFICE | QTY: 1 | OPTIONS: SN: 60001-UP
Using Komatsu WA380-5-TN Transmission (2Nd And 3Rd Clutch) Parts
Use the Komatsu WA380-5-TN Transmission (2Nd And 3Rd Clutch) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including transmission ass'y (reference 714-12-20001), transmission ass'y (reference 714-12-20000) and transmission ass'y (reference 714-12-20011). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
