Komatsu WA380-5-TN Wheel Loader Transmission Main Valve Parts
Komatsu WA380-5-TN transmission main valve parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Transmission Main Valve.
Checking current purchase options...

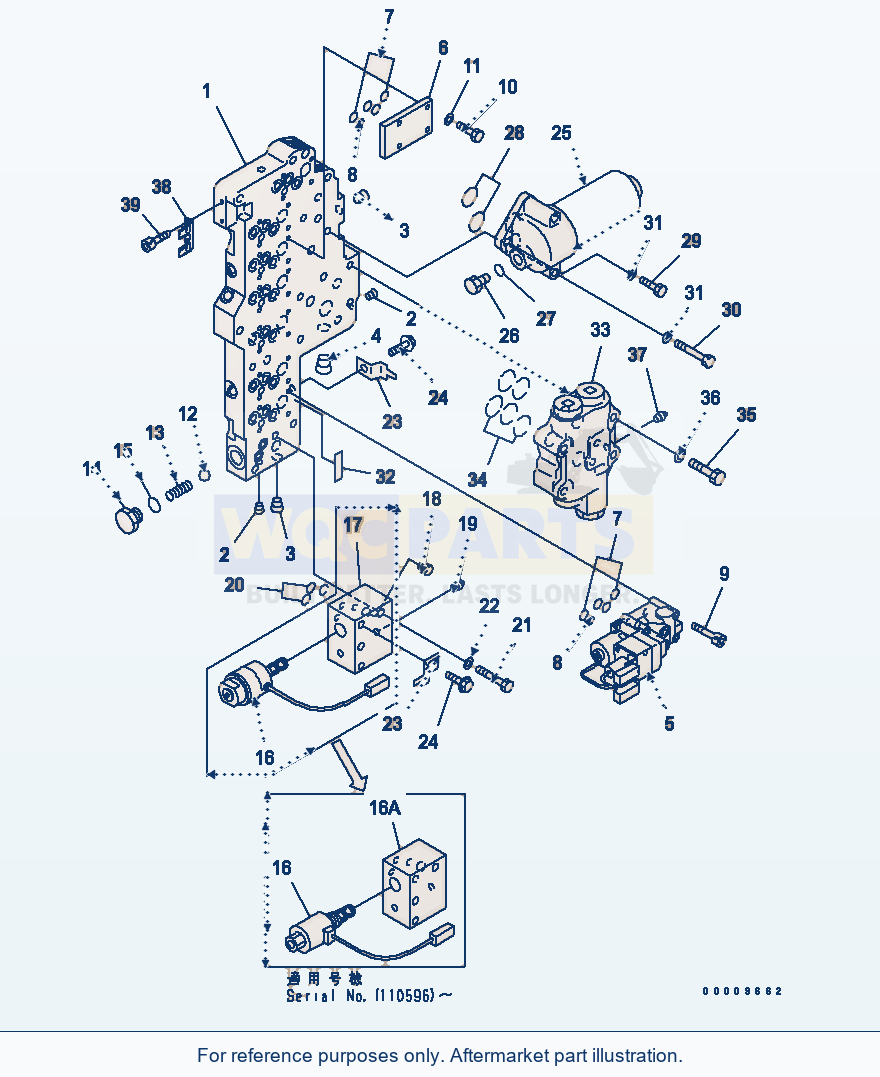

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 52 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TRANSMISSION ASS'YSN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'YSN: 60001-(10319) | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'Y,(FOR TACHOGRAPH)SN: (10320)-UP | 1 | Request quote | |||
| 1 | TRANSMISSION ASS'Y,(FOR TACHOGRAPH)SN: 60001-(10319) | 1 | Request quote | |||
| 1 | VALVE ASS'Y,MAINSN: 60001-UP | 1 | Request quote | |||
| 1 | VALVE ASS'Y,MAINSN: (60001-(110639)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 1 | VALVE SEATSN: 60001-UP | 1 | Request quote | |||
| 2 | PLUGSN: 60001-UP | 3 | View product ↗ | |||
| 3 | PLUGSN: 60001-UP | 15 | View product ↗ | |||
| 4 | PLUGSN: 60001-UP | 2 | View product ↗ | |||
| 5 | ECMV ASS'YSN: (10143)-UP | 6 | Request quote | |||
| 5 | ECMV ASS'YSN: 60001-(10142) | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 6 | COVERSN: 60001-UP | 1 | Request quote | |||
| 7 | O-RING (K2)SN: 60001-UP | 28 | Request quote | |||
| 8 | O-RING (K2)SN: 60001-UP | 7 | View product ↗ | |||
| 9 | BOLTSN: 60001-UP | 24 | Request quote | |||
| 10 | BOLTSN: 60001-UP | 4 | Request quote | |||
| 11 | WASHERSN: 60001-UP | 4 | View product ↗ | |||
| 12 | BALLSN: 60001-UP | 1 | View product ↗ | |||
| 13 | SPRINGSN: 60001-UP | 1 | Request quote | |||
| 14 | PLUGSN: 60001-UP | 1 | Request quote | |||
| 15 | O-RING (K2)SN: 60001-UP | 1 | View product ↗ | |||
| 16 | SOLENOID VALVE ASS'YSN: (110596)-UP | 1 | Request quote | |||
| 16 | SOLENOID VALVESN: ((110596)-(110639)16 | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 16 | SOLENOID VALVE ASS'YSN: 60001-(110595) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 16 | SOLENOID VALVESN: (110640)-UP | 1 | Request quote | |||
| 17 | BLOCKSN: (60001-(110639)) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 18 | PLUGSN: 60001-UP | 1 | View product ↗ | |||
| 19 | PLUGSN: 60001-UP | 1 | Request quote | |||
| 20 | O-RING (K2)SN: 60001-UP | 3 | Request quote | |||
| 21 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 22 | WASHERSN: 60001-UP | 1 | View product ↗ | |||
| 23 | CLIPSN: 60001-UP | 2 | View product ↗ | |||
| 24 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 25 | FILTERSN: 60001-UP | 1 | Request quote | |||
| 25 | ELEMENT ASS'YSN: 60001-UP | 1 | Request quote | |||
| 25 | O-RINGSN: 60001-UP | 1 | View product ↗ | |||
| 26 | PLUGSN: 60001-UP | 1 | Request quote | |||
| 27 | O-RING (K2)SN: 60001-UP | 1 | View product ↗ | |||
| 28 | O-RING (K2)SN: 60001-UP | 2 | View product ↗ | |||
| 29 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 30 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 31 | WASHERSN: 60001-UP | 2 | View product ↗ | |||
| 32 | PLATE, NAMESN: 60001-UP | 1 | Request quote | |||
| 33 | VALVE ASS'Y,MODULATIONSN: (10320)-UP | 1 | Request quote | |||
| 33 | VALVE ASS'Y,MODULATIONSN: 60001-(10319) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 34 | O-RING (K2)SN: 60001-UP | 5 | View product ↗ | |||
| 35 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 36 | WASHERSN: 60001-UP | 2 | View product ↗ | |||
| 37 | PLUGSN: 60001-UP | 1 | View product ↗ | |||
| 38 | BRACKETSN: 60001-UP | 1 | Request quote | |||
| 39 | BOLTSN: 60001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4350-59A0 AND F4350-60A0.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16A | Description: BLOCK | QTY: 1 | OPTIONS: SN: (110640)-UP
