Komatsu WA380-5 Rear Axle (Final Drive) Serial H50051 - UP Parts

Komatsu WA380-5 rear axle (final drive) serial h50051 - up parts for machine serial H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: F0 Transmission / Rear Axle (Final Drive).

WA380-5Machine serial H50051 - UP34 part occurrences

Checking current purchase options...

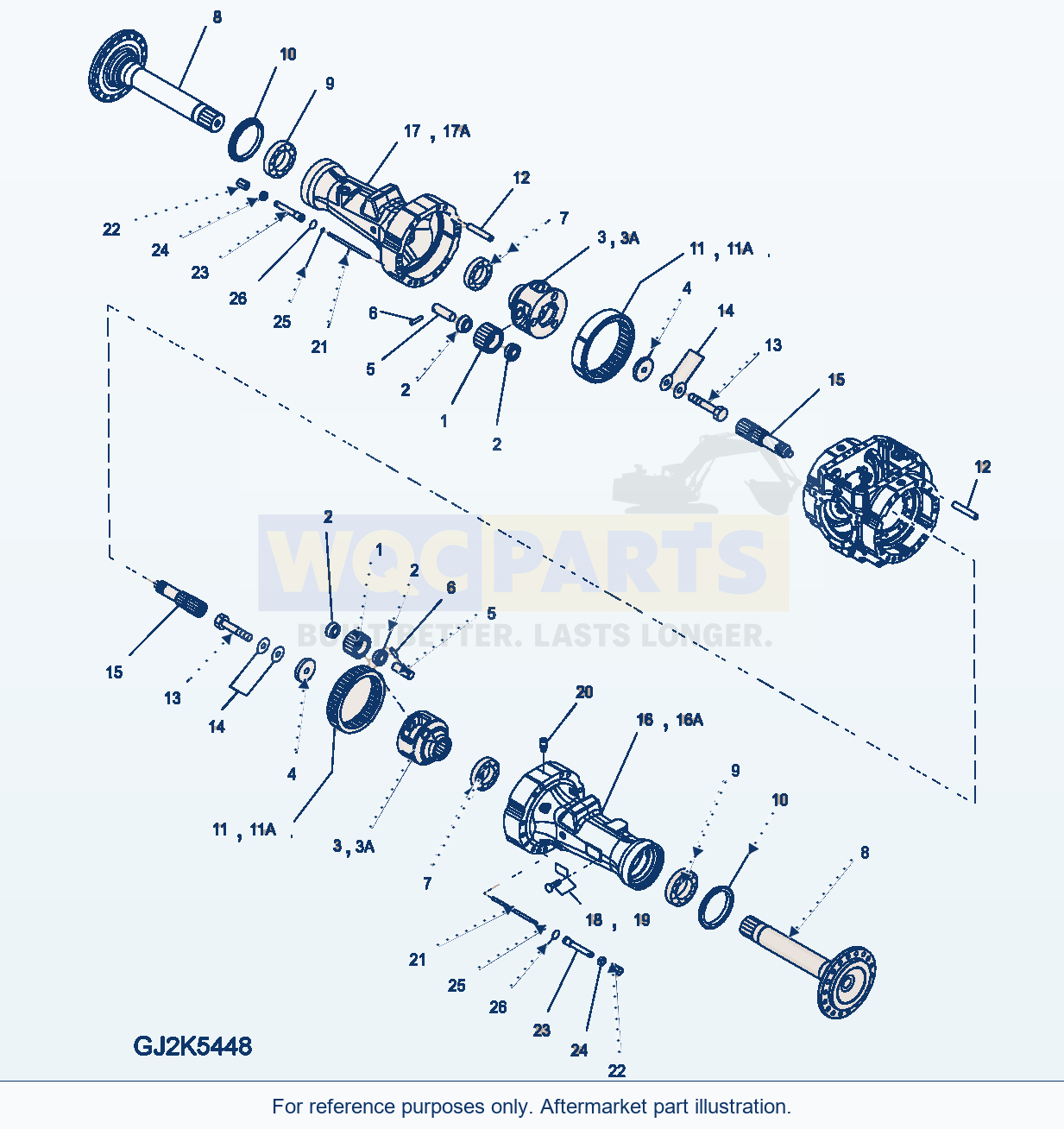

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 34 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	AXLE ASSEMBLY (STD)SN: H50051-UP	1	Request quote
2	AXLE ASSEMBLY (LSD)SN: H50051-UP	1	Request quote
3	FINAL DRIVE ASSEMBLYSN: H50051-UP	1	Request quote
1	GEARSN: H50051-UP	6	Request quote
2	BEARINGSN: H50051-UP	12	Request quote
3	CARRIERSN: H50051-UP	2	Request quote
3A	CARRIERSN: H50051-UP	2	Request quote
4	WASHERSN: H50051-UP	2	Request quote
5	SHAFTSN: H50051-UP	6	Request quote
6	PINSN: H50051-UP	6	View product ↗
7	BEARINGSN: H50051-UP	2	View product ↗
8	SHAFTSN: H50051-UP	2	Request quote
9	BEARINGSN: H50051-UP	2	Request quote
10	SEALSN: H50051-UP	2	View product ↗
11	GEARSN: H50051-UP	2	Request quote
11A	GEARSN: H50051-UP	2	Request quote
12	PINSN: H50051-UP	8	Request quote
13	BOLTSN: H50051-UP	2	Request quote
14	SHIM, 0.05MMSN: H50051-UP	4	Request quote
20	SHIM, 0.2MMSN: H50051-UP	4	Request quote
21	SHIM, 0.5MMSN: H50051-UP	4	Request quote
15	SHAFTSN: H50051-UP	2	Request quote
16	HOUSINGSN: H50051-UP	1	Request quote
16A	HOUSINGSN: H50051-UP	1	Request quote
17	HOUSINGSN: H50051-UP	1	Request quote
17A	HOUSINGSN: H50051-UP	1	Request quote
19	SCREWSN: H50051-UP	4	Request quote
20	BREATHERSN: H50051-UP	1	View product ↗
21	SHAFTSN: H50051-UP	2	Request quote
22	CAPSN: H50051-UP	2	Request quote
23	GUIDESN: H50051-UP	2	Request quote
24	NUTSN: H50051-UP	2	Request quote
25	O-RINGSN: H50051-UP	2	View product ↗
26	O-RINGSN: H50051-UP	2	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 18 | Description: PLATE, NAME | QTY: 1 | OPTIONS: SN: H50051-UP

Catalog sitemap

Using Komatsu WA380-5 Rear Axle (Final Drive) Serial H50051 - UP Parts

Use the Komatsu WA380-5 Rear Axle (Final Drive) Serial H50051 - UP Parts listing to identify aftermarket replacement parts within the f0 transmission section. This wheel loader application is listed for machine serial H50051 - UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 34 listed part occurrences, including axle assembly (std) (reference 423-23-30001), axle assembly (lsd) (reference 423-23-30051) and final drive assembly (reference 423-23-32000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
