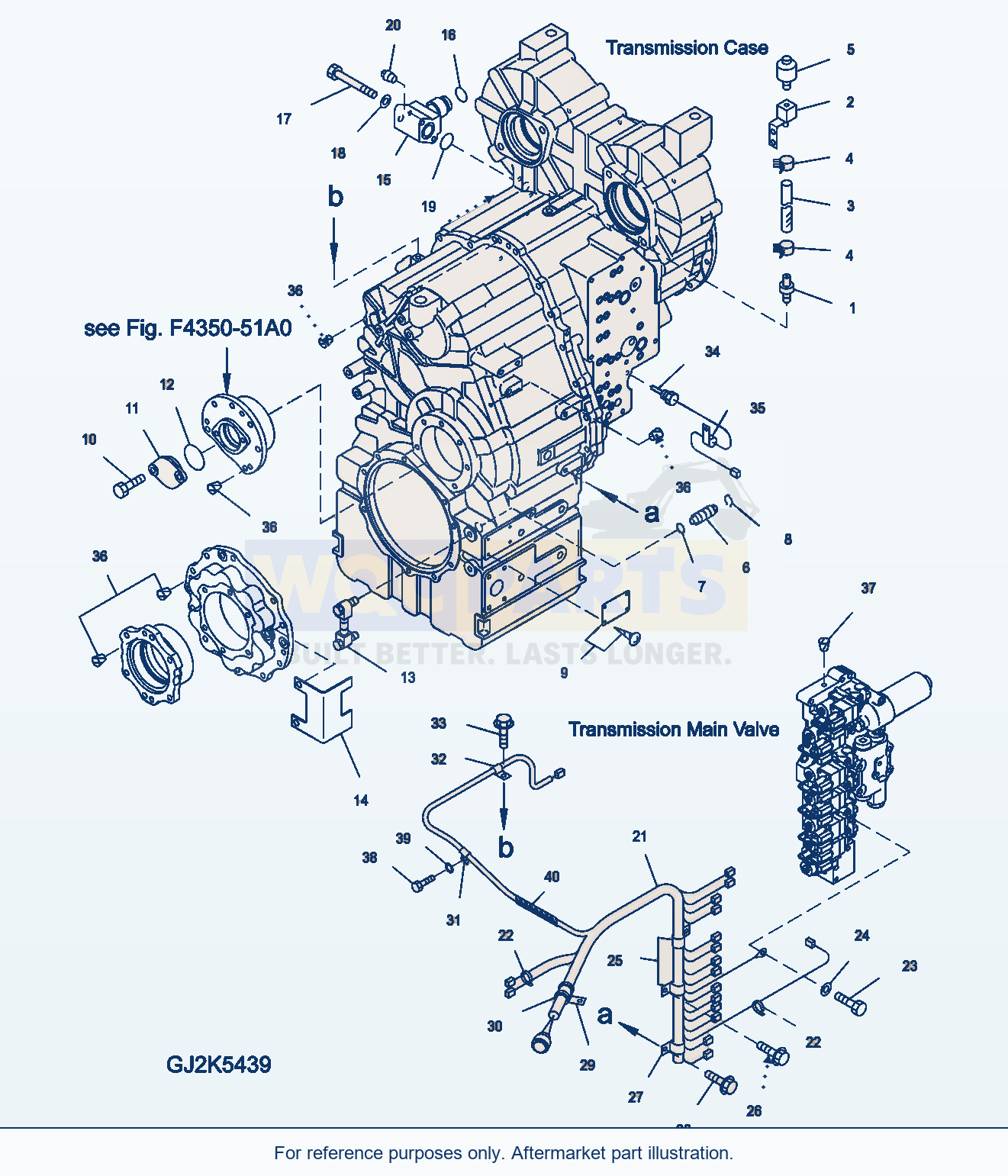

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 44 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | NIPPLESN: H50051-UP | 1 | Request quote | |||
| 2 | BLOCKSN: H50051-UP | 1 | Request quote | |||
| 3 | HOSESN: H50051-UP | 1 | View product ↗ | |||
| 4 | CLIPSN: H50051-UP | 2 | Request quote | |||
| 5 | BREATHERSN: H50051-UP | 1 | View product ↗ | |||
| 6 | PLUGSN: H50051-UP | 1 | Request quote | |||
| 7 | O-RINGSN: H50051-UP | 1 | View product ↗ | |||
| 8 | RINGSN: H50051-UP | 1 | Request quote | |||
| 9 | PLATE, NAMESN: H50051-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 10 | SCREWSN: H50051-UP | 4 | Request quote | |||
| 10 | COVERSN: H50051-UP | 1 | Request quote | |||
| 11 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 12 | O-RINGSN: H50051-UP | 1 | Request quote | |||
| 13 | GAUGE ASSEMBLYSN: H50051-UP | 1 | Request quote | |||
| 14 | COVERSN: H50051-UP | 1 | Request quote | |||
| 15 | TUBESN: H50051-UP | 1 | Request quote | |||
| 16 | O-RINGSN: H50051-UP | 1 | View product ↗ | |||
| 17 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 18 | WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 19 | O-RINGSN: H50051-UP | 1 | View product ↗ | |||
| 20 | PLUGSN: H50051-UP | 1 | Request quote | |||
| 21 | WIRING HARNESS, FOR STDSN: H50051-UP | 1 | Request quote | |||
| 21 | WIRING HARNESS, FOR STDSN: H50051-UP | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 21 | WIRING HARNESS, FOR LOCK-UPSN: H50051-UP | 1 | Request quote | |||
| 21 | WIRING HARNESS, FOR LOCK-UPSN: H50051-UP | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 22 | BANDSN: H50051-UP | 2 | View product ↗ | |||
| 23 | BOLTSN: H50051-UP | 1 | Request quote | |||
| 24 | WASHERSN: H50051-UP | 1 | View product ↗ | |||
| 25 | CLIPSN: H50051-UP | 2 | View product ↗ | |||
| 26 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 27 | CLIPSN: H50051-UP | 1 | Request quote | |||
| 28 | BOLTSN: H50051-UP | 1 | Request quote | |||
| 29 | CLIPSN: H50051-UP | 1 | Request quote | |||
| 30 | CUSHIONSN: H50051-UP | 1 | Request quote | |||
| 31 | CLIPSN: H50051-UP | 1 | View product ↗ | |||
| 32 | CLIPSN: H50051-UP | 1 | Request quote | |||
| 33 | BOLTSN: H50051-UP | 1 | Request quote | |||
| 34 | SENSORSN: H50051-UP | 1 | View product ↗ | |||
| 35 | CLIPSN: H50051-UP | 1 | Request quote | |||
| 36 | PLUGSN: H50051-UP | 9 | View product ↗ | |||
| 37 | PLUGSN: H50051-UP | 1 | View product ↗ | |||
| 38 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 39 | WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 40 | SPIRAL TUBESN: H50051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
