Komatsu WA380-5 Marks And Plates (For Remote Grease) Parts
Komatsu WA380-5 marks and plates (for remote grease) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (For Remote Grease).
Checking current purchase options...

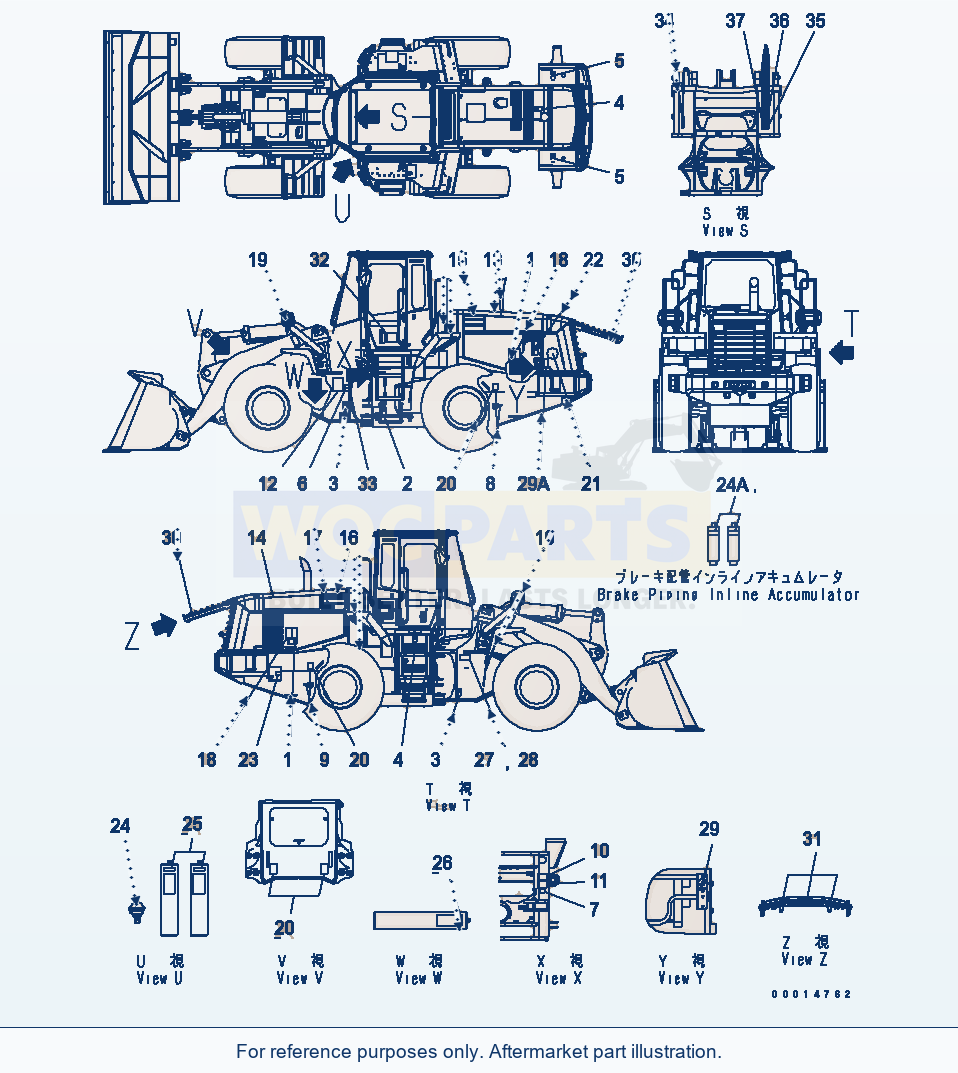

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE KITSN: 60001-UP | 1 | Request quote | |||
| 6 | PLATESN: 60001-UP | 1 | Request quote | |||
| 12 | OIL CHARTSN: 60001-UP | 1 | Request quote | |||
| 13 | PLATE, MARK,WA380 (L.H.)SN: 60001-UP | 1 | Request quote | |||
| 14 | PLATE, MARK,WA380 (R.H.)SN: 60001-UP | 1 | Request quote | |||
| 15 | PLATE,L.H.SN: 60001-UP | 1 | Request quote | |||
| 16 | PLATE,R.H.SN: 60001-UP | 1 | Request quote | |||
| 17 | PLATESN: 60001-UP | 1 | Request quote | |||
| 18 | PLATE, SAFETY,KEEP A SAFE DISTANCESN: 60001-UP | 2 | Request quote | |||
| 19 | PLATE, SAFETY,KEEP OUTSN: 60001-UP | 2 | Request quote | |||
| 20 | PLATE, MARK,HANDLINGSN: 60001-UP | 4 | Request quote | |||
| 21 | PLATE,EXHAUST GAS COUNTERPLANSN: 60055-UP | 1 | Request quote | |||
| 21 | PLATE,EMISSION CERTIFICATIONSN: 60001-60054 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 22 | PLATE, OPERATING,AFTER COOLER ROCKSN: 60001-UP | 1 | Request quote | |||
| 23 | PLATE, CAUTIONSN: 60221-UP | 1 | Request quote | |||
| 23 | PLATESN: 60001-60220 | 1 | Request quote | |||
| 24 | PLATE, SAFETY,PPC ACCUMULATORSN: 60001-UP | 1 | Request quote | |||
| 24A | PLATE, SAFETYSN: 60001-UP | 2 | Request quote | |||
| 25 | PLATE, SAFETY,BRAKE ACCUMULATORSN: 60001-UP | 2 | Request quote | |||
| 26 | PLATE, SAFETY,ECSS ACCUMULATORSN: 60001-UP | 1 | Request quote | |||
| 27 | PLATE, NAME,(LIMITED SUPPLY)SN: 60346-UP | 1 | Request quote | |||
| 27 | PLATE, NAME,(LIMITED SUPPLY)SN: 60001-60345 | 1 | Request quote | |||
| 28 | SCREWSN: 60001-UP | 4 | Request quote | |||
| 29 | PLATE, OPERATINGSN: 60001-UP | 1 | Request quote | |||
| 29A | PLATE, SAFETYSN: 60001-UP | 1 | Request quote | |||
| 30 | PLATE, CAUTION,GRILL SIDESN: 60001-UP | 2 | Request quote | |||
| 31 | PLATE, CAUTION,GRILL BOTTOMSN: 60001-UP | 3 | Request quote | |||
| 32 | MARK,(FOR JAPAN)SN: 60001-UP | 1 | Request quote | |||
| 33 | PLATE,REMOTE GREASESN: 60001-UP | 1 | Request quote | |||
| 34 | PLATESN: 60001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
