Komatsu WA380-5 Operator'S Seat (Air Suspension) (Kab) Parts
Komatsu WA380-5 operator's seat (air suspension) (kab) parts for machine serial 60001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Operator'S Seat (Air Suspension) (Kab).
Checking current purchase options...

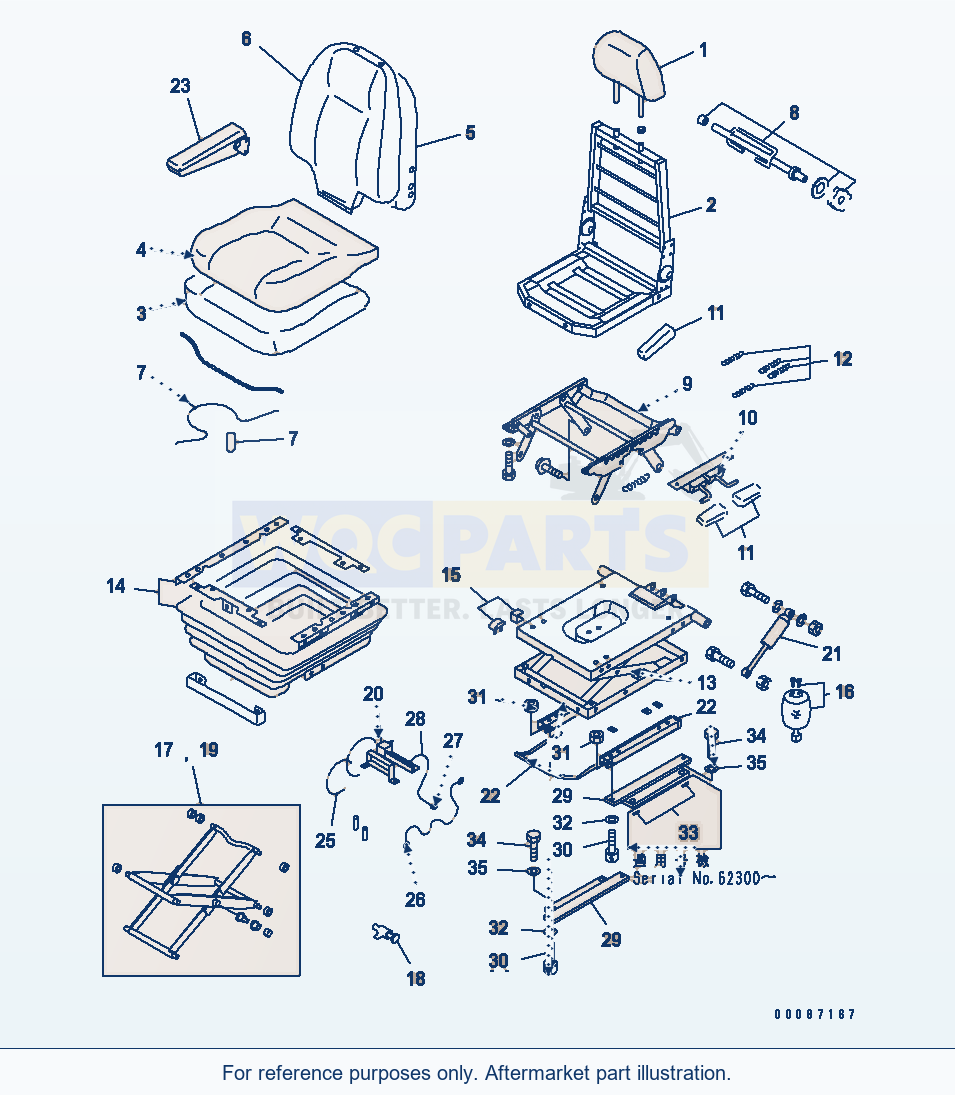

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SEAT ASS'YSN: 60001-UP | 1 | Request quote | |||
| 1 | RESTSN: 60001-UP | 1 | Request quote | |||
| 2 | FRAME KITSN: 60001-UP | 1 | Request quote | |||
| 3 | SEAT FOAM KITSN: 60001-UP | 1 | Request quote | |||
| 4 | SEAT COVER KITSN: 60001-UP | 1 | Request quote | |||
| 5 | BACK FOAM KITSN: 60001-UP | 1 | Request quote | |||
| 6 | BACK COVER KITSN: 60001-UP | 1 | Request quote | |||
| 7 | CABLE KITSN: 60001-UP | 1 | Request quote | |||
| 8 | SUPPORT KITSN: 60001-UP | 1 | Request quote | |||
| 9 | HEIGHT RISER KITSN: 60001-UP | 1 | Request quote | |||
| 10 | HI RISER LATCH KITSN: 60001-UP | 1 | Request quote | |||
| 11 | HANDLE KITSN: 60001-UP | 1 | Request quote | |||
| 12 | HI RISER SPRING KITSN: 60001-UP | 1 | Request quote | |||
| 13 | SUSPENSION ASS'YSN: 60001-UP | 1 | Request quote | |||
| 14 | SUSPENSION COVER KITSN: 60001-UP | 1 | Request quote | |||
| 15 | UP STOP/BUMP STOP K.SN: 60001-UP | 1 | Request quote | |||
| 16 | AIR SPRING KITSN: 60001-UP | 1 | Request quote | |||
| 17 | BEARING KITSN: 60001-UP | 1 | Request quote | |||
| 18 | VALVE KITSN: 60001-UP | 1 | Request quote | |||
| 19 | LEVER/CENTRE PIVOTSN: 60001-UP | 1 | Request quote | |||
| 20 | COMPRESSOR KITSN: 60001-UP | 1 | Request quote | |||
| 21 | DAMPER KITSN: 60001-UP | 1 | Request quote | |||
| 22 | ADJUSTER KITSN: 60001-UP | 1 | Request quote | |||
| 23 | ARM REST KIT,L.H.SN: 60001-UP | 1 | Request quote | |||
| 23 | ARM REST KIT,R.H.SN: 60001-UP | 1 | Request quote | |||
| 24 | SUSPENSION COVER KIT,NOT SHOWNSN: 60001-UP | 1 | Request quote | |||
| 25 | AIR PIPING KITSN: 60001-UP | 1 | Request quote | |||
| 26 | LEADSN: 60001-UP | 1 | Request quote | |||
| 27 | CONNECTORSN: 60001-UP | 1 | Request quote | |||
| 28 | CONDUITSN: 60001-UP | 1 | Request quote | |||
| 29 | BRACKETSN: 60001-UP | 2 | Request quote | |||
| 30 | BOLTSN: 60001-UP | 4 | Request quote | |||
| 31 | NUTSN: 60001-UP | 4 | Request quote | |||
| 32 | WASHERSN: 60001-UP | 4 | View product ↗ | |||
| 33 | SHIM, 0.50MMSN: 62300-UP | 8 | Request quote | |||
| 34 | BOLTSN: 62236-UP | 4 | Request quote | |||
| 34 | BOLTSN: 60001-62235 | 4 | Request quote | |||
| 35 | WASHERSN: 60001-UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-5 Operator'S Seat (Air Suspension) (Kab) Parts
Use the Komatsu WA380-5 Operator'S Seat (Air Suspension) (Kab) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 60001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including seat ass'y (reference 421-57-31220), rest (reference AS182326) and frame kit (reference AS181680). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
