Komatsu WA380-5 Rops Cab (Door Sash And Lock, L.H.) Parts
Komatsu WA380-5 rops cab (door sash and lock, l.h.) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Door Sash And Lock, L.H.).
Checking current purchase options...

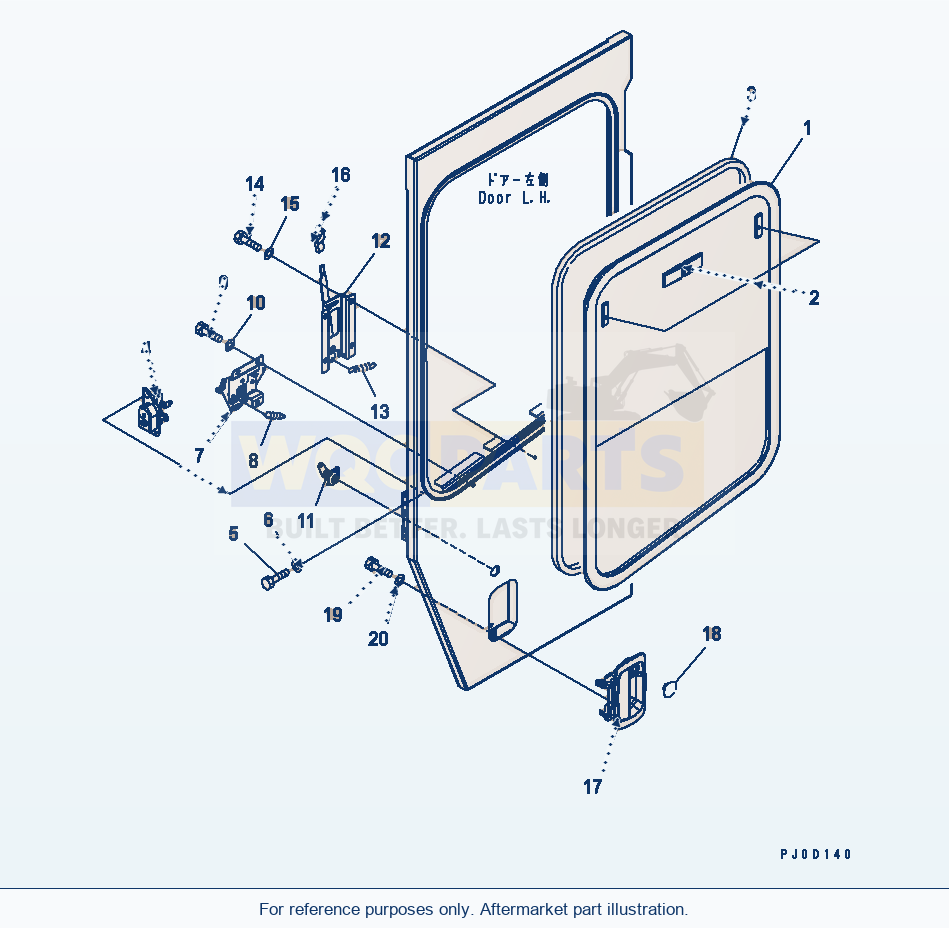

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 65 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ROPS CAB ASS'Y,(A+B+C+E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+G)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+J+C)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'YSN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D+E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+C+D+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+H)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+E)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(E+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+E+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+E+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+D+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+H+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+E+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+H+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+E+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(E+J+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+E+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+J+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+E+J+L)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D+E+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+C+D+F+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+D+F+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(E+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+E+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | DOOR ASS'YSN: 60377-UP | 1 | Request quote | |||
| 1 | DOOR ASS'YSN: 60001-60376 | 1 | Request quote | |||
| 1 | SASH ASS'Y,L.H.SN: 60001-UP | 1 | Request quote | |||
| 2 | LOCK ASS'YSN: 60001-UP | 1 | Request quote | |||
| 3 | DAMSN: 60001-UP | 1 | Request quote | |||
| 4 | LOCKSN: 60001-UP | 1 | Request quote | |||
| 5 | BOLTSN: 60001-UP | 3 | Request quote | |||
| 6 | WASHERSN: 60001-UP | 3 | View product ↗ | |||
| 7 | CONTROL ASS'Y,L.H.SN: 60377-UP | 1 | Request quote | |||
| 7 | CONTROL ASS'Y,L.H.SN: 60001-60376 | 1 | Request quote | |||
| 8 | SPRINGSN: 60001-UP | 1 | Request quote | |||
| 9 | BOLTSN: 60001-UP | 3 | View product ↗ | |||
| 10 | WASHERSN: 60001-UP | 3 | View product ↗ | |||
| 11 | LOCK ASS'YSN: 60001-UP | 1 | Request quote | |||
| 12 | HANDLE,L.H.SN: 60001-UP | 1 | Request quote | |||
| 13 | SPRINGSN: 60001-UP | 1 | Request quote | |||
| 14 | BOLTSN: 60001-UP | 4 | View product ↗ | |||
| 15 | WASHERSN: 60001-UP | 4 | View product ↗ | |||
| 16 | KNOBSN: 60001-UP | 1 | Request quote | |||
| 17 | HANDLE,L.H.SN: 60001-UP | 1 | Request quote | |||
| 18 | CAPSN: 60001-UP | 1 | Request quote | |||
| 19 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 20 | WASHERSN: 60001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
A = AIR CONDITIONER
B = AM, FM RADIO
C = E.C.S.S
D = KOMTRAX
E = LOAD METER
F = YELLOW LAMP
G = HEAT GLASS
H = A/C SIDE BLOW
J = RADIO, CASSETTE
K = AUTO AIR CONDIT.
L = HEATER
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-10A0 TO K0210-13A0.
Using Komatsu WA380-5 Rops Cab (Door Sash And Lock, L.H.) Parts
Use the Komatsu WA380-5 Rops Cab (Door Sash And Lock, L.H.) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 65 listed part occurrences, including rops cab ass'y,(a+b+c+e) (reference 421-926-3021), rops cab ass'y,(a+b+g) (reference 421-926-3041) and rops cab ass'y,(a+j+c) (reference 421-926-3300). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
