Komatsu WA380-5 Wheel Loader Rops Cab (Main Monitor And Decal) Parts
Komatsu WA380-5 rops cab (main monitor and decal) parts for machine serial 60001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Main Monitor And Decal).
Checking current purchase options...

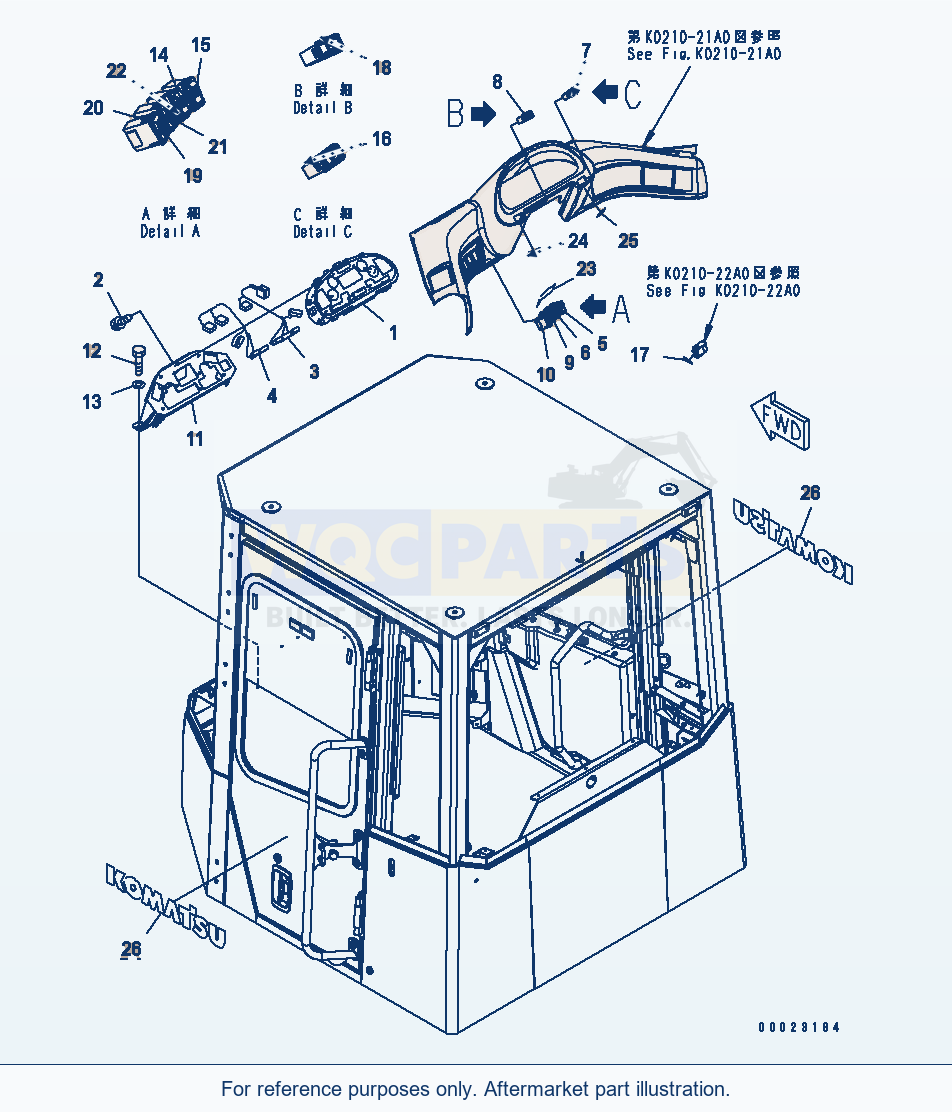

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 53 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ROPS CAB ASS'Y,(A+B+G)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+H+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+J+C)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+C+D+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+H)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+D+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(B+C+D+H+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+B+C+D+F)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(A+C+D+F+J)SN: 60001-UP | 1 | Request quote | |||
| 1 | ROPS CAB ASS'Y,(C+D+F+J+K)SN: 60001-UP | 1 | Request quote | |||
| 1 | MONITOR,MAINSN: 60328-UP | 1 | Request quote | |||
| 1 | MONITOR,MAINSN: 60097-60327 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | MONITOR,MAINSN: 60095-60096 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | MONITOR,MAINSN: 60001-60094 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 2 | SCREWSN: 60001-UP | 8 | Request quote | |||
| 3 | WIRING HARNESSSN: 60095-UP | 1 | Request quote | |||
| 3 | WIRING HARNESSSN: 60001-60094 | 1 | Request quote | |||
| 4 | WIRING HARNESSSN: 60001-UP | 1 | Request quote | |||
| 5 | SWITCH,REAR WORKING LAMPSN: 60376-UP | 1 | Request quote | |||
| 5 | SWITCH,REAR WORKING LAMPSN: 60001-60375 | 1 | Request quote | |||
| 5 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 5 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 6 | SWITCH,FRONT WORKING LAMPSN: 60376-UP | 1 | Request quote | |||
| 6 | SWITCH,FRONT WORKING LAMPSN: 60001-60375 | 1 | Request quote | |||
| 6 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 6 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 7 | SWITCH,TRANSMISSION CUT-OFFSN: 60376-UP | 1 | Request quote | |||
| 7 | SWITCH,TRANSMISSION CUT-OFFSN: 60001-60375 | 1 | Request quote | |||
| 7 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 7 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 8 | SWITCH,E.C.S.S.SN: 60376-UP | 1 | Request quote | |||
| 8 | SWITCH,E.C.S.S.SN: 60001-60375 | 1 | Request quote | |||
| 8 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 8 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 9 | SWITCH,MONITOR PANEL MODE (2)SN: 60376-UP | 1 | Request quote | |||
| 9 | SWITCH,MONITOR PANEL MODE (2)SN: 60001-60375 | 1 | Request quote | |||
| 9 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 9 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 10 | SWITCH,MONITOR PANEL MODE (1)SN: 60376-UP | 1 | Request quote | |||
| 10 | SWITCH,MONITOR PANEL MODE (1)SN: 60001-60375 | 1 | Request quote | |||
| 10 | LAMPSN: 60376-UP | 1 | Request quote | |||
| 10 | LAMPSN: 60001-60375 | 1 | Request quote | |||
| 11 | SUPPORTSN: 60001-UP | 1 | Request quote | |||
| 12 | BOLTSN: 60001-UP | 4 | View product ↗ | |||
| 13 | WASHERSN: 60001-UP | 4 | View product ↗ | |||
| 14 | PLATE, MARKSN: 60376-UP | 1 | Request quote | |||
| 14 | PLATE, MARKSN: 60001-60375 | 1 | Request quote | |||
| 23 | PLATE, NAMESN: 60001-UP | 1 | Request quote | |||
| 26 | PLATE, MARKSN: 60001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A2.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A3.
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-25A0.
THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.
A = AIR CONDITIONER
B = AM, FM RADIO
C = E.C.S.S
D = KOMTRAX
F = YELLOW LAMP
G = HEAT GLASS
H = A/C SIDE BLOW
J = RADIO, CASSETTE
K = AUTO AIR CONDIT.
L = HEATER
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: PLATE, MARK,WORK LAMP, FRONT | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: PLATE, MARK,WORK LAMP, FRONT | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: PLATE, MARK,WORK LAMP, REAR | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: PLATE, MARK,WORK LAMP, REAR | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: PLATE, MARK,TRANSMISSION CUT OFF | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: PLATE, MARK,TRANSMISSION CUT OFF | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 17 | Description: PLATE, MARK,DEFROSTER | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 17 | Description: PLATE, MARK,DEFROSTER | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 18 | Description: PLATE, MARK,E.C.S.S. | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 18 | Description: PLATE, MARK,E.C.S.S. | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 19 | Description: PLATE, MARK,DISPLAY MODE SELECT SW1 | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 19 | Description: PLATE, MARK,DISPLAY MODE SELECT SW1 | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 20 | Description: PLATE, MARK,DISPLAY MODE SELECT SW2 | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 20 | Description: PLATE, MARK,DISPLAY MODE SELECT SW2 | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 21 | Description: PLATE, MARK,DISPLAY MODE FORWORD/REVERSE1 | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 21 | Description: PLATE, MARK,DISPLAY MODE FORWORD/REVERSE1 | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 22 | Description: PLATE, MARK,DISPLAY MODE FORWORD/REVERSE2 | QTY: 1 | OPTIONS: SN: 60376-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 22 | Description: PLATE, MARK,DISPLAY MODE FORWORD/REVERSE2 | QTY: 1 | OPTIONS: SN: 60001-60375
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 23 | Description: PLATE, NAME | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 24 | Description: PLATE, NAME | QTY: 1 | OPTIONS: SN: 60001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 25 | Description: PLATE, NAME | QTY: 1 | OPTIONS: SN: 60001-UP
Using Komatsu WA380-5 Wheel Loader Rops Cab (Main Monitor And Decal) Parts
Use the Komatsu WA380-5 Wheel Loader Rops Cab (Main Monitor And Decal) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 60001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 53 listed part occurrences, including rops cab ass'y,(a+b+g) (reference 421-926-3041), rops cab ass'y,(b+c+k) (reference 424-926-3400) and rops cab ass'y,(c+j+k) (reference 424-926-3600). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
