Operator'S Compartment And Control System

Komatsu WA380-5 Rops Cab (Window Washer) (Except Japan) Parts

Komatsu WA380-5 rops cab (window washer) (except japan) parts for machine serial 60001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Window Washer) (Except Japan).

WA380-5Machine serial 60001-UP (OVERSEAS VERSION)176 part occurrences

Checking current purchase options...

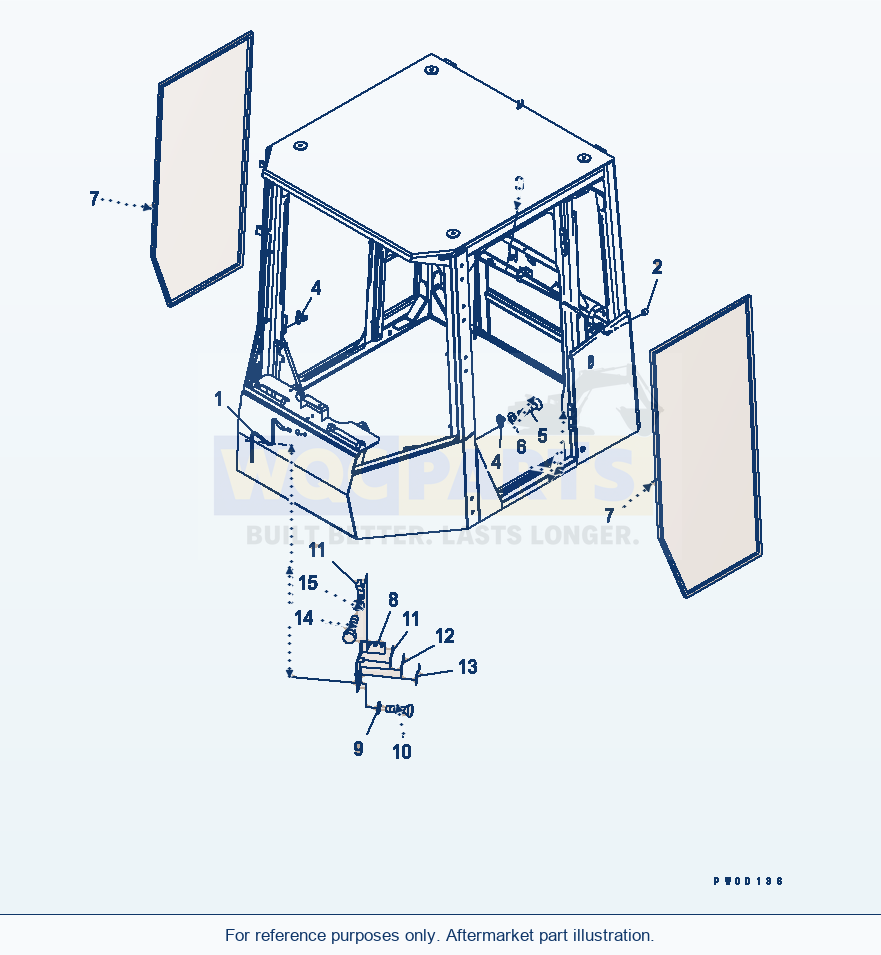

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 176 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

LinePart numberDescriptionQtyOrder qtyPurchase options
42ROPS CAB ASS'Y,(G)SN: 62359-UP1Request quote
43ROPS CAB ASS'Y,(G)SN: 62027-623581Request quote
44ROPS CAB ASS'Y,(G)SN: 61093-620261Request quote
45ROPS CAB ASS'Y,(G)SN: 60001-610921Request quote
46ROPS CAB ASS'Y,(E)SN: 62027-UP1Request quote
47ROPS CAB ASS'Y,(E)SN: 61093-620261Request quote
48ROPS CAB ASS'Y,(E)SN: 60001-610921Request quote
49ROPS CAB ASS'Y,(A)SN: 62359-UP1Request quote
50ROPS CAB ASS'Y,(A)SN: 62027-623581Request quote
51ROPS CAB ASS'Y,(A)SN: 61093-620261Request quote
52ROPS CAB ASS'Y,(A)SN: 60001-610921Request quote
53ROPS CAB ASS'Y,(A+E)SN: 62027-UP1Request quote
54ROPS CAB ASS'Y,(A+E)SN: 61093-620261Request quote
55ROPS CAB ASS'Y,(A+E)SN: 60001-610921Request quote
56ROPS CAB ASS'Y,(B)SN: 62359-UP1Request quote
57ROPS CAB ASS'Y,(B)SN: 62318-623581Request quote
58ROPS CAB ASS'Y,(B)SN: 62027-623171Request quote
59ROPS CAB ASS'Y,(B)SN: 61093-620261Request quote
60ROPS CAB ASS'Y,(B)SN: 60001-610921Request quote
61ROPS CAB ASS'Y,(B+E)SN: 62318-UP1Request quote
62ROPS CAB ASS'Y,(B+E)SN: 62027-623171Request quote
63ROPS CAB ASS'Y,(B+E)SN: 61093-620261Request quote
64ROPS CAB ASS'Y,(B+E)SN: 60001-610921Request quote
65ROPS CAB ASS'Y,(A+B)SN: 62359-UP1Request quote
66ROPS CAB ASS'Y,(A+B)SN: 62318-623581Request quote
67ROPS CAB ASS'Y,(A+B)SN: 62027-623171Request quote
68ROPS CAB ASS'Y,(A+B)SN: 61093-620261Request quote
69ROPS CAB ASS'Y,(A+B)SN: 60001-610921Request quote
70ROPS CAB ASS'Y,(A+B+E)SN: 62318-UP1Request quote
71ROPS CAB ASS'Y,(A+B+E)SN: 62027-623171Request quote
72ROPS CAB ASS'Y,(A+B+E)SN: 61093-620261Request quote
73ROPS CAB ASS'Y,(A+B+E)SN: 60001-610921Request quote
74ROPS CAB ASS'Y,(J)SN: 62359-UP1Request quote
75ROPS CAB ASS'Y,(J)SN: 62318-623581Request quote
76ROPS CAB ASS'Y,(J)SN: 62027-623171Request quote
77ROPS CAB ASS'Y,(J)SN: 61093-620261Request quote
78ROPS CAB ASS'Y,(J)SN: 60001-610921Request quote
79ROPS CAB ASS'Y,(E+J)SN: 62318-UP1Request quote
80ROPS CAB ASS'Y,(E+J)SN: 62027-623171Request quote
81ROPS CAB ASS'Y,(E+J)SN: 61093-620261Request quote
82ROPS CAB ASS'Y,(E+J)SN: 60001-610921Request quote
83ROPS CAB ASS'Y,(A+J)SN: 62359-UP1Request quote
84ROPS CAB ASS'Y,(A+J)SN: 62318-623581Request quote
85ROPS CAB ASS'Y,(A+J)SN: 62027-623171Request quote
86ROPS CAB ASS'Y,(A+J)SN: 61093-620261Request quote
87ROPS CAB ASS'Y,(A+J)SN: 60001-610921Request quote
88ROPS CAB ASS'Y,(A+E+J)SN: 62318-UP1Request quote
89ROPS CAB ASS'Y,(A+E+J)SN: 62027-623171Request quote
90ROPS CAB ASS'Y,(A+E+J)SN: 61093-620261Request quote
91ROPS CAB ASS'Y,(A+E+J)SN: 60001-610921Request quote
92ROPS CAB ASS'Y,(B+L)SN: 62359-UP1Request quote
93ROPS CAB ASS'Y,(B+L)SN: 62318-623581Request quote
94ROPS CAB ASS'Y,(B+L)SN: 62027-623171Request quote
95ROPS CAB ASS'Y,(B+L)SN: 61093-620261Request quote
96ROPS CAB ASS'Y,(B+L)SN: 60001-610921Request quote
97ROPS CAB ASS'Y,(B+E+L)SN: 62318-UP1Request quote
98ROPS CAB ASS'Y,(B+E+L)SN: 62027-623171Request quote
99ROPS CAB ASS'Y,(B+E+L)SN: 61093-620261Request quote
100ROPS CAB ASS'Y,(B+E+L)SN: 60001-610921Request quote
101ROPS CAB ASS'Y,(E+J+L)SN: 62318-UP1Request quote
102ROPS CAB ASS'Y,(E+J+L)SN: 62027-623171Request quote
103ROPS CAB ASS'Y,(E+J+L)SN: 61093-620261Request quote
104ROPS CAB ASS'Y,(E+J+L)SN: 60001-610921Request quote
105ROPS CAB ASS'Y,(B+C+L)SN: 62359-UP1Request quote
106ROPS CAB ASS'Y,(B+C+L)SN: 62318-623581Request quote
107ROPS CAB ASS'Y,(B+C+L)SN: 62027-623171Request quote
108ROPS CAB ASS'Y,(B+C+L)SN: 61093-620261Request quote
109ROPS CAB ASS'Y,(B+C+L)SN: 60001-610921Request quote
110ROPS CAB ASS'Y,(B+C+E+L)SN: 62318-UP1Request quote
111ROPS CAB ASS'Y,(B+C+E+L)SN: 62027-623171Request quote
112ROPS CAB ASS'Y,(B+C+E+L)SN: 61093-620261Request quote
113ROPS CAB ASS'Y,(B+C+E+L)SN: 60001-610921Request quote
114ROPS CAB ASS'Y,(C+J+L)SN: 62359-UP1Request quote
115ROPS CAB ASS'Y,(C+J+L)SN: 62318-623581Request quote
116ROPS CAB ASS'Y,(C+J+L)SN: 62027-623171Request quote
117ROPS CAB ASS'Y,(C+J+L)SN: 61093-620261Request quote
118ROPS CAB ASS'Y,(C+J+L)SN: 60001-610921Request quote
119ROPS CAB ASS'Y,(C+E+J+L)SN: 62318-UP1Request quote
120ROPS CAB ASS'Y,(C+E+J+L)SN: 62027-623171Request quote
121ROPS CAB ASS'Y,(C+E+J+L)SN: 61093-620261Request quote
122ROPS CAB ASS'Y,(C+E+J+L)SN: 60001-610921Request quote
123ROPS CAB ASS'Y,(F)SN: 62359-UP1Request quote
124ROPS CAB ASS'Y,(F)SN: 62027-623581Request quote
125ROPS CAB ASS'Y,(F)SN: 61093-620261Request quote
126ROPS CAB ASS'Y,(F)SN: 60001-610921Request quote
127ROPS CAB ASS'Y,(E+F)SN: 62027-UP1Request quote
128ROPS CAB ASS'Y,(E+F)SN: 61093-620261Request quote
129ROPS CAB ASS'Y,(E+F)SN: 60001-610921Request quote
130ROPS CAB ASS'Y,(A+F)SN: 62359-UP1Request quote
131ROPS CAB ASS'Y,(A+F)SN: 62027-623581Request quote
132ROPS CAB ASS'Y,(A+F)SN: 61093-620261Request quote
133ROPS CAB ASS'Y,(A+F)SN: 60001-610921Request quote
134ROPS CAB ASS'Y,(A+E+F)SN: 62027-UP1Request quote
135ROPS CAB ASS'Y,(A+E+F)SN: 61093-620261Request quote
136ROPS CAB ASS'Y,(A+E+F)SN: 60001-610921Request quote
137ROPS CAB ASS'Y,(A+C+E+G+H+J)SN: 62318-UP1Request quote
138ROPS CAB ASS'Y,(A+C+E+G+H+J)SN: 62027-623171Request quote
139ROPS CAB ASS'Y,(A+C+E+G+H+J)SN: 61093-620261Request quote
140ROPS CAB ASS'Y,(A+C+E+G+H+J)SN: 60001-610921Request quote
141ROPS CAB ASS'Y,(G+AD)SN: 62359-UP1Request quote
142ROPS CAB ASS'Y,(G+AD)SN: 62027-623581Request quote
143ROPS CAB ASS'Y,(G+AD)SN: 61093-620261Request quote
144ROPS CAB ASS'Y,(G+AD)SN: 60001-610921Request quote
145ROPS CAB ASS'Y,(A+B+C+E+G+H)SN: 62318-UP1Request quote
146ROPS CAB ASS'Y,(A+B+C+E+G+H)SN: 62027-623171Request quote
147ROPS CAB ASS'Y,(A+B+C+E+G+H)SN: 61093-620261Request quote
148ROPS CAB ASS'Y,(A+B+C+E+G+H)SN: 60001-610921Request quote
149ROPS CAB ASS'Y,(A+B+C+G+H)SN: 62359-UP1Request quote
150ROPS CAB ASS'Y,(A+B+C+G+H)SN: 62318-623581Request quote
151ROPS CAB ASS'Y,(A+B+C+G+H)SN: 62027-623171Request quote
152ROPS CAB ASS'Y,(A+B+C+G+H)SN: 61093-620261Request quote
153ROPS CAB ASS'Y,(A+B+C+G+H)SN: 60001-610921Request quote
154ROPS CAB ASS'Y,(B+C+G+H+K)SN: 62359-UP1Request quote
155ROPS CAB ASS'Y,(B+C+G+H+K)SN: 62318-623581Request quote
156ROPS CAB ASS'Y,(B+C+G+H+K)SN: 62027-623171Request quote
157ROPS CAB ASS'Y,(B+C+G+H+K)SN: 61093-620261Request quote
158ROPS CAB ASS'Y,(B+C+G+H+K)SN: 60001-610921Request quote
159ROPS CAB ASS'Y,(A+B+G)SN: 62359-UP1Request quote
160ROPS CAB ASS'Y,(A+B+G)SN: 62318-623581Request quote
161ROPS CAB ASS'Y,(A+B+G)SN: 62027-623171Request quote
162ROPS CAB ASS'Y,(A+B+G)SN: 61093-620261Request quote
163ROPS CAB ASS'Y,(A+B+G)SN: 60001-610921Request quote
164ROPS CAB ASS'Y,(A+C+G+H)SN: 62359-UP1Request quote
165ROPS CAB ASS'Y,(A+C+G+H)SN: 62027-623581Request quote
166ROPS CAB ASS'Y,(A+C+G+H)SN: 61093-620261Request quote
167ROPS CAB ASS'Y,(A+C+G+H)SN: 60001-610921Request quote
168ROPS CAB ASS'Y,(A+G)SN: 62359-UP1Request quote
169ROPS CAB ASS'Y,(A+G)SN: 62027-623581Request quote
170ROPS CAB ASS'Y,(A+G)SN: 61093-620261Request quote
171ROPS CAB ASS'Y,(A+G)SN: 60001-610921Request quote
172ROPS CAB ASS'Y,(G+M)SN: 62359-UP1Request quote
173ROPS CAB ASS'Y,(G+M)SN: 62027-623581Request quote
174ROPS CAB ASS'Y,(G+M)SN: 61093-620261Request quote
175ROPS CAB ASS'Y,(G+M)SN: 60001-610921Request quote
176ROPS CAB ASS'Y,(A+C+G+H+J)SN: 62359-UP1Request quote
177ROPS CAB ASS'Y,(A+C+G+H+J)SN: 62318-623581Request quote
178ROPS CAB ASS'Y,(A+C+G+H+J)SN: 62027-623171Request quote
179ROPS CAB ASS'Y,(A+C+G+H+J)SN: 61093-620261Request quote
180ROPS CAB ASS'Y,(A+C+G+H+J)SN: 60001-610921Request quote
181ROPS CAB ASS'Y,(A+B+E+G)SN: 62318-UP1Request quote
182ROPS CAB ASS'Y,(A+B+E+G)SN: 62027-623171Request quote
183ROPS CAB ASS'Y,(A+B+E+G)SN: 60001-620261Request quote
184ROPS CAB ASS'Y,(B+C+G+K)SN: 62359-UP1Request quote
185ROPS CAB ASS'Y,(B+C+G+K)SN: 62318-623581Request quote
186ROPS CAB ASS'Y,(B+C+G+K)SN: 62027-623171Request quote
187ROPS CAB ASS'Y,(B+C+G+K)SN: 61134-620261Request quote
188ROPS CAB ASS'Y,(B+C+G+K)SN: 60001-611331Request quote
189ROPS CAB ASS'Y,(G+K)SN: 62359-UP1Request quote
190ROPS CAB ASS'Y,(G+K)SN: 60001-623581Request quote
191ROPS CAB ASS'YSN: 62359-UP1Request quote
192ROPS CAB ASS'YSN: 60001-623581Request quote
193ROPS CAB ASS'Y,(F)SN: 62359-UP1Request quote
194ROPS CAB ASS'Y,(F)SN: 60001-623581Request quote
195ROPS CAB ASS'Y,(B)SN: 62359-UP1Request quote
196ROPS CAB ASS'Y,(B)SN: 60001-623581Request quote
197ROPS CAB ASS'Y,(L)SN: 62359-UP1Request quote
198ROPS CAB ASS'Y,(L)SN: 60001-623581Request quote
199ROPS CAB ASS'Y,(B+F)SN: 62359-UP1Request quote
200ROPS CAB ASS'Y,(B+F)SN: 60001-623581Request quote
201ROPS CAB ASS'Y,(C)SN: 62359-UP1Request quote
202ROPS CAB ASS'Y,(C)SN: 60001-623581Request quote
1HOSE, 4300MMSN: 60001-UP1Request quote
2NOZZLE ASS'YSN: 60001-UP1Request quote
3HOSE, 4300MMSN: 60001-UP1Request quote
4STRIKERSN: 60001-UP2Request quote
5SCREWSN: 60001-UP4Request quote
6WASHERSN: 60001-UP4Request quote
7SEALSN: 60001-UP2Request quote
8BRACKETSN: 60001-UP1Request quote
9WASHERSN: 60001-UP2Request quote
10SCREWSN: 60001-UP2Request quote
11CLIPSN: 60001-UP4Request quote
12CLIPSN: 60001-UP1Request quote
13CLIPSN: 60001-UP1Request quote
14BOLTSN: 60001-UP6Request quote
15WASHERSN: 60001-UP6View product ↗

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

A = AIR CONDITIONER

B = AM,FM RADIO

C = E.C.S.S

D = KOMTRAX

E = LOAD METER

F = YELLOW LAMP

G = HEAT GLASS

H = A/C SIDE BLOW

J = RADIO, CASSETTE

K = AUTO AIR CONDIT.

L = HEATER

M = SW PUMP CUT-OFF
