Komatsu WA380-5 Service Kit Serial 60001-UP (OVERSEAS VERSION) Parts
Komatsu WA380-5 service kit serial 60001-up (overseas version) parts for machine serial 60001-UP (OVERSEAS VERSION). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Service Kit And Component Parts / Service Kit.
Checking current purchase options...

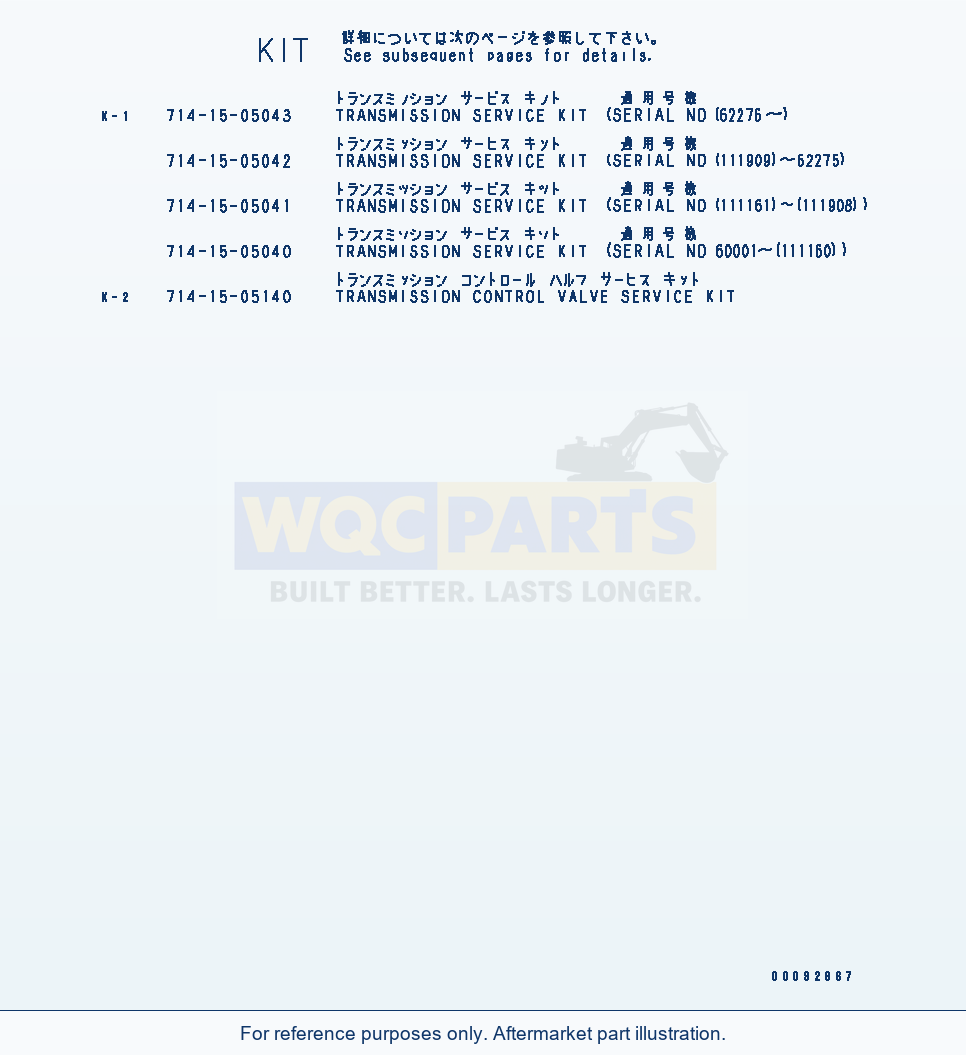

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 74 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SERVICE KIT,TRANSMISSIONSN: 62276-UP | 1 | Request quote | |||
| 1 | SERVICE KIT,TRANSMISSIONSN: (111909)-00062275 | 1 | Request quote | |||
| 1 | SERVICE KIT,TRANSMISSIONSN: (111161)-(111908) | 1 | Request quote | |||
| 1 | SERVICE KIT,TRANSMISSIONSN: 60001-(111160) | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -38 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -41 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -4 )SN: 62276-UP | 2 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -4 )SN: 60001-62275 | 2 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -19 )SN: 62276-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -19 )SN: 60001-62275 | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -29 )SN: 62276-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -29 )SN: 60001-62275 | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-55A0 -20 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-55A0 -21 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-62A0 -12 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-55A0 -32 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -2 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-51A0 -17 )SN: (111161)-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-51A0 -17- )SN: 60001-(111160) | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-55A0 -10 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-55A0 -14 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-51A0 -11 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-57A0 -16 )SN: 60001-UP | 2 | Request quote | |||
| 1 | O-RING,(F4350-57A0 -15 )SN: 60001-UP | 25 | Request quote | |||
| 1 | O-RING,(F4350-57A0 -14 )SN: 60001-UP | 3 | View product ↗ | |||
| 1 | O-RING,(F4350-62A0 -19 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-57A0 -4 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-57A0 -17 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | RING,(F4350-55A0 -22 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -6 )SN: 62276-UP | 2 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -6 )SN: 60001-62275 | 2 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -39 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -42 )SN: 60001-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -20 )SN: 62276-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -20 )SN: 60001-62275 | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -30 )SN: 62276-UP | 1 | Request quote | |||
| 1 | O-RING,(F4350-61A0 -30 )SN: 60001-62275 | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-62A0 -7 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -7 )SN: 62276-UP | 2 | View product ↗ | |||
| 1 | O-RING,(F4350-61A0 -7 )SN: 60001-62275 | 2 | Request quote | |||
| 1 | SEAL, WASHER,(F4350-61A0 -33 )SN: 60001-UP | 6 | View product ↗ | |||
| 1 | O-RINGSN: 60001-UP | 1 | Request quote | |||
| 1 | RING,(F4350-53A0 -21 )SN: 60001-UP | 3 | View product ↗ | |||
| 1 | RING,(F4350-54A0 -20 )SN: 60001-UP | 3 | View product ↗ | |||
| 1 | LIQUID GASKET,(F4350-51A0 -22 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | RING,(F4350-63A0 -4 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | SEAL,(F4350-55A0 -9 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | SHIM ASS'Y,(F4350-51A0 -16 )SN: (111909)-UP | 1 | Request quote | |||
| 1 | SHIM ASS'Y,(F4350-51A0 -16- )SN: 60001-(111908) | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 1 | RING,(F4350-53A0 -9 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | RING,(F4350-54A0 -9 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | OIL SEAL,(F4350-55A0 -8 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | RING,(F4350-52A0 -9 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | SHIM ASS'Y,(F4350-55A0 -29 )SN: 60001-UP | 1 | View product ↗ | |||
| 1 | RING,(F4350-52A0 -10 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | RING,(F4350-53A0 -8 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | RING,(F4350-54A0 -8 )SN: 60001-UP | 2 | View product ↗ | |||
| 1 | RING,(F4350-52A0 -18 )SN: 60001-UP | 4 | View product ↗ | |||
| 2 | SERVICE KITSN: 60001-UP | 1 | Request quote | |||
| 2 | O-RING,(F4350-58A8 -10 )SN: 60001-UP | 1 | View product ↗ | |||
| 2 | O-RING,(F4350-58A8 -11 )SN: 60001-UP | 1 | Request quote | |||
| 2 | O-RING,(F4350-58A8 -12 )SN: 60001-UP | 1 | View product ↗ | |||
| 2 | O-RING,(F4350-58A8 -13 )SN: 60001-UP | 1 | Request quote | |||
| 2 | O-RING,(F4350-59A0 -9 )SN: 60001-UP | 7 | View product ↗ | |||
| 2 | O-RING,(F4350-59A0 -22 )SN: 60001-UP | 3 | Request quote | |||
| 2 | O-RING,(F4350-59A0 -8 )SN: 60001-UP | 28 | Request quote | |||
| 2 | O-RING,(F4350-59A0 -30 )SN: 60001-UP | 2 | View product ↗ | |||
| 2 | O-RING,(F4350-58A0 -9 )SN: 60001-UP | 2 | View product ↗ | |||
| 2 | O-RING,(F4350-59A0 -36 )SN: 60001-UP | 5 | View product ↗ | |||
| 2 | O-RING,(F4350-60A0 -4 )SN: 60001-UP | 1 | View product ↗ | |||
| 2 | O-RING,(F4350-60A0 -13 )SN: 60001-UP | 1 | View product ↗ | |||
| 2 | O-RING,(F4350-60A0 -21 )SN: 60001-UP | 2 | View product ↗ | |||
| 2 | O-RING,(F4350-59A0 -29 )SN: 60001-UP | 1 | View product ↗ | |||
| 2 | O-RING,(F4350-59A0 -16 )SN: 60001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
Using Komatsu WA380-5 Service Kit Serial 60001-UP (OVERSEAS VERSION) Parts
Use the Komatsu WA380-5 Service Kit Serial 60001-UP (OVERSEAS VERSION) Parts listing to identify aftermarket replacement parts within the service kit and component parts section. This wheel loader application is listed for machine serial 60001-UP (OVERSEAS VERSION); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 74 listed part occurrences, including service kit,transmission (reference 714-15-05043), service kit,transmission (reference 714-15-05042) and service kit,transmission (reference 714-15-05041). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
