Komatsu WA380-5L Alternator Mounting (For 50A Alternator) Parts
Komatsu WA380-5L alternator mounting (for 50a alternator) parts for machine serial A52001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D114E-2B S/N .-UP / Engine / Alternator Mounting (For 50A Alternator).
Checking current purchase options...

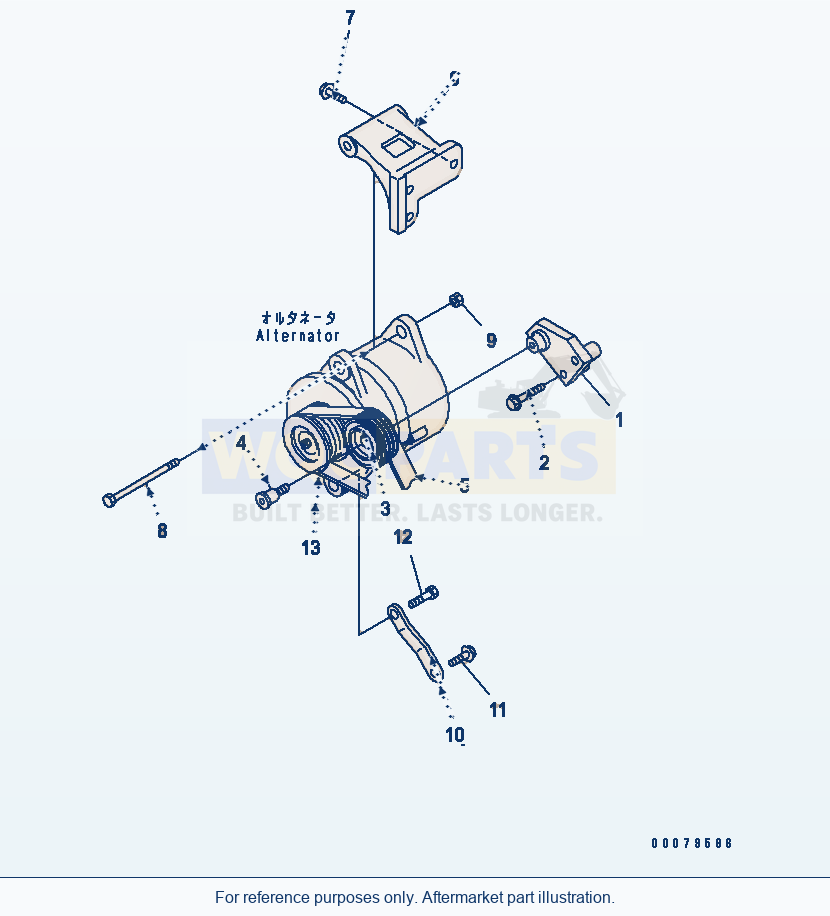

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRACKET,IDLER PULLEY (F1)SN: .-UP | 1 | Request quote | |||
| 2 | BOLT (F1)SN: .-UP | 2 | Request quote | |||
| 3 | PULLEY,IDLER (F1)SN: .-UP | 1 | Request quote | |||
| 4 | SHAFT,IDLER (F1)SN: .-UP | 1 | Request quote | |||
| 5 | BELT,V-RIBBED (F1)SN: .-UP | 1 | View product ↗ | |||
| 6 | SUPPORT,ALTERNATOR (F1)SN: .-UP | 1 | Request quote | |||
| 7 | BOLT (F1)SN: .-UP | 3 | Request quote | |||
| 8 | BOLT (F1)SN: .-UP | 1 | Request quote | |||
| 9 | NUT (F1)SN: .-UP | 1 | Request quote | |||
| 10 | BRACE,ALTERNATOR (F1)SN: .-UP | 1 | Request quote | |||
| 11 | BOLT (F1)SN: .-UP | 1 | Request quote | |||
| 12 | BOLT (F1)SN: .-UP | 1 | Request quote | |||
| 13 | PULLEY,ALTERNATOR (F1)SN: .-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
(F1)
THESE PARTS MUST BE REPLACEDWITH THE 60 AMP ALTERNATOR DRIVE PULLEY AND ALTERNATOR MOUNTING
WHEN THE 50 AMP ALTERNATOR IS REPLACED WITH THE 60 AMP ALTERNATOR.
Using Komatsu WA380-5L Alternator Mounting (For 50A Alternator) Parts
Use the Komatsu WA380-5L Alternator Mounting (For 50A Alternator) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A52001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including bracket,idler pulley (f1) (reference 6743-61-4410), pulley,idler (f1) (reference 6743-61-3440) and shaft,idler (f1) (reference 6743-61-3420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D114E-2B (engine serial .-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
