Komatsu WA380-5L Wheel Loader Crankshaft Parts
Komatsu WA380-5L crankshaft parts for machine serial A52001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D114E-2B S/N .-UP / Engine / Crankshaft.
Checking current purchase options...

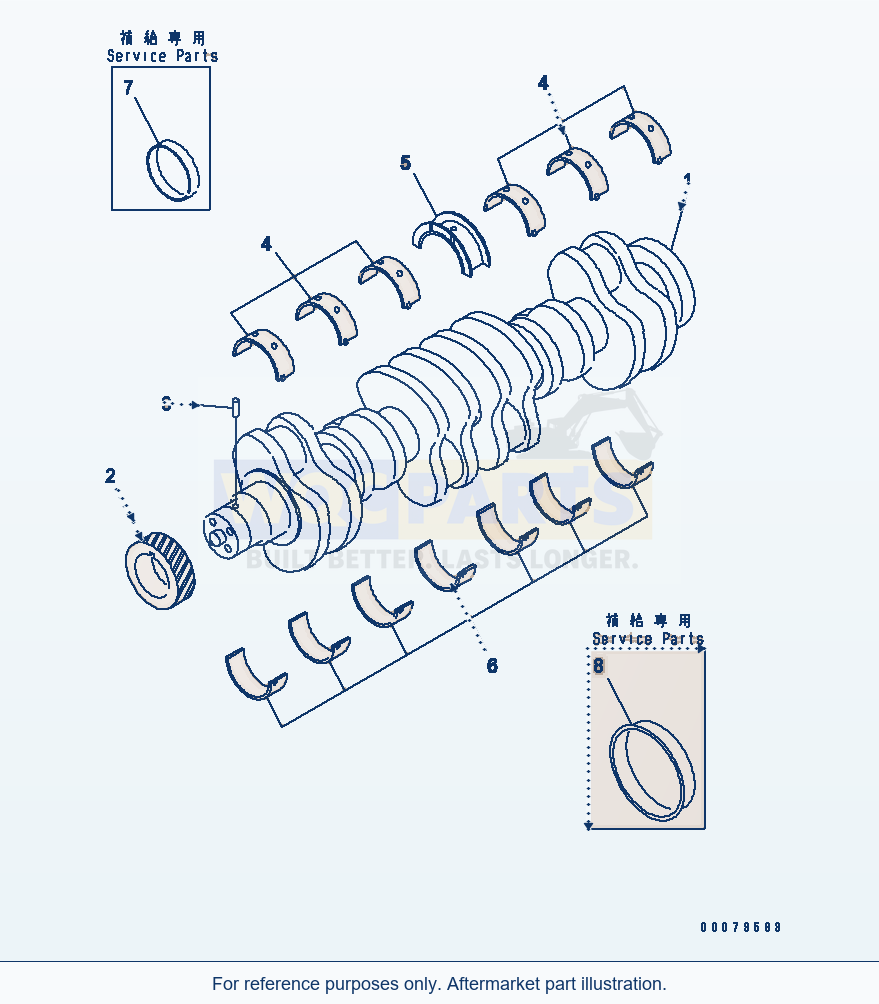

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CRANKSHAFT ASS'YSN: .-UP | 1 | View product ↗ | |||
| 2 | GEAR,CRANKSHAFTSN: .-UP | 1 | Request quote | |||
| 3 | PIN,DOWELSN: .-UP | 1 | Request quote | |||
| 4 | O-RING,SEALSN: .-UP | 1 | View product ↗ | |||
| 5 | MAIN METAL ASS'Y,MAIN BEARING - STANDARDSN: .-UP | 1 | Request quote | |||
| 5 | METAL,THRUSTSN: .-UP | 1 | Request quote | |||
| 9 | MAIN METAL ASS'Y,MAIN BEARING - 0.25MMSN: .-UP | 1 | Request quote | |||
| 13 | MAIN METAL ASS'Y,LOWERSN: .-UP | 1 | Request quote | |||
| 5 | METAL,MAIN BEARING - 0.50MMSN: .-UP | 1 | Request quote | |||
| 17 | MAIN METAL ASS'Y,MAIN UPPERSN: .-UP | 1 | Request quote | |||
| 5 | METAL,LOWERSN: .-UP | 1 | Request quote | |||
| 21 | MAIN METAL ASS'Y,MAIN BEARING - 0.75MMSN: .-UP | 1 | Request quote | |||
| 5 | METAL,THRUSTSN: .-UP | 1 | Request quote | |||
| 7 | SEAL ASS'YSN: .-UP | 1 | View product ↗ | |||
| 8 | SLEEVESN: .-UP | 1 | View product ↗ | |||
| 29 | METAL,THRUST STD/0.25MMSN: .-UP | - | Request quote | |||
| 30 | METAL,THRUST STD/0.5MMSN: .-UP | - | Request quote | |||
| 31 | THRUST METAL ASS'Y,THRUST 0.5MM/0.5MMSN: .-UP | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CRANKSHAFT,ENGINE | QTY: 1 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: METAL,MAIN UPPER | QTY: 6 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: METAL,LOWER | QTY: 7 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: METAL | QTY: 6 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: METAL,MAIN UPPER | QTY: 1 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: METAL,THRUST | QTY: 7 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: METAL | QTY: 6 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: METAL | QTY: 7 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: METAL,THRUST | QTY: 6 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: METAL | QTY: 7 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: METAL,MAIN UPPER | QTY: 6 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: METAL,LOWER | QTY: 7 | OPTIONS: SN: .-UP
SERVICE PARTS
OVERSIZE BEARINGS
Using Komatsu WA380-5L Wheel Loader Crankshaft Parts
Use the Komatsu WA380-5L Wheel Loader Crankshaft Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A52001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including crankshaft ass'y (reference 6742-01-1570), gear,crankshaft (reference 6742-01-1590) and pin,dowel (reference 6732-21-6150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D114E-2B (engine serial .-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
