Komatsu WA380-5L Wheel Loader Lubricating Oil Cooler Parts
Komatsu WA380-5L lubricating oil cooler parts for machine serial A52001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D114E-2B S/N .-UP / Engine / Lubricating Oil Cooler.
Checking current purchase options...

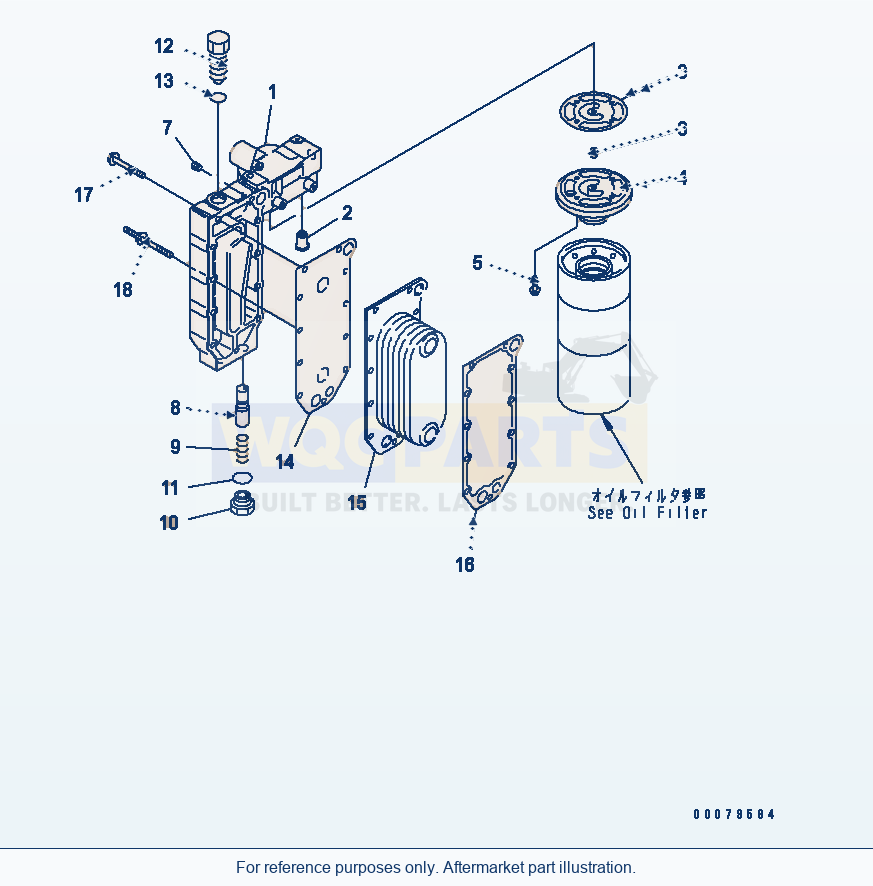

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | COVER,OIL COOLERSN: .-UP | 1 | Request quote | |||
| 2 | VALVE,PRESSURE RELIEFSN: .-UP | 1 | Request quote | |||
| 3 | GASKET,FILTER HEADSN: .-UP | 1 | View product ↗ | |||
| 4 | HEAD,OIL FILTERSN: .-UP | 1 | Request quote | |||
| 5 | BOLTSN: .-UP | 4 | Request quote | |||
| 6 | RING,DOWELSN: .-UP | 1 | Request quote | |||
| 7 | PLUG,PIPESN: .-UP | 2 | Request quote | |||
| 8 | PLUNGER,PRESSURE REGULATORSN: .-UP | 1 | Request quote | |||
| 9 | SPRING,COMPRESSIONSN: .-UP | 1 | Request quote | |||
| 10 | PLUG,THREADEDSN: .-UP | 1 | Request quote | |||
| 11 | SEAL,O-RINGSN: .-UP | 1 | View product ↗ | |||
| 13 | VALVE,BYPASSSN: .-UP | 1 | Request quote | |||
| 13 | O-RING,SEALSN: .-UP | 1 | View product ↗ | |||
| 14 | GASKET,LUBRICATING OIL COOLER COVERSN: .-UP | 1 | View product ↗ | |||
| 15 | CORE,COOLERSN: .-UP | 1 | Request quote | |||
| 16 | GASKET,OIL COOLER CORESN: .-UP | 1 | View product ↗ | |||
| 17 | BOLTSN: .-UP | 9 | Request quote | |||
| 18 | BOLTSN: .-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 0 | Description: HEAD,OIL FILTER | QTY: 1 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLUG,THREADED | QTY: 1 | OPTIONS: SN: .-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: VALVE,BYPASS | QTY: 1 | OPTIONS: SN: .-UP
Using Komatsu WA380-5L Wheel Loader Lubricating Oil Cooler Parts
Use the Komatsu WA380-5L Wheel Loader Lubricating Oil Cooler Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A52001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including cover,oil cooler (reference 6743-61-2111), valve,pressure relief (reference 6731-61-2151) and gasket,filter head (reference 6742-01-2491). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D114E-2B (engine serial .-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
