Komatsu WA380-5L Wheel Loader Starting Motor (7.5Kw) Parts
Komatsu WA380-5L starting motor (7.5kw) parts for machine serial A52001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D114E-2B S/N .-UP / Engine / Starting Motor (7.5Kw).
Checking current purchase options...

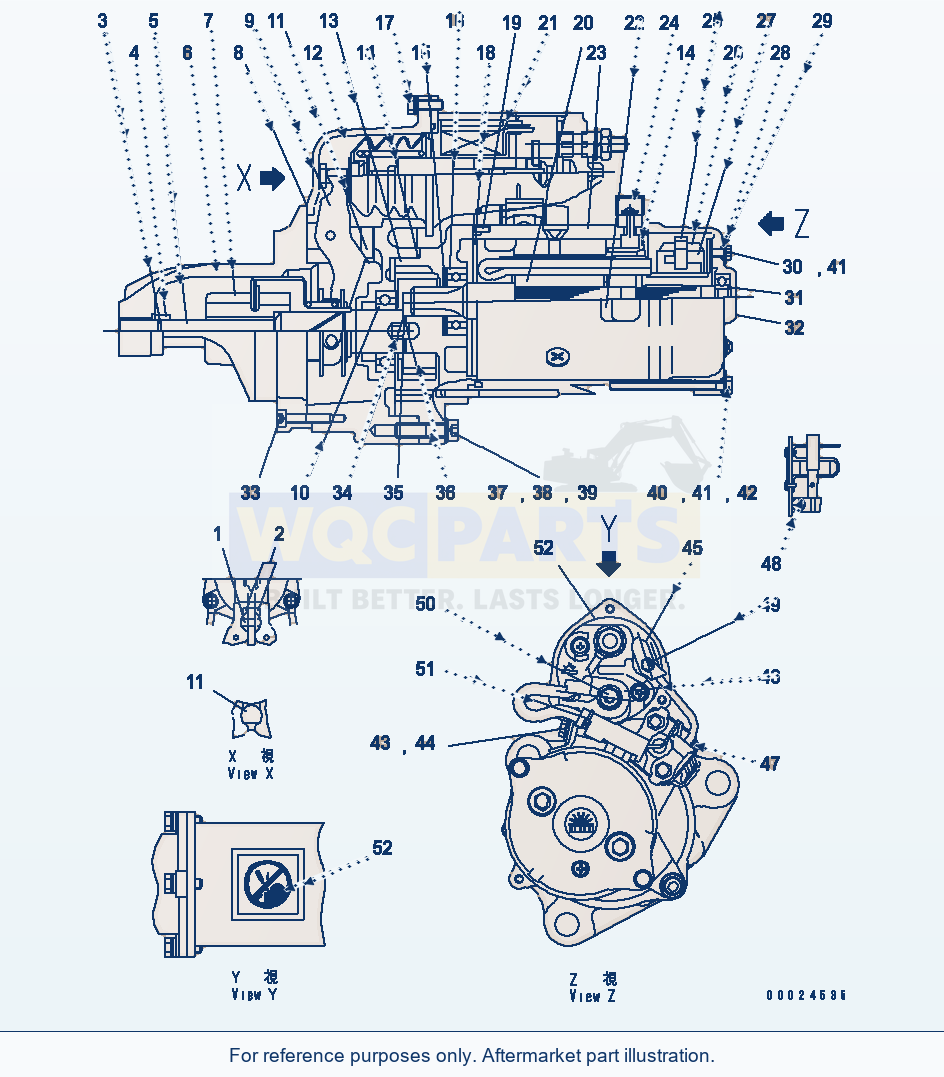

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 53 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | STARTING MOTOR ASS'Y,(7.5KW)SN: .-UP | 1 | View product ↗ | |||
| 1 | PINSN: .-UP | 1 | Request quote | |||
| 2 | HOLDERSN: .-UP | 2 | Request quote | |||
| 3 | RING,CLIPSN: .-UP | 1 | Request quote | |||
| 4 | STOPPER,PINIONSN: .-UP | 1 | Request quote | |||
| 5 | SHAFTSN: .-UP | 1 | Request quote | |||
| 6 | BRACKET,FRONTSN: .-UP | 1 | Request quote | |||
| 7 | CLUTCH ASS'Y,OVER RUNNINGSN: .-UP | 1 | Request quote | |||
| 8 | PACKINGSN: .-UP | 1 | Request quote | |||
| 9 | SHIFT LEVER A.SN: .-UP | 1 | Request quote | |||
| 10 | BEARING,BALLSN: .-UP | 1 | Request quote | |||
| 11 | PACKINGSN: .-UP | 1 | Request quote | |||
| 12 | CENTER BRACKET A.SN: .-UP | 1 | Request quote | |||
| 13 | BRACKET,CENTERSN: .-UP | 1 | Request quote | |||
| 14 | O-RINGSN: .-UP | 2 | Request quote | |||
| 15 | WASHERSN: .-UP | 1 | Request quote | |||
| 16 | BEARING,BALLSN: .-UP | 1 | Request quote | |||
| 17 | BOLTSN: .-UP | 3 | Request quote | |||
| 18 | PACKINGSN: .-UP | 1 | Request quote | |||
| 19 | PIN,STRAIGHTSN: .-UP | 1 | Request quote | |||
| 20 | ARMATURE ASS'YSN: .-UP | 1 | Request quote | |||
| 21 | MAGNETIC SWITCH A.SN: .-UP | 1 | Request quote | |||
| 22 | PLATE, NAMESN: .-UP | 1 | Request quote | |||
| 23 | YOKE ASS'YSN: .-UP | 1 | Request quote | |||
| 24 | COVERSN: .-UP | 1 | Request quote | |||
| 25 | SPRING,BRUSHSN: .-UP | 4 | Request quote | |||
| 26 | BRUSH ASS'YSN: .-UP | 4 | Request quote | |||
| 27 | BRUSH HOLDER ASS'YSN: .-UP | 1 | Request quote | |||
| 28 | O-RINGSN: .-UP | 2 | Request quote | |||
| 29 | WASHERSN: .-UP | 2 | Request quote | |||
| 30 | BOLTSN: .-UP | 2 | Request quote | |||
| 31 | BEARING,BALLSN: .-UP | 1 | Request quote | |||
| 32 | REAR BRACKET ASS'YSN: .-UP | 1 | Request quote | |||
| 33 | BOLTSN: .-UP | 6 | Request quote | |||
| 34 | WASHERSN: .-UP | 1 | Request quote | |||
| 35 | WASHERSN: .-UP | 1 | Request quote | |||
| 36 | WASHER,INSULATESN: .-UP | 1 | Request quote | |||
| 37 | BOLTSN: .-UP | 3 | Request quote | |||
| 38 | WASHER,SPRINGSN: .-UP | 3 | Request quote | |||
| 39 | WASHER,PLAINSN: .-UP | 3 | Request quote | |||
| 40 | BOLTSN: .-UP | 2 | Request quote | |||
| 41 | WASHER,SPRINGSN: .-UP | 4 | Request quote | |||
| 42 | WASHER,PLAINSN: .-UP | 2 | Request quote | |||
| 43 | BOLTSN: .-UP | 1 | Request quote | |||
| 44 | HOLDERSN: .-UP | 1 | Request quote | |||
| 45 | COVERSN: .-UP | 1 | Request quote | |||
| 46 | COVERSN: .-UP | 1 | Request quote | |||
| 47 | SWITCH ASS'YSN: .-UP | 1 | Request quote | |||
| 48 | SCREWSN: .-UP | 4 | Request quote | |||
| 49 | NUTSN: .-UP | 1 | Request quote | |||
| 50 | NUTSN: .-UP | 1 | Request quote | |||
| 51 | BANDSN: .-UP | 1 | Request quote | |||
| 52 | PLATE,CAUTIONSN: .-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-5L Wheel Loader Starting Motor (7.5Kw) Parts
Use the Komatsu WA380-5L Wheel Loader Starting Motor (7.5Kw) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A52001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 53 listed part occurrences, including starting motor ass'y,(7.5kw) (reference 600-863-5711), pin (reference KD0-23904-0070) and holder (reference KD0-23927-0071). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D114E-2B (engine serial .-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
