Komatsu WA380-5L Wheel Loader Joystick Steering (Lever) Parts
Komatsu WA380-5L joystick steering (lever) parts for machine serial A52001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Joystick Steering (Lever).
Checking current purchase options...

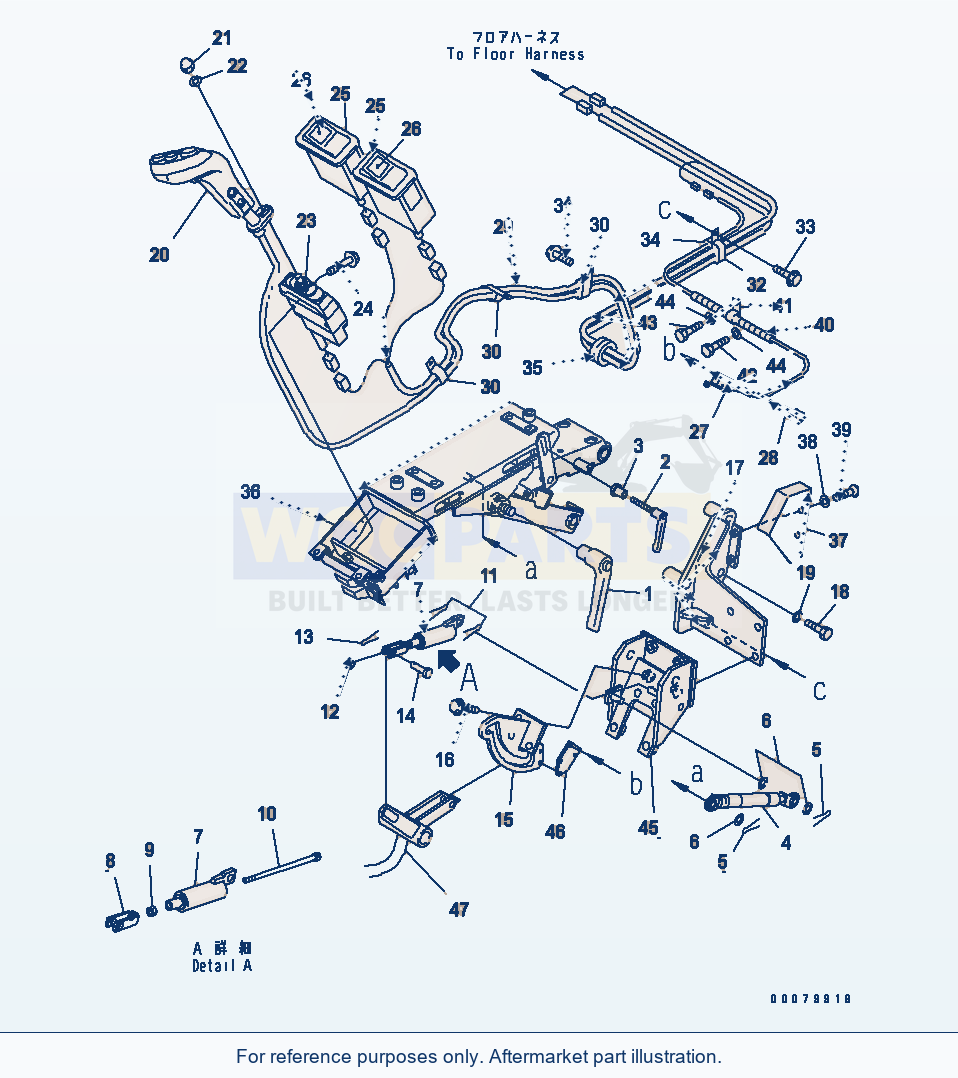

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 48 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LEVERSN: A52001-UP | 1 | Request quote | |||
| 2 | LEVERSN: A52001-UP | 1 | Request quote | |||
| 2 | BOLT,(FOR LOAD METER PRINTER)SN: A52001-UP | 1 | Request quote | |||
| 3 | COLLARSN: A52001-UP | 1 | Request quote | |||
| 4 | GAS SPRINGSN: A52001-UP | 1 | Request quote | |||
| 5 | PIN,COTTERSN: A52001-UP | 2 | Request quote | |||
| 6 | WASHERSN: A52001-UP | 3 | Request quote | |||
| 7 | SPRING ASS'YSN: A52001-UP | 1 | Request quote | |||
| 7 | SPRINGSN: A52001-UP | 1 | Request quote | |||
| 8 | YOKESN: A52001-UP | 1 | Request quote | |||
| 9 | NUTSN: A52001-UP | 1 | Request quote | |||
| 10 | BOLTSN: A52001-UP | 1 | Request quote | |||
| 11 | PIN,COTTERSN: A52001-UP | 2 | Request quote | |||
| 12 | COLLARSN: A52001-UP | 1 | Request quote | |||
| 13 | PIN,COTTERSN: A52001-UP | 1 | Request quote | |||
| 14 | PINSN: A52001-UP | 1 | View product ↗ | |||
| 15 | GUIDESN: A52001-UP | 1 | Request quote | |||
| 16 | BOLTSN: A52001-UP | 3 | View product ↗ | |||
| 17 | BRACKETSN: A52001-UP | 1 | Request quote | |||
| 18 | BOLTSN: A52001-UP | 3 | Request quote | |||
| 19 | WASHERSN: A52001-UP | 3 | View product ↗ | |||
| 20 | KNOBSN: A52001-UP | 1 | Request quote | |||
| 22 | KNOBSN: A52001-UP | 1 | Request quote | |||
| 23 | LEVERSN: A52001-UP | 1 | Request quote | |||
| 24 | SCREWSN: A52001-UP | 2 | Request quote | |||
| 21 | NUTSN: A52001-UP | 1 | Request quote | |||
| 22 | WASHERSN: A52001-UP | 1 | View product ↗ | |||
| 23 | LEVER ASS'YSN: A52001-UP | 1 | Request quote | |||
| 24 | BOLTSN: A52001-UP | 2 | Request quote | |||
| 25 | SWITCHSN: A52001-UP | 2 | Request quote | |||
| 26 | DECALSN: A52001-UP | 1 | Request quote | |||
| 27 | SWITCHSN: A52001-UP | 1 | Request quote | |||
| 28 | SCREWSN: A52001-UP | 2 | Request quote | |||
| 29 | WIRING HARNESSSN: A52001-UP | 1 | Request quote | |||
| 30 | CLIPSN: A52001-UP | 3 | Request quote | |||
| 31 | BOLTSN: A52001-UP | 3 | Request quote | |||
| 32 | CLIPSN: A52001-UP | 1 | Request quote | |||
| 33 | BOLTSN: A52001-UP | 1 | Request quote | |||
| 34 | CLIPSN: A52001-UP | 1 | Request quote | |||
| 35 | GROMMETSN: A52001-UP | 1 | Request quote | |||
| 37 | COVERSN: A52001-UP | 1 | Request quote | |||
| 38 | WASHERSN: A52001-UP | 2 | Request quote | |||
| 39 | SCREWSN: A52001-UP | 2 | Request quote | |||
| 40 | CONDUIT,PVCSN: A52001-UP | 1 | Request quote | |||
| 41 | CLIPSN: A52001-UP | 2 | Request quote | |||
| 42 | BOLTSN: A52001-UP | 2 | Request quote | |||
| 43 | BOLTSN: A52001-UP | 1 | Request quote | |||
| 44 | WASHERSN: A52001-UP | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
BRACKET,(SEE FIG. K0110-06A2)
BRACKET,(SEE FIG. K0110-06A2)
PLATE,(SEE FIG. K0110-06A2)
LEVER,(SEE FIG. K0110-06A2)
Using Komatsu WA380-5L Wheel Loader Joystick Steering (Lever) Parts
Use the Komatsu WA380-5L Wheel Loader Joystick Steering (Lever) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial A52001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 48 listed part occurrences, including lever (reference 421-S33-3640), lever (reference 421-S33-3652) and collar (reference 421-S33-3591). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
