Komatsu WA380-6 Wheel Loader Cylinder Block Serial H60051 - UP Parts
Komatsu WA380-6 cylinder block serial h60051 - up parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Cylinder Block.
Checking current purchase options...

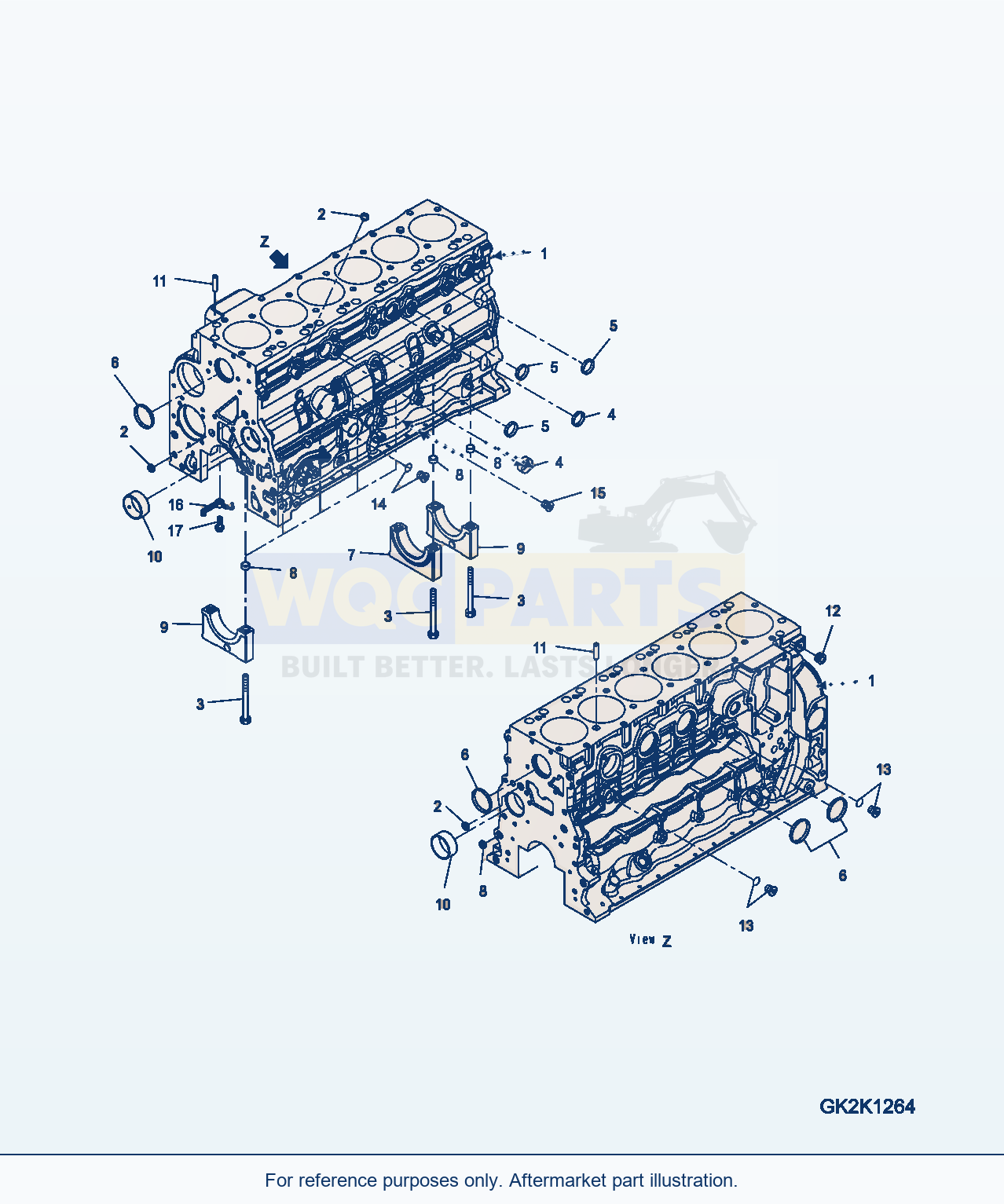

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CYLINDER BLOCK ASSEMBLYSN: 21692067-UP | 1 | Request quote | |||
| 2 | PLUG, EXPANSIONSN: 21692067-UP | 1 | Request quote | |||
| 3 | BOLTSN: 21692067-UP | 14 | Request quote | |||
| 4 | PLUGSN: 21692067-UP | 2 | Request quote | |||
| 5 | PLUGSN: 21692067-UP | 3 | Request quote | |||
| 6 | PLUG, EXPANSIONSN: 21692067-UP | 4 | Request quote | |||
| 8 | CAP, MAIN BEARINGSN: 21692067-UP | 1 | Request quote | |||
| 8 | DOWEL PINSN: 21692067-UP | 2 | Request quote | |||
| 11 | CAP, MAIN BEARINGSN: 21692067-UP | 6 | Request quote | |||
| 8 | DOWEL PINSN: 21692067-UP | 2 | Request quote | |||
| 10 | BUSHSN: 21692067-UP | 2 | View product ↗ | |||
| 11 | DOWEL PINSN: 21692067-UP | 2 | View product ↗ | |||
| 12 | PLUG, THREADEDSN: 21692067-21725787 | 1 | Request quote | |||
| 13 | PLUG, THREADEDSN: 21692021-UP | 2 | Request quote | |||
| 18 | O-RINGSN: 21746787-UP | 1 | View product ↗ | |||
| 19 | PLUGSN: 21746787-UP | 2 | Request quote | |||
| 20 | PLUG, THREADEDSN: 21692067-21746786 | 2 | Request quote | |||
| 14 | PLUG, THREADEDSN: 21692021-UP | 1 | Request quote | |||
| 22 | O-RINGSN: 21746787-UP | 1 | Request quote | |||
| 23 | PLUG, THREADEDSN: 21746787-UP | 1 | Request quote | |||
| 24 | PLUG, THREADEDSN: 21692067-21725787 | 1 | Request quote | |||
| 15 | PLUG, THREADEDSN: 21692067-UP | 1 | Request quote | |||
| 16 | NOZZLE, PISTON COOLINGSN: 21692067-UP | 6 | Request quote | |||
| 17 | JOINTSN: 21692067-UP | 6 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CYLINDER BLOCK | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: CAP, MAIN BEARING | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: CAP, MAIN BEARING | QTY: 1 | OPTIONS: SN: 21692067-UP
Using Komatsu WA380-6 Wheel Loader Cylinder Block Serial H60051 - UP Parts
Use the Komatsu WA380-6 Wheel Loader Cylinder Block Serial H60051 - UP Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including cylinder block assembly (reference 6754-22-1310), plug, expansion (reference 6732-21-1810) and plug (reference 6742-01-1420). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
