Komatsu WA380-6 Wheel Loader Cylinder Head Serial H60051 - UP Parts
Komatsu WA380-6 cylinder head serial h60051 - up parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Cylinder Head.
Checking current purchase options...

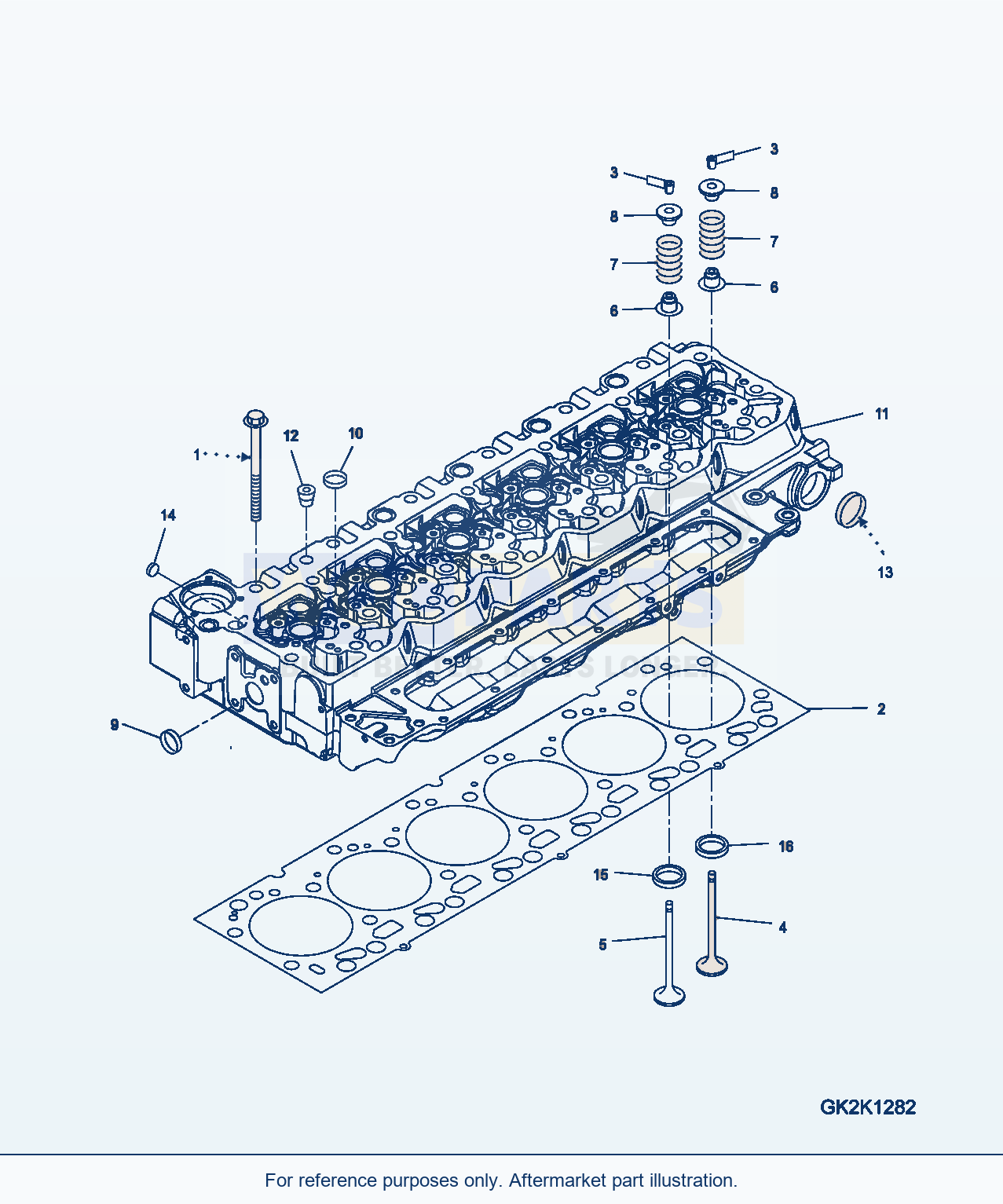

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SCREWSN: 21692067-UP | 26 | Request quote | |||
| 2 | GASKET, CYLINDER HEADSN: 21692067-UP | 1 | View product ↗ | |||
| 3 | HEAD, CYLINDERSN: 21962021-UP | 1 | Request quote | |||
| 4 | HEAD, CYLINDERSN: 21692067-21962020 | 1 | Request quote | |||
| 5 | VALVE ASSEMBLY, EXHAUSTSN: 21692067-UP | 12 | View product ↗ | |||
| 3 | COLLET, VALVESN: 21692067-UP | 2 | View product ↗ | |||
| 8 | VALVE ASSEMBLY, INTAKESN: 21692067-UP | 12 | View product ↗ | |||
| 3 | COLLET, VALVESN: 21692067-UP | 2 | View product ↗ | |||
| 6 | SEAL, VALVE STEMSN: 21692067-UP | 1 | View product ↗ | |||
| 7 | SPRING, VALVESN: 21962021-UP | 24 | Request quote | |||
| 7 | SPRING, VALVESN: 21692067-21962020 | This shows a discontinued part. The part specified in the above line is supplied instead. | 24 | Request quote | |||
| 8 | RETAINER, VALVE SPRINGSN: 21692067-UP | 24 | View product ↗ | |||
| 15 | HEAD, CYLINDERSN: 21962021-UP | 1 | Request quote | |||
| 9 | PLUGSN: 21692067-UP | 13 | Request quote | |||
| 10 | PLUGSN: 21692067-UP | 11 | Request quote | |||
| 12 | PLUGSN: 21692067-UP | 7 | Request quote | |||
| 13 | PLUG, EXPANSIONSN: 21692067-UP | 2 | Request quote | |||
| 14 | PLUG, EXPANSIONSN: 21692067-UP | 2 | Request quote | |||
| 15 | INSERT, VALVESN: 21692067-UP | 12 | View product ↗ | |||
| 15 | INSERT, VALVE (0.127MM OVERSIZE)SN: 21692067-UP | - | Request quote | |||
| 15 | INSERT, VALVE (0.254MM OVERSIZE)SN: 21692067-UP | - | Request quote | |||
| 15 | INSERT, VALVE (0.508MM OVERSIZE)SN: 21692067-UP | - | Request quote | |||
| 16 | INSERT, VALVESN: 21692067-UP | 12 | View product ↗ | |||
| 16 | INSERT, VALVE (0.127MM OVERSIZE)SN: 21692067-UP | - | Request quote | |||
| 16 | INSERT, VALVE (0.254MM OVERSIZE)SN: 21692067-UP | - | Request quote | |||
| 16 | INSERT, VALVE (0.508MM OVERSIZE)SN: 21692067-UP | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: VALVE, EXHAUST | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: VALVE, INTAKE | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: HEAD, CYLINDER | QTY: 1 | OPTIONS: SN: 21692067-21962020
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: HEAD, CYLINDER | QTY: 1 | OPTIONS: SN: 21962021-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: HEAD, CYLINDER | QTY: 1 | OPTIONS: SN: 21692067-21962020
Using Komatsu WA380-6 Wheel Loader Cylinder Head Serial H60051 - UP Parts
Use the Komatsu WA380-6 Wheel Loader Cylinder Head Serial H60051 - UP Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including gasket, cylinder head (reference 6754-11-1811), head, cylinder (reference 6755-11-1010) and head, cylinder (reference 6754-11-1011). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
