Komatsu WA380-6 Wheel Loader Injector Plumbing Parts
Komatsu WA380-6 injector plumbing parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Injector Plumbing.
Checking current purchase options...

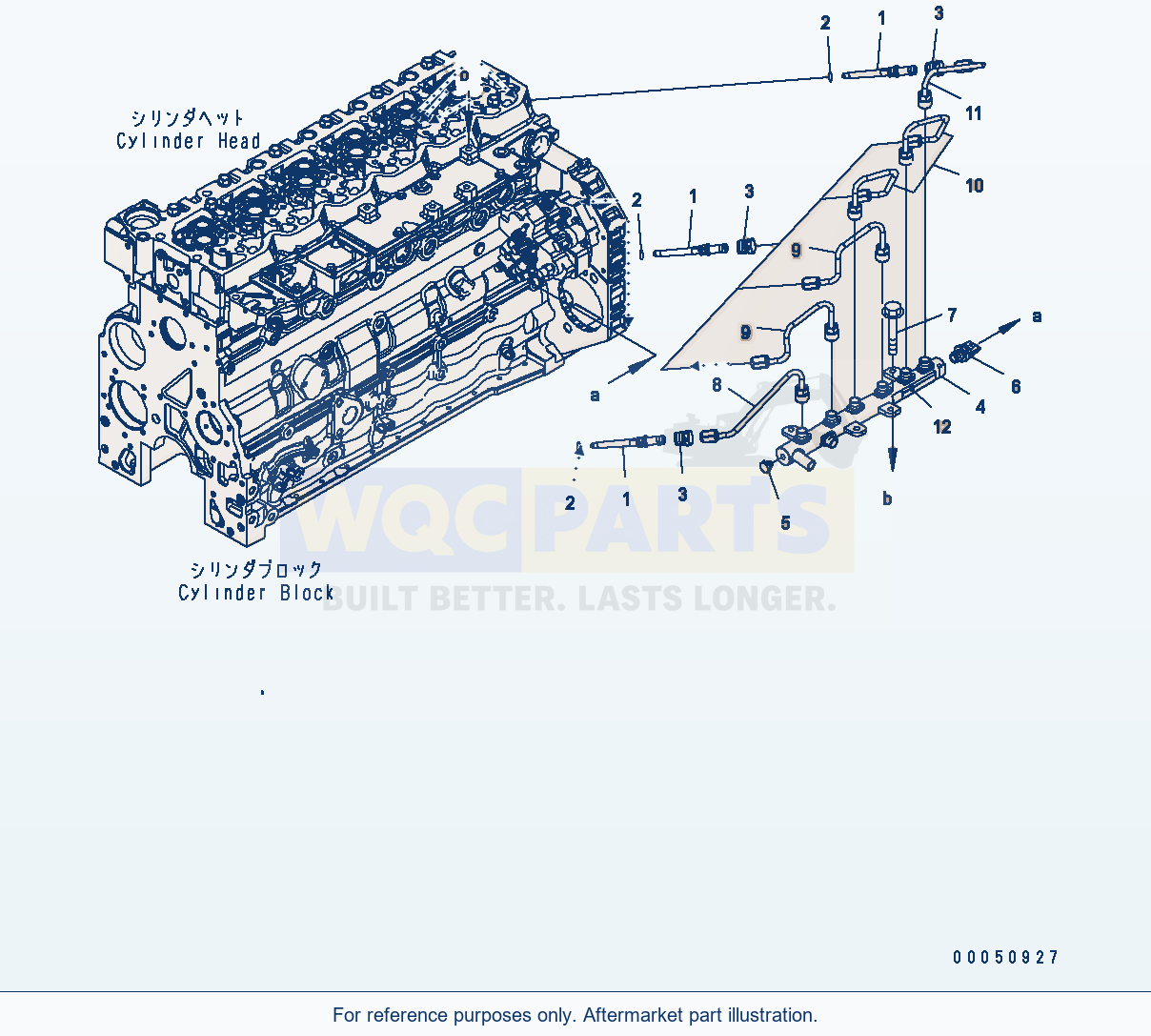

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CONNECTOR ASSEMBLYSN: 21692067-UP | 6 | Request quote | |||
| 2 | SEAL, O-RINGSN: 21692067-UP | 1 | View product ↗ | |||
| 3 | RETAINERSN: 21692067-UP | 6 | Request quote | |||
| 5 | COMMON RAIL ASSEMBLYSN: 21692067-UP | 1 | Request quote | |||
| 5 | VALVE, PRESSURE RELIEFSN: 21692067-UP | 1 | Request quote | |||
| 6 | SENSOR, PRESSURE FUELSN: 21692067-UP | 1 | Request quote | |||
| 7 | BOLTSN: 21692067-UP | 4 | Request quote | |||
| 8 | TUBE, INJECTOR NO.1 CYLINDERSN: 21692067-UP | 1 | Request quote | |||
| 9 | TUBE, INJECTOR NO.2 AND NO.3 CYLINDERSN: 21692067-UP | 2 | Request quote | |||
| 10 | TUBE, INJECTOR NO.4 AND NO.5 CYLINDERSN: 21692067-UP | 2 | Request quote | |||
| 11 | TUBE, INJECTOR NO.6 CYLINDERSN: 21692067-UP | 1 | Request quote | |||
| 12 | DECAL, CAUTIONSN: 21692067-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: CONNECTOR | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: COMMON RAIL | QTY: 1 | OPTIONS: SN: 21692067-UP
Using Komatsu WA380-6 Wheel Loader Injector Plumbing Parts
Use the Komatsu WA380-6 Wheel Loader Injector Plumbing Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including connector assembly (reference 6754-71-5510), retainer (reference 6754-71-5541) and common rail assembly (reference 6754-71-1210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
