Komatsu WA380-6 Wheel Loader Turbocharger, Inner Parts
Komatsu WA380-6 turbocharger, inner parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Turbocharger, Inner Parts.
Checking current purchase options...

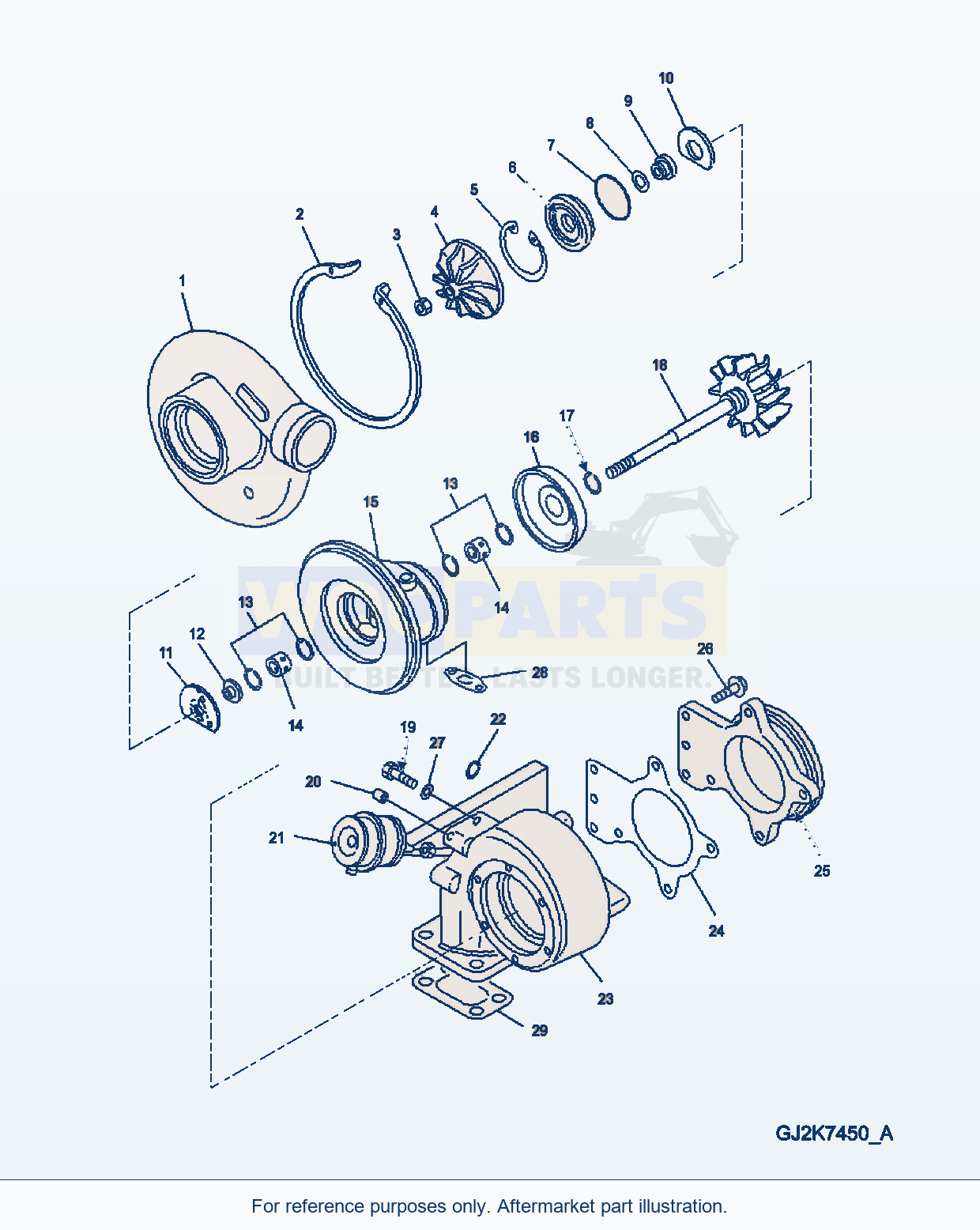

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TURBOCHARGER, KITSN: 21692067-UP | 1 | Request quote | |||
| 2 | CIRCLIPSN: 21692067-UP | 1 | Request quote | |||
| 3 | NUTSN: 21692067-UP | 1 | Request quote | |||
| 5 | SNAP RINGSN: 21692067-UP | 1 | Request quote | |||
| 6 | SEAL PLATESN: 21692067-UP | 1 | Request quote | |||
| 7 | O-RINGSN: 21692067-UP | 1 | Request quote | |||
| 8 | SEALSN: 21692067-UP | 1 | Request quote | |||
| 9 | SLINGERSN: 21692067-UP | 1 | Request quote | |||
| 10 | BAFFLESN: 21692067-UP | 1 | Request quote | |||
| 11 | BEARING, TURBOCHARGER THRUSTSN: 21692067-UP | 1 | Request quote | |||
| 12 | COLLARSN: 21692067-UP | 1 | Request quote | |||
| 13 | RINGSN: 21692067-UP | 4 | Request quote | |||
| 14 | BEARINGSN: 21692067-UP | 2 | Request quote | |||
| 16 | PLATESN: 21692067-UP | 1 | Request quote | |||
| 17 | SEALSN: 21692067-UP | 1 | Request quote | |||
| 18 | SHAFTSN: 21692067-UP | 1 | Request quote | |||
| 19 | BOLTSN: 21692067-UP | 2 | Request quote | |||
| 20 | SPACERSN: 21692067-UP | 1 | Request quote | |||
| 22 | SNAP RINGSN: 21692067-UP | 1 | Request quote | |||
| 23 | HOUSING, TURBINESN: 21692067-UP | 1 | Request quote | |||
| 24 | SEALSN: 21692067-UP | 1 | Request quote | |||
| 25 | ADAPTERSN: 21692067-UP | 1 | Request quote | |||
| 26 | BOLTSN: 21692067-UP | 5 | Request quote | |||
| 27 | WASHERSN: 21692067-UP | 3 | Request quote | |||
| 28 | SEAL, O-RINGSN: 21692067-UP | 1 | Request quote | |||
| 29 | GASKET, OIL DRAINSN: 21692067-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: TURBOCHARGER | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: HOUSING | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: WHEEL | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: HOUSING | QTY: 1 | OPTIONS: SN: 21692067-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 21 | Description: ACTUATOR, TURBOCHARGER | QTY: 1 | OPTIONS: SN: 21692067-UP
Using Komatsu WA380-6 Wheel Loader Turbocharger, Inner Parts
Use the Komatsu WA380-6 Wheel Loader Turbocharger, Inner Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including turbocharger, kit (reference 6754-82-8110), circlip (reference 6735-81-8310) and snap ring (reference 6733-81-8360). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
