Komatsu WA380-6 Wheel Loader Radiator Parts
Komatsu WA380-6 radiator parts for machine serial A54001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cooling System / Radiator.
Checking current purchase options...

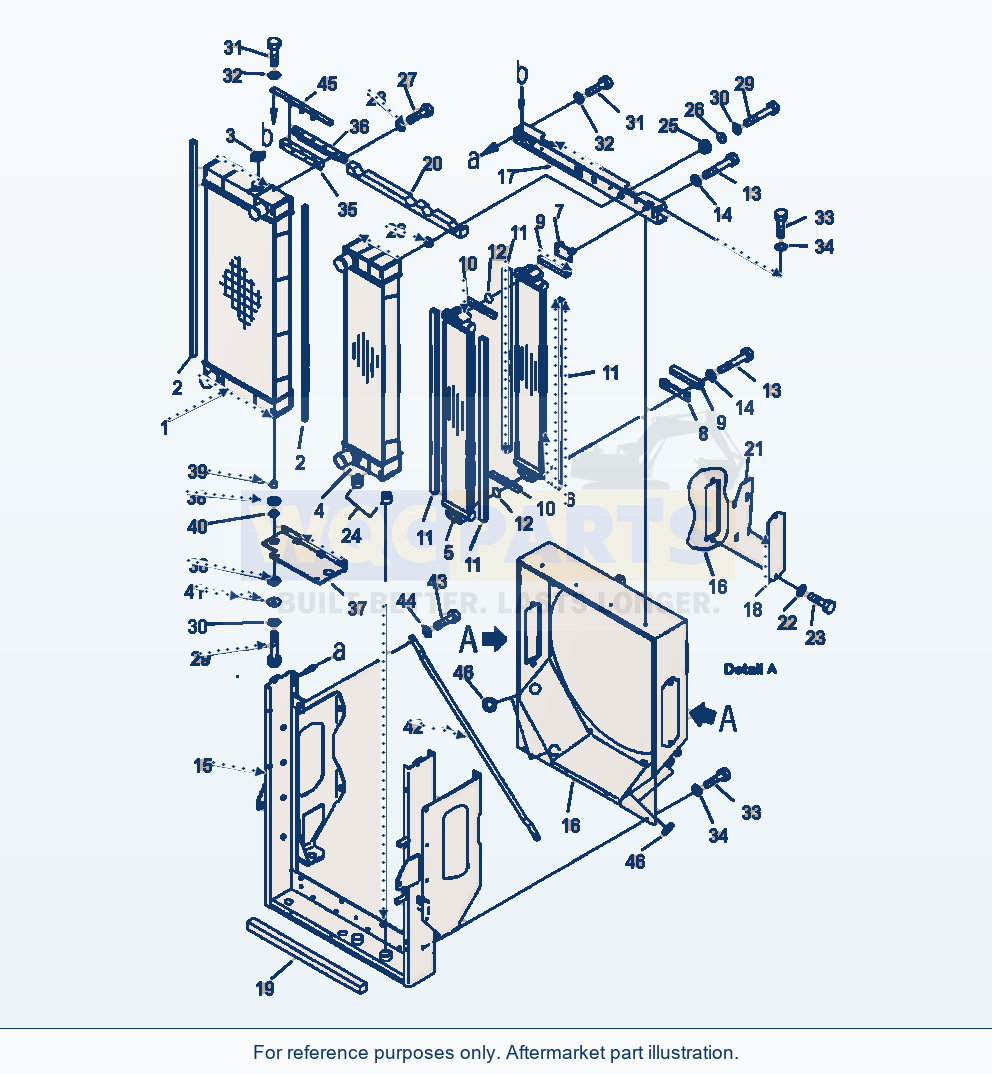

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 48 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | COOLING ASSEMBLYSN: A54001--UP | 1 | Request quote | |||
| 1 | RADIATOR ASSEMBLYSN: A54001--UP | 1 | Request quote | |||
| 2 | SEALSN: A54001--UP | 2 | Request quote | |||
| 3 | CAPSN: A54001--UP | 1 | View product ↗ | |||
| 4 | AFTERCOOLER ASSEMBLYSN: A54001--UP | 1 | Request quote | |||
| 5 | OIL COOLER ASSEMBLYSN: A54001--UP | 1 | Request quote | |||
| 5 | OIL COOLERSN: A54001--UP | 1 | Request quote | |||
| 6 | OIL COOLERSN: A54001--UP | 1 | Request quote | |||
| 7 | PLATESN: A54001--UP | 1 | Request quote | |||
| 8 | PLATESN: A54001--UP | 1 | Request quote | |||
| 9 | SEALSN: A54001--UP | 2 | Request quote | |||
| 10 | SEALSN: A54001--UP | 2 | Request quote | |||
| 11 | SEALSN: A54001--UP | 4 | Request quote | |||
| 12 | O-RINGSN: A54001--UP | 2 | Request quote | |||
| 13 | BOLTSN: A54001--UP | 4 | Request quote | |||
| 14 | WASHERSN: A54001--UP | 4 | View product ↗ | |||
| 15 | FRAMESN: A54001--UP | 1 | Request quote | |||
| 16 | SHROUDSN: A54001--UP | 1 | Request quote | |||
| 17 | BRACKETSN: A54001--UP | 1 | Request quote | |||
| 18 | PLATESN: A54001--UP | 2 | Request quote | |||
| 19 | SEAL (BONDED)SN: A54001--UP | 1 | Request quote | |||
| 20 | SEAL (BONDED)SN: A54001--UP | 1 | Request quote | |||
| 21 | SHEET (BONDED)SN: A54001--UP | 8 | Request quote | |||
| 22 | BOLTSN: A54001--UP | 4 | Request quote | |||
| 23 | WASHERSN: A54001--UP | 4 | Request quote | |||
| 24 | CUSHIONSN: A54001--UP | 2 | Request quote | |||
| 25 | CUSHIONSN: A54001--UP | 2 | Request quote | |||
| 26 | PLATESN: A54001--UP | 8 | Request quote | |||
| 27 | BOLTSN: A54001--UP | 2 | Request quote | |||
| 28 | WASHERSN: A54001--UP | 2 | View product ↗ | |||
| 29 | BOLTSN: A54001--UP | 4 | Request quote | |||
| 30 | WASHERSN: A54001--UP | 4 | View product ↗ | |||
| 31 | BOLTSN: A54001--UP | 14 | Request quote | |||
| 32 | WASHERSN: A54001--UP | 14 | View product ↗ | |||
| 33 | BOLTSN: A54001--UP | 8 | Request quote | |||
| 34 | WASHERSN: A54001--UP | 8 | View product ↗ | |||
| 35 | RUBBERSN: A54001--UP | 1 | Request quote | |||
| 36 | BRACKETSN: A54001--UP | 1 | Request quote | |||
| 37 | BRACKETSN: A54001--UP | 1 | Request quote | |||
| 38 | CUSHIONSN: A54001--UP | 4 | Request quote | |||
| 39 | SPACERSN: A54001--UP | 2 | Request quote | |||
| 40 | CUSHIONSN: A54001--UP | 2 | Request quote | |||
| 41 | WASHERSN: A54001--UP | 2 | Request quote | |||
| 42 | STAYSN: A54001--UP | 1 | Request quote | |||
| 43 | BOLTSN: A54001--UP | 2 | Request quote | |||
| 44 | WASHERSN: A54001--UP | 2 | View product ↗ | |||
| 45 | PLATESN: A54001--UP | 1 | Request quote | |||
| 46 | CAPSN: A54001--UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
