Komatsu WA380-6 Fuel Tank (Fuel Pre-Filter) (Inner Parts) Parts
Komatsu WA380-6 fuel tank (fuel pre-filter) (inner parts) parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: D0 Fuel Tank And Related Parts / Fuel Tank (Fuel Pre-Filter) (Inner Parts).
Checking current purchase options...

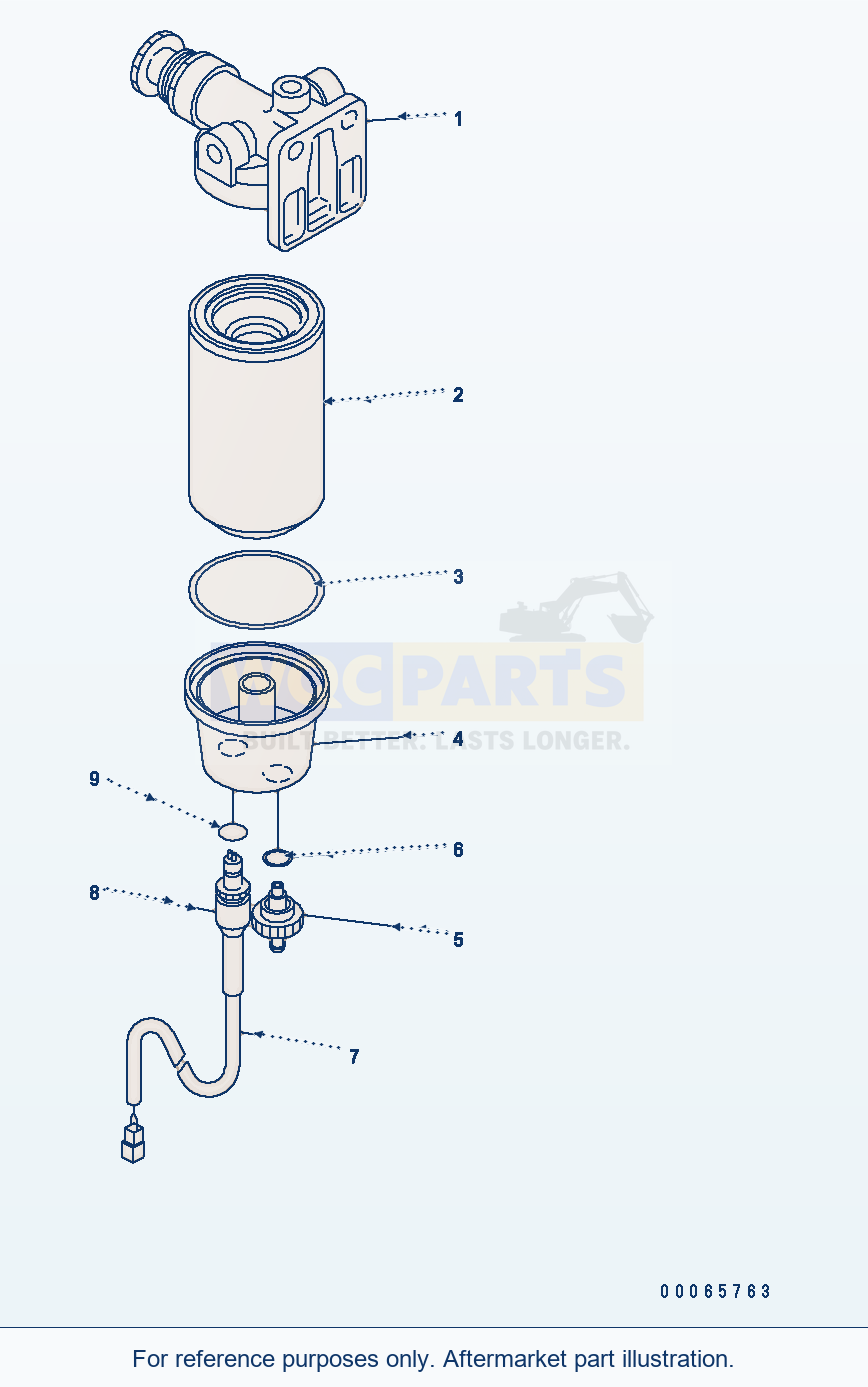

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FILTER ASSEMBLYSN: H60051-UP | 1 | Request quote | |||
| 1 | HEADSN: H60051-UP | 1 | View product ↗ | |||
| 3 | FILTER ASSEMBLYSN: H60051-UP | 1 | Request quote | |||
| 4 | CARTRIDGE ASSEMBLY, FUEL PRE-FILTERSN: H60051-UP | 1 | View product ↗ | |||
| 3 | SEALSN: H60051-UP | 1 | Request quote | |||
| 4 | BOWLSN: H60051-UP | 1 | Request quote | |||
| 8 | VALVE ASSEMBLYSN: H60051-UP | 1 | Request quote | |||
| 5 | VALVESN: H60051-UP | 1 | Request quote | |||
| 6 | SEALSN: H60051-UP | 1 | Request quote | |||
| 11 | SENSOR ASSEMBLYSN: H60051-UP | 1 | View product ↗ | |||
| 9 | O-RINGSN: H60051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: CARTRIDGE | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: TUBE | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: SENSOR | QTY: 1 | OPTIONS: SN: H60051-UP
Using Komatsu WA380-6 Fuel Tank (Fuel Pre-Filter) (Inner Parts) Parts
Use the Komatsu WA380-6 Fuel Tank (Fuel Pre-Filter) (Inner Parts) Parts listing to identify aftermarket replacement parts within the d0 fuel tank and related parts section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including filter assembly (reference 6754-71-7402), head (reference 6754-71-7200) and filter assembly (reference 600-311-3601). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
