Komatsu WA380-6 Wheel Loader Crankshaft Serial A54001-UP Parts
Komatsu WA380-6 crankshaft serial a54001-up parts for machine serial A54001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Crankshaft.
Checking current purchase options...

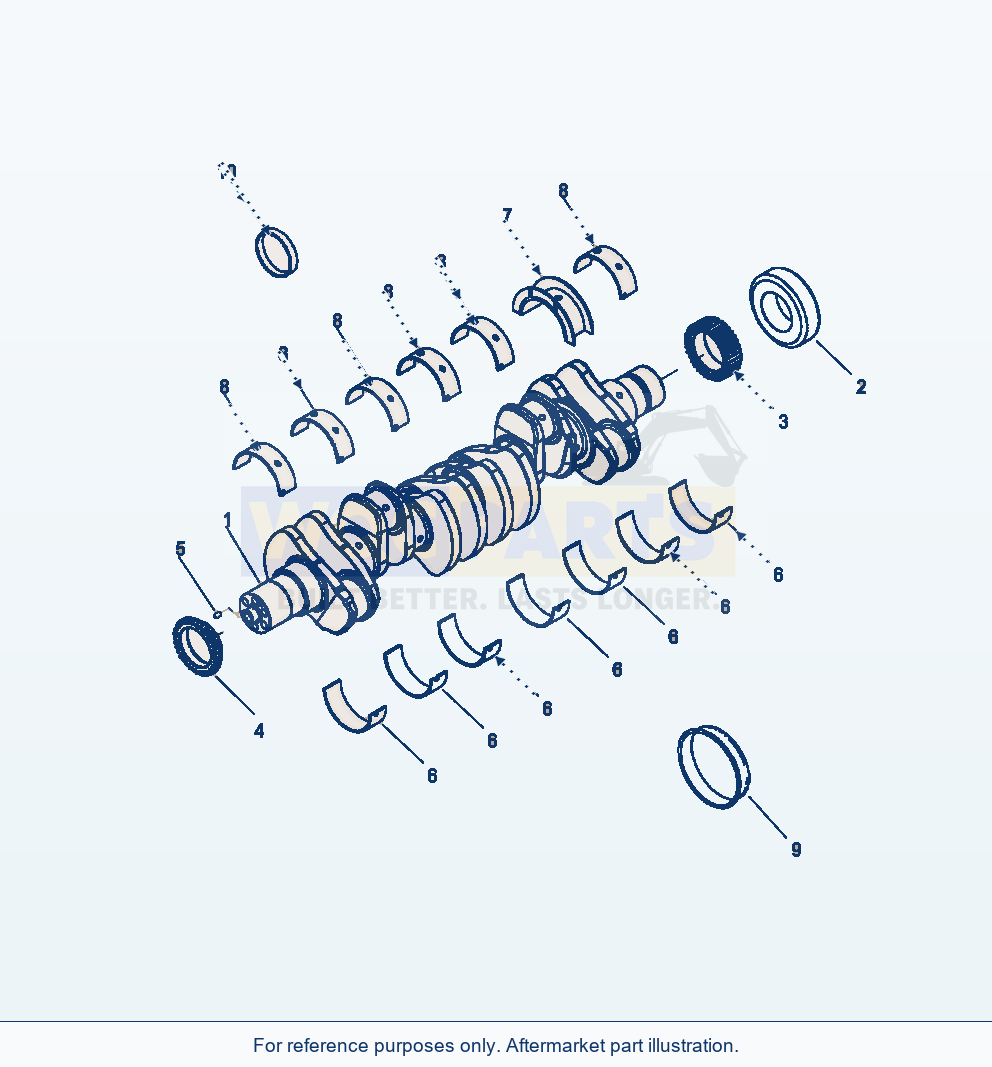

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 41 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CRANKSHAFT ASSEMBLY | 1 | Request quote | |||
| 1 | CRANKSHAFT | 1 | Request quote | |||
| 2 | COLLAR | 1 | Request quote | |||
| 3 | GEAR, CRANKSHAFT | 1 | Request quote | |||
| 4 | GEAR, CRANKSHAFT | 1 | Request quote | |||
| 5 | DOWEL, PIN | 1 | Request quote | |||
| 6 | SET, MAIN BEARING, STANDARD | 1 | View product ↗ | |||
| 6 | BEARING, MAIN | 7 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 8 | BEARING, MAIN | 6 | View product ↗ | |||
| 10 | SET, MAIN BEARING - 0.25 MM OVERSIZE | - | Request quote | |||
| 6 | BEARING, MAIN | 7 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 8 | BEARING, MAIN | 6 | View product ↗ | |||
| 14 | SET, MAIN BEARING - 0.50 MM OVERSIZE | - | View product ↗ | |||
| 6 | BEARING, MAIN | 7 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 8 | BEARING, MAIN | 6 | Request quote | |||
| 18 | SET, MAIN BEARING - 0.75 MM OVERSIZE | - | View product ↗ | |||
| 6 | BEARING, MAIN | 7 | Request quote | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 8 | BEARING, MAIN | 6 | Request quote | |||
| 22 | SET, MAIN BEARING - 1.00 MM OVERSIZE | 1 | View product ↗ | |||
| 6 | BEARING, MAIN | 7 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 8 | BEARING, MAIN | 6 | View product ↗ | |||
| 26 | BEARING, CRANKSHAFT THRUST - 0.50 MM OS | - | View product ↗ | |||
| 6 | BEARING, MAIN | 1 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 29 | BEARING, CRANKSHAFT THRUST - 1.00 MM OS | - | View product ↗ | |||
| 6 | BEARING, MAIN | 1 | View product ↗ | |||
| 7 | BEARING, CRANKSHAFT THRUST | 1 | Request quote | |||
| 9 | KIT, FRONT SEAL | - | View product ↗ | |||
| N/I | SEAL, OIL | 1 | Request quote | |||
| N/I | SLEEVE, WEAR | 1 | Request quote | |||
| N/I | TOOL, SEAL INSTALLATION | 1 | Request quote | |||
| 10 | SEAL KIT, REAR | - | View product ↗ | |||
| N/I | SEAL, OIL | 1 | Request quote | |||
| N/I | SLEEVE, WEAR | 1 | Request quote | |||
| 7 | BEARING, THRUST | - | Request quote | |||
| 7 | BEARING, THRUST | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
SERVICE PARTS:
Using Komatsu WA380-6 Wheel Loader Crankshaft Serial A54001-UP Parts
Use the Komatsu WA380-6 Wheel Loader Crankshaft Serial A54001-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A54001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 41 listed part occurrences, including crankshaft assembly (reference 6754-32-1330), crankshaft (reference 6754-31-1110) and collar (reference 6754-31-1190). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
