Komatsu WA380-6 Transmission (Ecmv For Lock-Up Clutch) Parts
Komatsu WA380-6 transmission (ecmv for lock-up clutch) parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: F0 Transmission / Transmission (Ecmv For Lock-Up Clutch).
Checking current purchase options...

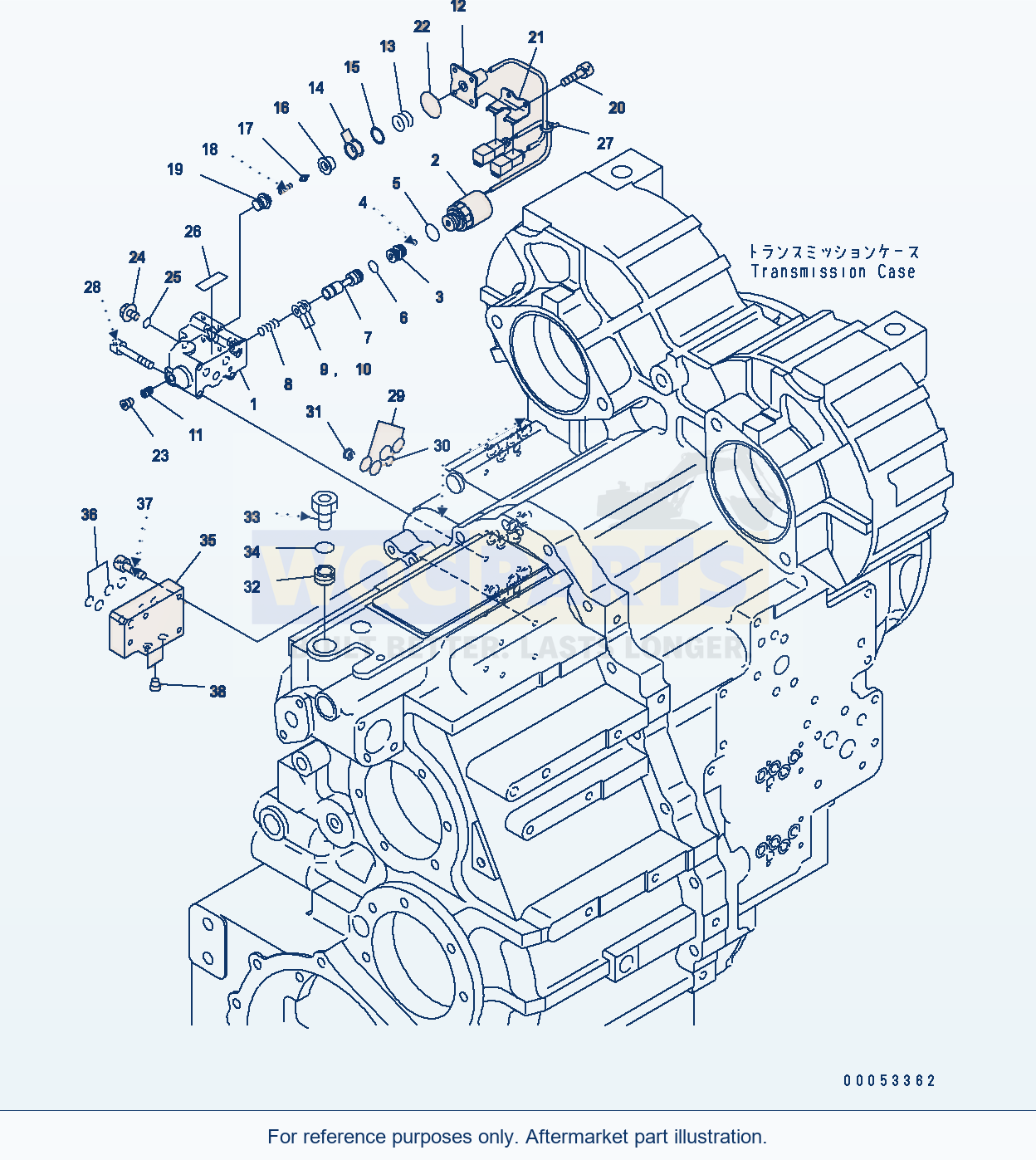

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TRANSMISSION ASSEMBLY, WITH LOCK UPSN: H60716-UP | 1 | Request quote | |||
| 2 | TRANSMISSION ASSEMBLY, WITH LOCK UPSN: H60051-H60715 | 1 | Request quote | |||
| 3 | ECMV ASSEMBLYSN: H60716-UP | 1 | Request quote | |||
| 4 | ECMV ASSEMBLYSN: H60051-H60715 | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 20 | SCREWSN: H60051-UP | 4 | Request quote | |||
| 21 | BRACKETSN: H60051-UP | 1 | Request quote | |||
| 24 | PLUGSN: H60051-UP | 1 | Request quote | |||
| 25 | O-RING, (K2)SN: H60051-UP | 1 | View product ↗ | |||
| 26 | PLATE, (LIMITED SUPPLY)SN: H60051-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 1 | Request quote | |||
| 27 | BAND, WHITESN: H60051-UP | 1 | View product ↗ | |||
| 28 | CAP SCREWSN: H60051-UP | 4 | Request quote | |||
| 29 | O-RING, (K2)SN: H60051-UP | 4 | Request quote | |||
| 30 | O-RING, (K2)SN: H60051-UP | 1 | View product ↗ | |||
| 31 | ORIFICESN: H60051-UP | 1 | Request quote | |||
| 32 | CHOKESN: H60051-UP | 1 | Request quote | |||
| 33 | PLUGSN: H60051-UP | 1 | View product ↗ | |||
| 34 | O-RING, (K2)SN: H60051-UP | 1 | Request quote | |||
| 35 | VALVE SEATSN: H60051-UP | 1 | Request quote | |||
| 36 | O-RING, (K2)SN: H60051-UP | 4 | Request quote | |||
| 37 | BOLTSN: H60051-UP | 5 | Request quote | |||
| 38 | PLUGSN: H60051-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BODY | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: SOLENOID | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: VALVE | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: BALL | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: O-RING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: O-RING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: SPOOL | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: SPRING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: SHIM, 0.5MM | QTY: 3 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: SHIM, 0.2MM | QTY: 3 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLUG | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: SWITCH ASSEMBLY | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: SPRING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: SHIM, 0.5MM | QTY: 2 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 15 | Description: SHIM, 0.2MM | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 16 | Description: SPRING SEAT | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 17 | Description: PIN | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 18 | Description: SPRING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 19 | Description: SLEEVE | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 22 | Description: O-RING | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 23 | Description: PLUG | QTY: 1 | OPTIONS: SN: H60051-UP
Using Komatsu WA380-6 Transmission (Ecmv For Lock-Up Clutch) Parts
Use the Komatsu WA380-6 Transmission (Ecmv For Lock-Up Clutch) Parts listing to identify aftermarket replacement parts within the f0 transmission section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including transmission assembly, with lock up (reference 423-15-H1122), transmission assembly, with lock up (reference 423-15-H1121) and ecmv assembly (reference 714-12-35601). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
