Komatsu WA380-6 Central Lubrication (Grease Pump - Inner Parts) Parts
Komatsu WA380-6 central lubrication (grease pump - inner parts) parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: J0 Main/Revolving Frame And Related Parts / Central Lubrication (Grease Pump - Inner Parts).
Checking current purchase options...

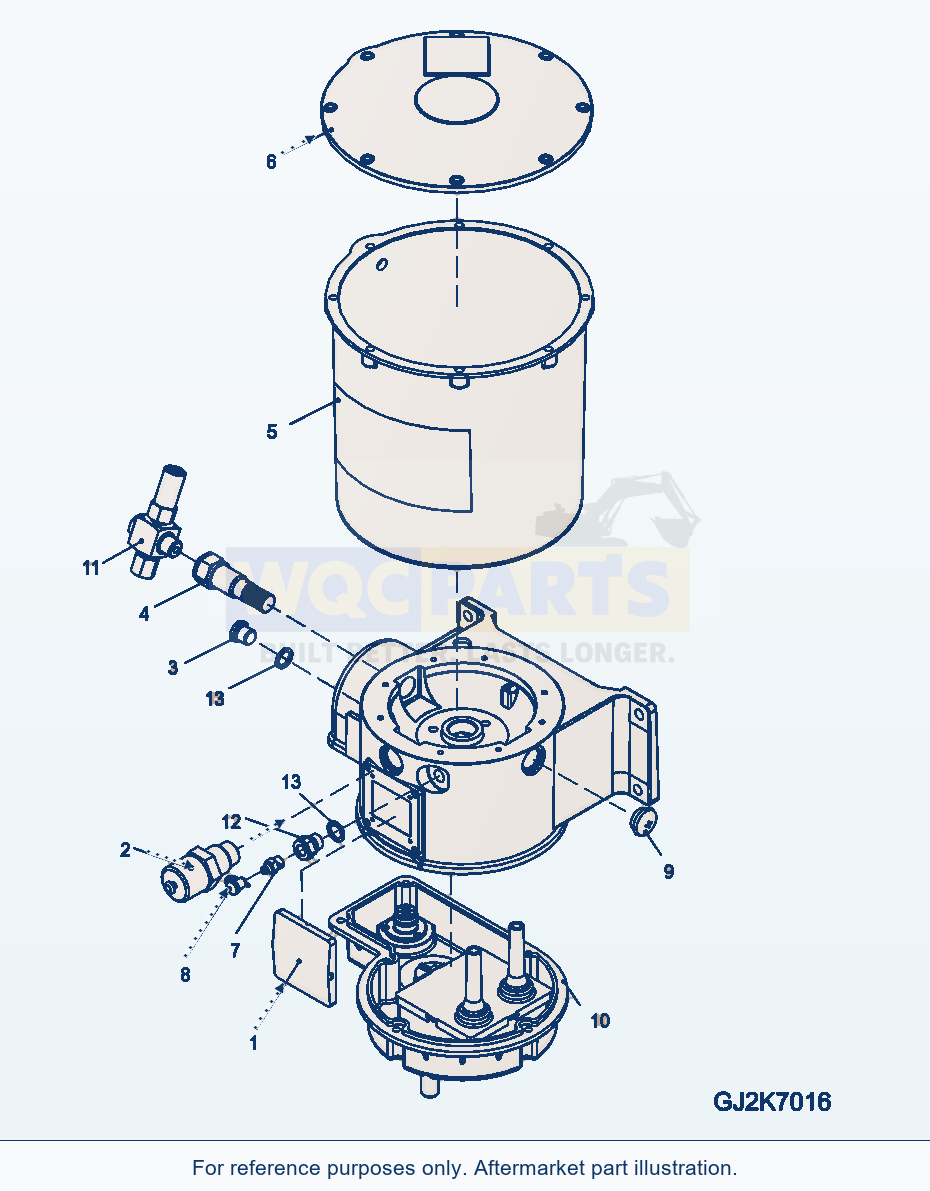

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PUMP ASSEMBLY, (WITHOUT SETTINGS)SN: H60051-UP | 1 | Request quote | |||
| 1 | COVERSN: H60051-UP | 1 | Request quote | |||
| 2 | UNIONSN: H60051-UP | 1 | Request quote | |||
| 3 | PLUGSN: H60051-UP | 1 | Request quote | |||
| 4 | PUMP ELEMENTSN: H60051-UP | 1 | Request quote | |||
| 5 | RESERVOIRSN: H60051-UP | 1 | Request quote | |||
| 7 | FITTINGSN: H60051-UP | 1 | Request quote | |||
| 8 | CAPSN: H60051-UP | 1 | Request quote | |||
| 9 | PLUGSN: H60051-UP | 1 | Request quote | |||
| 11 | VALVESN: H60051-UP | 1 | Request quote | |||
| 12 | ADAPTERSN: H60051-UP | 1 | Request quote | |||
| 13 | SEAL WASHERSN: H60051-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: COVER ASSEMBLY | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: HOUSING WITH CONTROLLING | QTY: 1 | OPTIONS: SN: H60051-UP
Using Komatsu WA380-6 Central Lubrication (Grease Pump - Inner Parts) Parts
Use the Komatsu WA380-6 Central Lubrication (Grease Pump - Inner Parts) Parts listing to identify aftermarket replacement parts within the j0 main/revolving frame and related parts section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including pump assembly, (without settings) (reference 423-S95-HS00), cover (reference 20G-09-H0P00) and union (reference 421-S96-H0P2). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
