Komatsu WA380-6 Wheel Loader Mirror And Rail Parts
Komatsu WA380-6 mirror and rail parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: M0 Guard / Mirror And Rail.
Checking current purchase options...

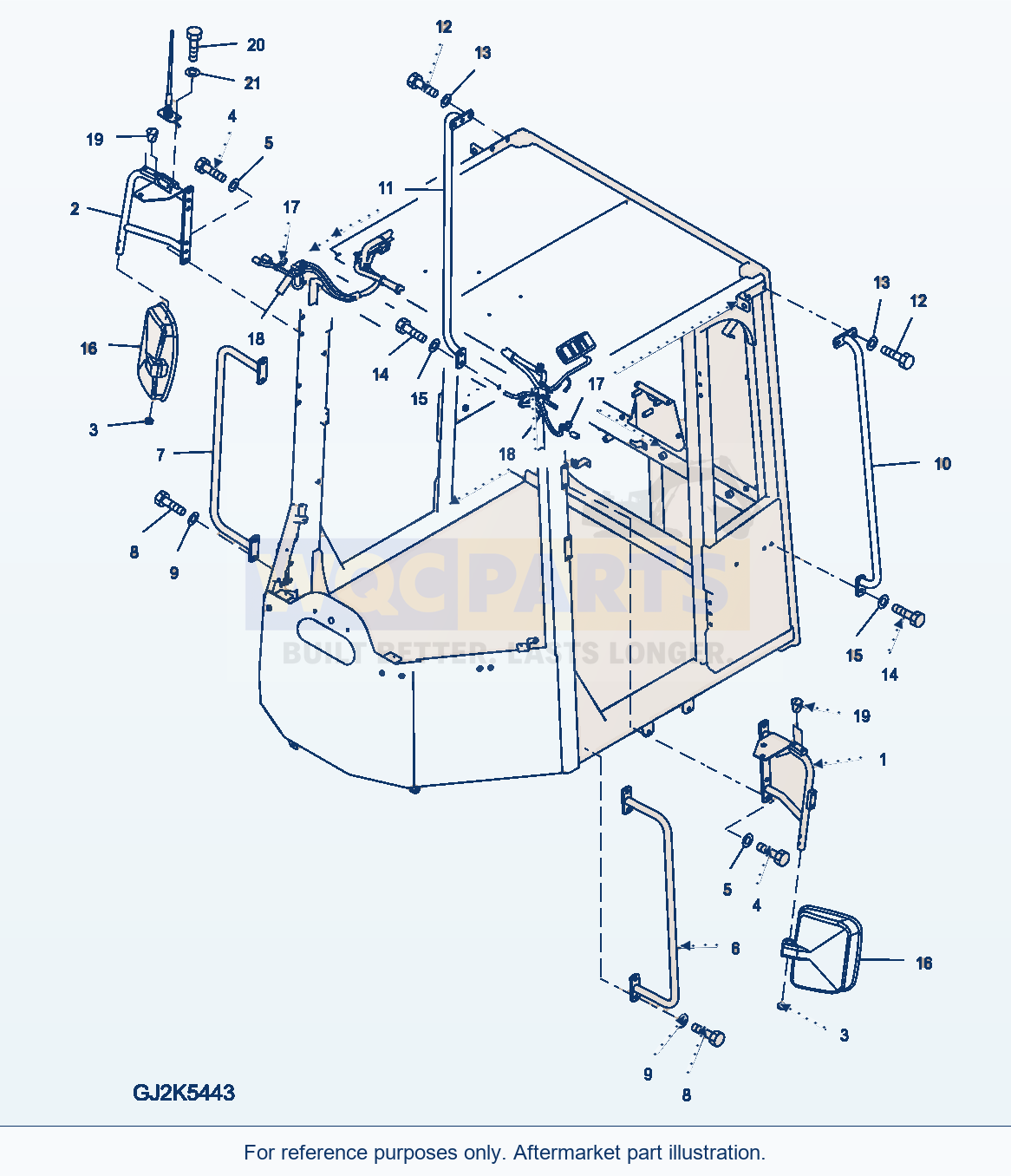

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STAY, LHSSN: H60051-UP | 1 | Request quote | |||
| 2 | STAY, RHSSN: H60051-UP | 1 | Request quote | |||
| 3 | CAPSN: H60051-UP | 2 | Request quote | |||
| 4 | BOLTSN: H60051-UP | 8 | Request quote | |||
| 5 | WASHERSN: H60051-UP | 8 | View product ↗ | |||
| 6 | HANDRAIL, FRONT LHSSN: H60905-UP | 1 | Request quote | |||
| 6 | HANDRAIL, FRONT LHSSN: H60051-H60904 | 1 | Request quote | |||
| 7 | HANDRAIL, FRONT RHSSN: H60905-UP | 1 | Request quote | |||
| 7 | HANDRAIL, FRONT RHSSN: H60051-H60904 | 1 | Request quote | |||
| 8 | BOLTSN: H60051-UP | 8 | Request quote | |||
| 9 | WASHERSN: H60051-UP | 8 | View product ↗ | |||
| 10 | HANDRAIL, REAR LHSSN: H60051-UP | 1 | Request quote | |||
| 11 | HANDRAIL, REAR RHSSN: H60051-UP | 1 | Request quote | |||
| 12 | BOLTSN: H60051-UP | 4 | Request quote | |||
| 13 | WASHERSN: H60051-UP | 4 | View product ↗ | |||
| 14 | BOLTSN: H60051-UP | 2 | Request quote | |||
| 15 | WASHERSN: H60051-UP | 2 | View product ↗ | |||
| 16 | MIRRORSN: H60051-UP | 2 | Request quote | |||
| 17 | BANDSN: H60051-UP | 2 | Request quote | |||
| 18 | BANDSN: H60051-UP | 3 | Request quote | |||
| 19 | PLUGSN: H60051-UP | 4 | View product ↗ | |||
| 20 | BOLTSN: H60051-UP | 2 | View product ↗ | |||
| 21 | WASHERSN: H60051-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-6 Wheel Loader Mirror And Rail Parts
Use the Komatsu WA380-6 Wheel Loader Mirror And Rail Parts listing to identify aftermarket replacement parts within the m0 guard section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including stay, lhs (reference 418-54-H4262), stay, rhs (reference 418-54-H4272) and cap (reference 22M-54-26180). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
