Komatsu WA380-6 Wheel Loader Decal, Exterior (#66090-) Parts
Komatsu WA380-6 decal, exterior (#66090-) parts for machine serial 66090-UP (FOR KAL (CHASSIS ONLY)). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Decal / Decal, Exterior (#66090-).
Checking current purchase options...

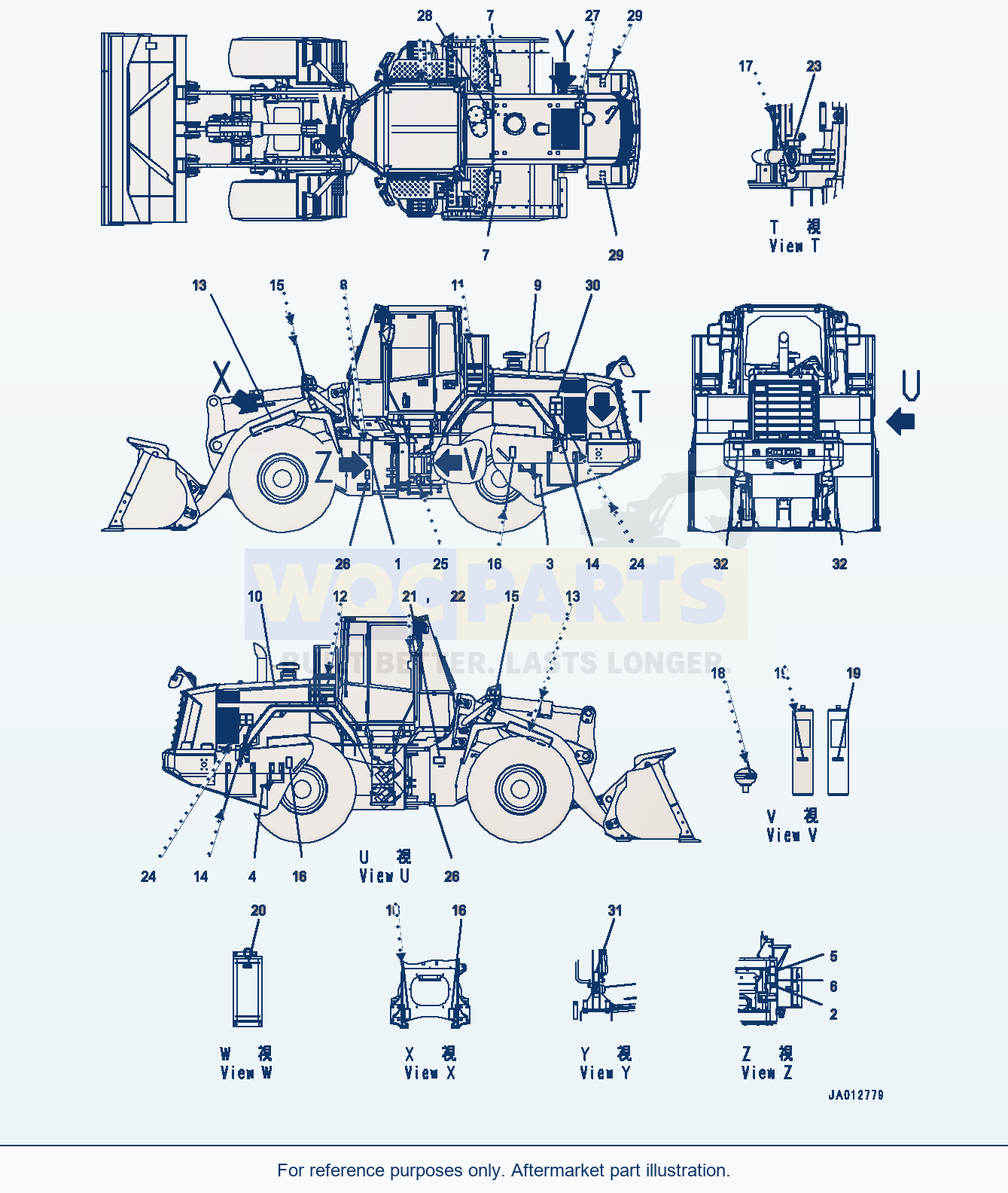

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 27 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE ASSEMBLYSN: 66090-UP | 1 | Request quote | |||
| 7 | PLATE, CAUTION, FENDERSN: 66090-UP | 2 | Request quote | |||
| 8 | OIL CHARTSN: 66090-UP | 1 | Request quote | |||
| 9 | PLATE, MARK, WA380, L.H.SN: 66090-UP | 1 | Request quote | |||
| 10 | PLATE, MARK, WA380. R.H.SN: 66090-UP | 1 | Request quote | |||
| 11 | PLATESN: 66090-UP | 1 | Request quote | |||
| 12 | PLATESN: 66090-UP | 1 | Request quote | |||
| 13 | PLATE, KOMATSU LOGOSN: 66090-UP | 2 | Request quote | |||
| 14 | PLATE, DANGER, KEEP A SAFE DISTANCESN: 66090-UP | 2 | Request quote | |||
| 15 | PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENTSN: 66090-UP | 2 | Request quote | |||
| 16 | MARK, LIFT POINT AND TIE DOWN POINT MARKSSN: 66090-UP | 4 | Request quote | |||
| 17 | PLATE, SYMBOL, FUEL FILLERSN: 66090-UP | 1 | Request quote | |||
| 18 | PLATE, WARNING, EXPLOSION HAZARD, PPCSN: 66090-UP | 1 | Request quote | |||
| 19 | PLATE, WARNING, EXPLOSION HAZARD, BRAKESN: 66090-UP | 2 | Request quote | |||
| 20 | PLATE, WARNING, EXPLOSION HAZARD, ECSSSN: 66090-UP | 1 | Request quote | |||
| 21 | PLATE, NAME (LIMITED SUPPLY)SN: 66090-UP, SCC: C2 | 1 | Request quote | |||
| 22 | SCREWSN: 66090-UP | 4 | Request quote | |||
| 23 | PLATE, CAUTION, ROTATING OBJECTSN: 66090-UP | 1 | Request quote | |||
| 24 | PLATE, CAUTION, ROTATING OBJECTSN: 66090-UP | 2 | Request quote | |||
| 25 | PLATE, WARNING, ARTICULATION LOCKSN: 66090-UP | 1 | Request quote | |||
| 26 | PLATE, DANGER, KEEP OFFSN: 66090-UP | 2 | Request quote | |||
| 27 | PLATE, WARNING, HIGH TEMPERATURESN: 66090-UP | 1 | Request quote | |||
| 28 | PLATE, WARNING, HOT WATERSN: 66090-UP | 1 | Request quote | |||
| 29 | PLATE, WARNING, BATTERY CABLESSN: 66090-UP | 2 | Request quote | |||
| 30 | PLATE, SYMBOL, ECOT3SN: 66090-UP | 1 | Request quote | |||
| 31 | PLATE, PRE FILTER CAUTIONSN: 66090-UP | 1 | Request quote | |||
| 32 | PLATE, REFLECTORSN: 66090-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, REMOTE GREASE, CYLINDER
PLATE, REMOTE GREASE, REAR AXLE
PLATE, RADIATOR DRAIN
PLATE, ENGINE OIL DRAIN
PLATE, PARKING BRAKE EMERGENCY RELEASE METHOD
PLATE, WARNING, PARKING BRAKE EMERGENCY RELEASE
Using Komatsu WA380-6 Wheel Loader Decal, Exterior (#66090-) Parts
Use the Komatsu WA380-6 Wheel Loader Decal, Exterior (#66090-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 66090-UP (FOR KAL (CHASSIS ONLY)); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 27 listed part occurrences, including plate assembly (reference 423-93-41311), plate, caution, fender (reference 09805-03000) and oil chart (reference 423-93-41162). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
