Komatsu WA380-7 Wheel Loader Radiator Parts
Komatsu WA380-7 radiator parts for machine serial A64001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cooling System / Radiator.
Checking current purchase options...

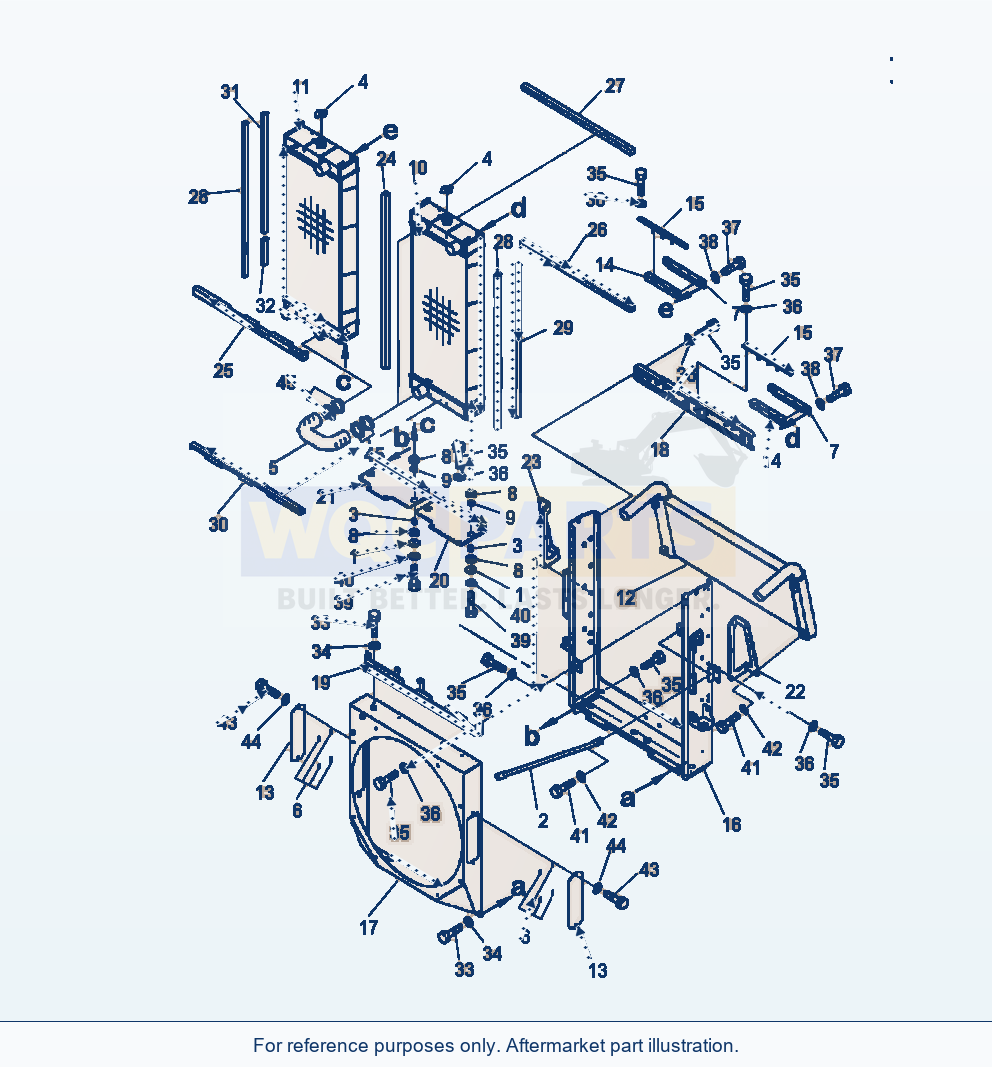

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | RADIATOR ASSEMBLY | 1 | Request quote | |||
| 1 | WASHER | 4 | Request quote | |||
| 2 | STAY | 1 | Request quote | |||
| 3 | SPACER | 4 | Request quote | |||
| 4 | CAP | 2 | View product ↗ | |||
| 5 | HOSE | 2 | Request quote | |||
| 6 | SHEET | 8 | Request quote | |||
| 7 | BRACKET | 2 | Request quote | |||
| 8 | CUSHION | 8 | Request quote | |||
| 9 | CUSHION | 4 | Request quote | |||
| 10 | RADIATOR CORE ASSEMBLY | 1 | Request quote | |||
| 11 | RADIATOR CORE ASSEMBLY | 1 | Request quote | |||
| 12 | AFTERCOOLER ASSEMBLY | 1 | Request quote | |||
| 13 | PLATE | 2 | Request quote | |||
| 14 | RUBBER | 2 | Request quote | |||
| 15 | PLATE | 2 | Request quote | |||
| 16 | FRAME | 1 | Request quote | |||
| 17 | SHROUD | 1 | Request quote | |||
| 18 | BRACKET | 1 | Request quote | |||
| 19 | BRACKET | 1 | Request quote | |||
| 20 | BRACKET | 1 | Request quote | |||
| 21 | BRACKET | 1 | Request quote | |||
| 22 | BRACKET | 1 | Request quote | |||
| 23 | BRACKET | 1 | Request quote | |||
| 24 | SEAL | 1 | Request quote | |||
| 25 | SEAL | 1 | Request quote | |||
| 26 | SEAL | 1 | Request quote | |||
| 27 | SEAL | 1 | Request quote | |||
| 28 | SEAL | 2 | Request quote | |||
| 29 | SEAL | 1 | Request quote | |||
| 30 | SEAL | 1 | Request quote | |||
| 31 | SEAL | 1 | Request quote | |||
| 32 | SEAL | 1 | Request quote | |||
| 33 | BOLT | 6 | Request quote | |||
| 34 | WASHER | 6 | View product ↗ | |||
| 35 | BOLT | 26 | Request quote | |||
| 36 | WASHER | 26 | View product ↗ | |||
| 37 | BOLT | 4 | Request quote | |||
| 38 | WASHER | 4 | View product ↗ | |||
| 39 | BOLT | 4 | Request quote | |||
| 40 | WASHER | 4 | View product ↗ | |||
| 41 | BOLT | 6 | Request quote | |||
| 42 | WASHER | 6 | View product ↗ | |||
| 43 | BOLT | 4 | Request quote | |||
| 44 | WASHER | 4 | View product ↗ | |||
| 45 | CLAMP | 8 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
