Komatsu WA380-7 Wheel Loader Cylinder Head Serial H62051-UP Parts
Komatsu WA380-7 cylinder head serial h62051-up parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2C S/N 22057717-UP (For WA380-7) / Engine A0 Engine Cylinder Head And Its Related Parts / Cylinder Head / Cylinder Head.
Checking current purchase options...

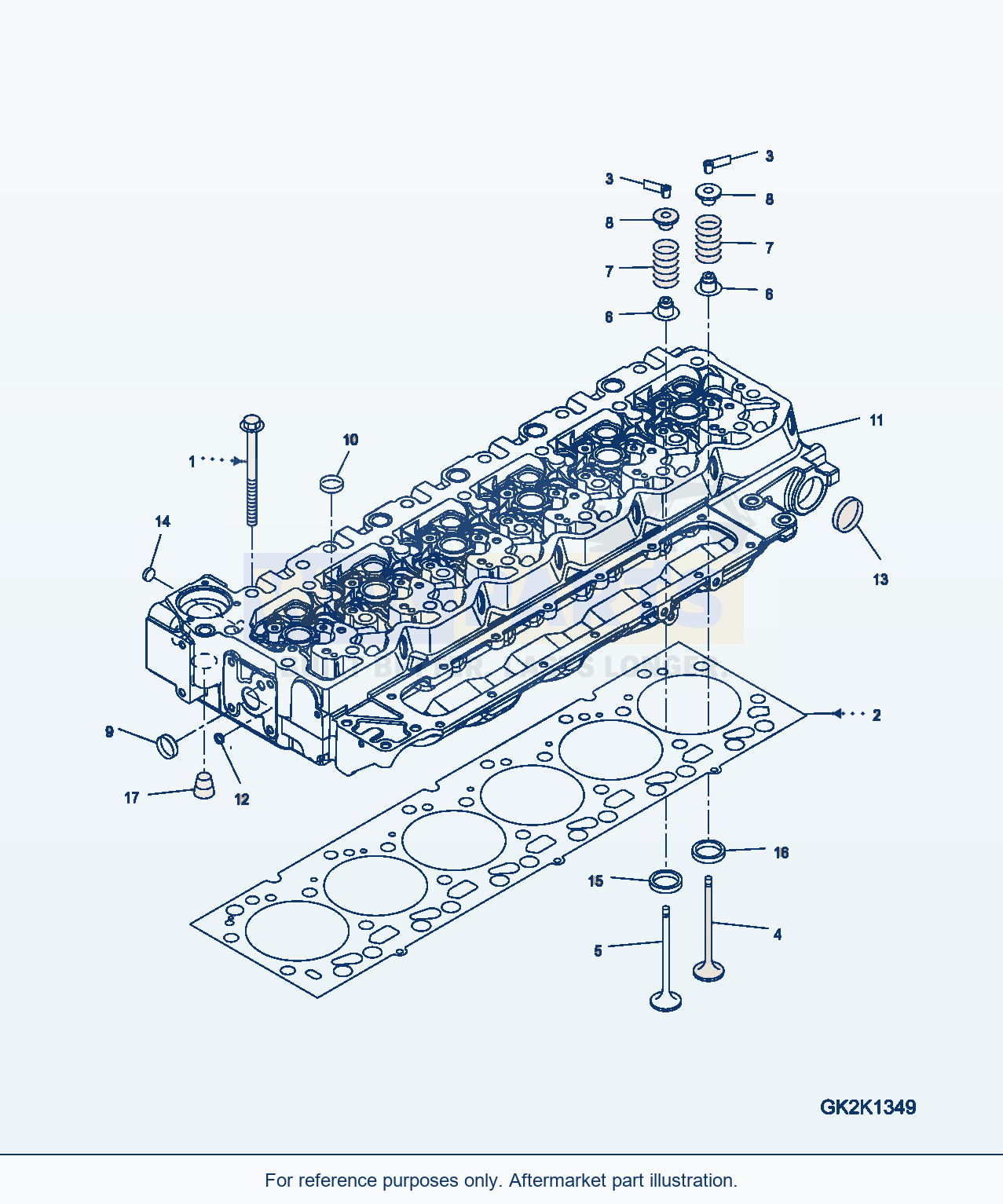

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SCREWSN: 22057717-UP | 26 | Request quote | |||
| 2 | GASKETSN: 22057717-UP | 1 | View product ↗ | |||
| 3 | HEAD, CYLINDERSN: 22057717-UP | 1 | Request quote | |||
| 4 | VALVE ASSEMBLY, EXHAUSTSN: 22057717-UP | 12 | View product ↗ | |||
| 3 | COLLET, VALVESN: 22057717-UP | 2 | View product ↗ | |||
| 7 | VALVE ASSEMBLY, INTAKESN: 22057717-UP | 12 | View product ↗ | |||
| 3 | COLLET, VALVESN: 22057717-UP | 2 | View product ↗ | |||
| 6 | SEALSN: 22057717-UP | 1 | View product ↗ | |||
| 6 | SEALSN: 22057717-UP | 12 | View product ↗ | |||
| 7 | SPRING, VALVESN: 22057717-UP | 24 | Request quote | |||
| 8 | RETAINER, VALVE SPRINGSN: 22057717-UP | 24 | View product ↗ | |||
| 14 | HEAD, CYLINDERSN: 22057717-UP | 1 | Request quote | |||
| 9 | PLUGSN: 22057717-UP | 13 | Request quote | |||
| 10 | PLUG, EXPANSIONSN: 22057717-UP | 11 | Request quote | |||
| 12 | PLUGSN: 22057717-UP | 7 | Request quote | |||
| 13 | PLUG, EXPANSIONSN: 22057717-UP | 2 | Request quote | |||
| 14 | PLUG, EXPANSIONSN: 22057717-UP | 2 | Request quote | |||
| 15 | INSERT, VALVESN: 22057717-UP | 12 | View product ↗ | |||
| 15 | INSERT, VALVE (0.127MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 15 | INSERT, VALVE (0.254MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 15 | INSERT, VALVE (0.508MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 16 | INSERT, VALVESN: 22057717-UP | 12 | View product ↗ | |||
| 16 | INSERT, VALVE (0.127MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 16 | INSERT, VALVE (0.254MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 16 | INSERT, VALVE (0.508MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 17 | PLUGSN: 22057717-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
VALVE, EXHAUST
VALVE, INTAKE
HEAD, CYLINDER
Using Komatsu WA380-7 Wheel Loader Cylinder Head Serial H62051-UP Parts
Use the Komatsu WA380-7 Wheel Loader Cylinder Head Serial H62051-UP Parts listing to identify aftermarket replacement parts within the engine a0 engine cylinder head and its related parts section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including gasket (reference 6754-11-1811), head, cylinder (reference 6755-11-1010) and valve assembly, exhaust (reference 6754-41-4200). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2C (engine serial 22057717-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
