Komatsu WA380-7 Wheel Loader Crankshaft And Bearings Parts
Komatsu WA380-7 crankshaft and bearings parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2C S/N 22057717-UP (For WA380-7) / Engine B0 Engine Cylinder Block And Its Related Parts / Crankshaft And Bearings / Crankshaft And Bearings.
Checking current purchase options...

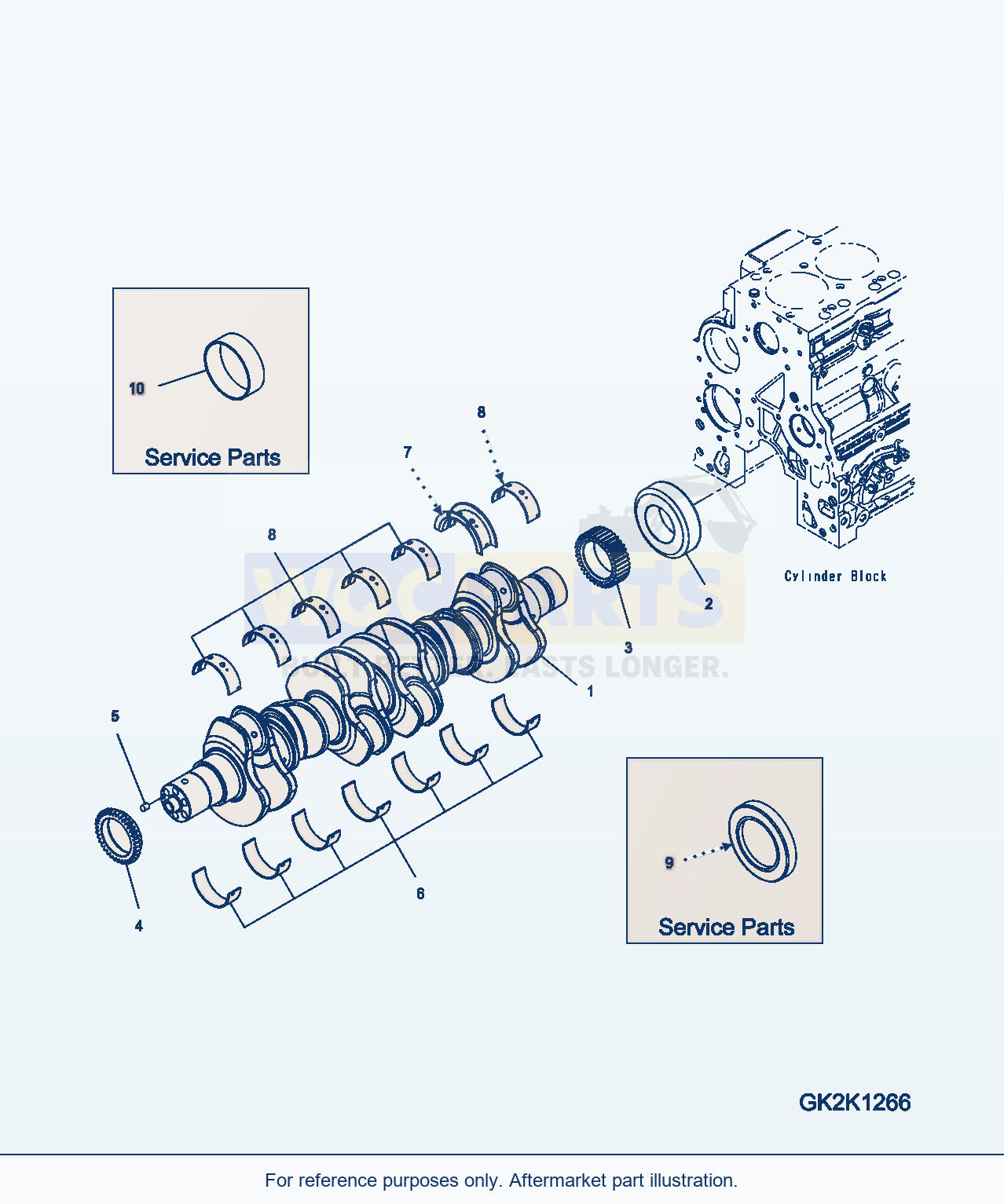

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CRANKSHAFTSN: 22057717-UP | 1 | Request quote | |||
| 2 | CRANKSHAFTSN: 22057717-UP | 1 | Request quote | |||
| 3 | GEAR, CRANKSHAFTSN: 22057717-UP | 1 | Request quote | |||
| 5 | PINSN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING, MAIN SET STANDARDSN: 22057717-UP | - | View product ↗ | |||
| 6 | BEARING (STD)SN: 22057717-UP | 7 | View product ↗ | |||
| 7 | BEARING (STD)SN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING (STD)SN: 22057717-UP | 6 | View product ↗ | |||
| 12 | BEARING, MAIN SET (0.10MM OS)SN: 22057717-UP | - | View product ↗ | |||
| 6 | BEARING (0.25MM OS)SN: 22057717-UP | 7 | View product ↗ | |||
| 7 | BEARING (0.25MM OS)SN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING (0.25MM OS)SN: 22057717-UP | 6 | View product ↗ | |||
| 16 | BEARING, MAIN SET (0.25MM OS)SN: 22057717-UP | - | View product ↗ | |||
| 6 | BEARING (0.50MM OS)SN: 22057717-UP | 7 | View product ↗ | |||
| 7 | BEARING (0.50MM OS) (0.50MM THRUST WASHER OS)SN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING (0.50MM OS)SN: 22057717-UP | 6 | Request quote | |||
| 20 | BEARING, MAIN SET (0.30MM OS)SN: 22057717-UP | - | View product ↗ | |||
| 6 | BEARING (0.75MM OS)SN: 22057717-UP | 7 | View product ↗ | |||
| 7 | BEARING (0.75MM OS)SN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING (0.75MM OS)SN: 22057717-UP | 6 | Request quote | |||
| 24 | BEARING, MAIN SET (0.40MM OS)SN: 22057717-UP | - | View product ↗ | |||
| 6 | BEARING (1.00MM OS)SN: 22057717-UP | 7 | View product ↗ | |||
| 7 | BEARING (1.00MM OS)SN: 22057717-UP | 1 | Request quote | |||
| 8 | BEARING (1.00MM OS)SN: 22057717-UP | 6 | View product ↗ | |||
| 7 | BEARING (0.50MM OS) (0.25MM THRUST WASHER OS)SN: 22057717-UP | - | Request quote | |||
| 7 | BEARING (1.00MM OS)SN: 22057717-UP | - | Request quote | |||
| 9 | SLEEVESN: 22057717-UP | - | View product ↗ | |||
| 10 | REAR SEAL WEAR SLEEVE KITSN: 22057717-UP | - | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CRANKSHAFT, ENGINE
COLLAR, SHAFT
GEAR, CRANKSHAFT
Using Komatsu WA380-7 Wheel Loader Crankshaft And Bearings Parts
Use the Komatsu WA380-7 Wheel Loader Crankshaft And Bearings Parts listing to identify aftermarket replacement parts within the engine b0 engine cylinder block and its related parts section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including crankshaft (reference 6754-32-1320), crankshaft (reference 6754-32-1330) and gear, crankshaft (reference 6754-31-1330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2C (engine serial 22057717-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
