Komatsu WA380-7 Piston And Connecting Rod Serial H62051-UP Parts
Komatsu WA380-7 piston and connecting rod serial h62051-up parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2C S/N 22057717-UP (For WA380-7) / Engine B0 Engine Cylinder Block And Its Related Parts / Piston And Connecting Rod / Piston And Connecting Rod.
Checking current purchase options...

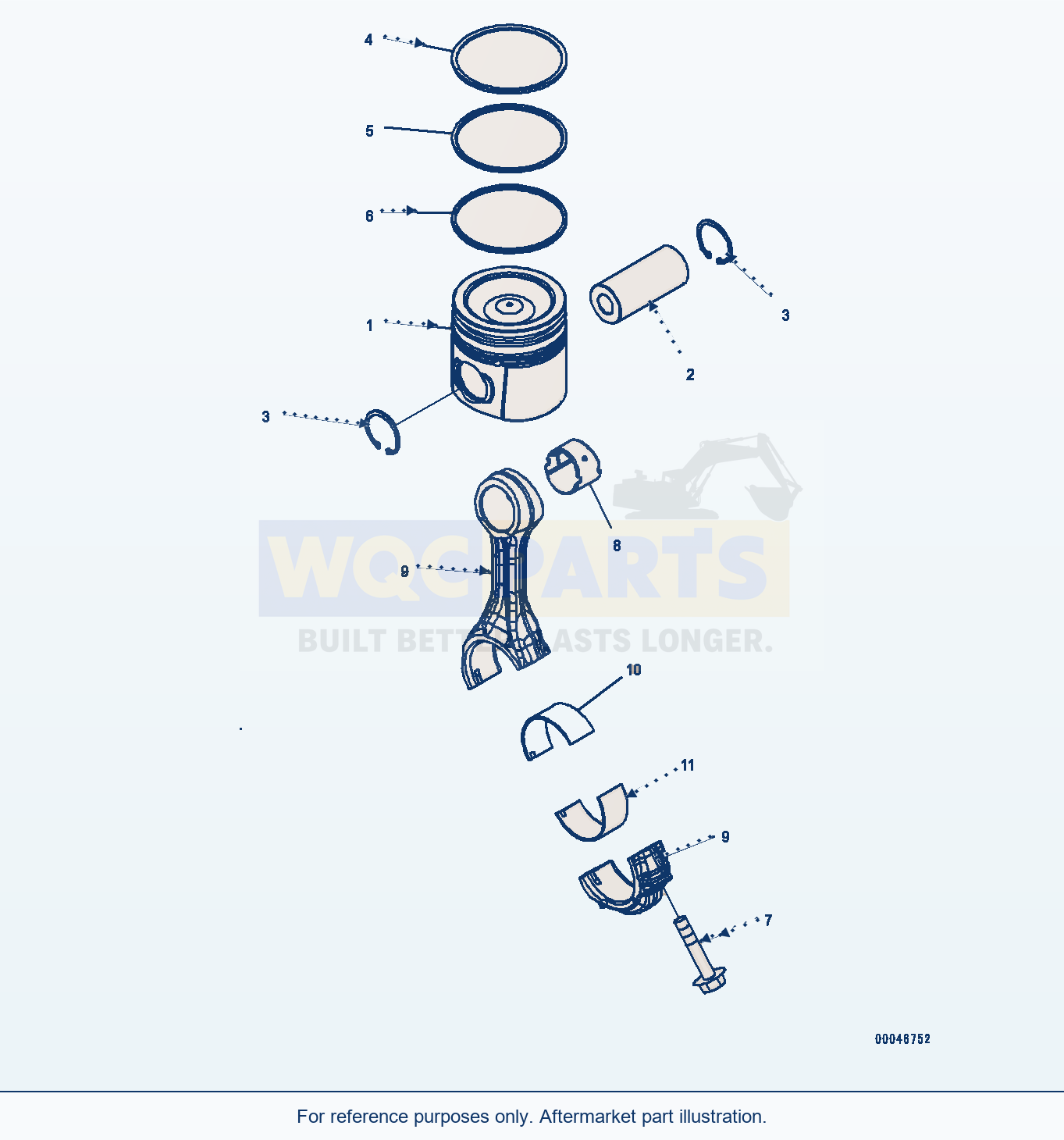

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PISTONSN: 22057717-UP | 6 | Request quote | |||
| 2 | PISTON, ENGINE (0.50MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 2 | PINSN: 22057717-UP | 6 | View product ↗ | |||
| 3 | RINGSN: 22057717-UP | 12 | View product ↗ | |||
| 5 | RING ASSEMBLYSN: 22057717-UP | 6 | View product ↗ | |||
| 4 | RING, TOPSN: 22057717-UP | 1 | Request quote | |||
| 5 | RING, 2NDSN: 22057717-UP | 1 | Request quote | |||
| 6 | RING, OILSN: 22057717-UP | 1 | Request quote | |||
| 9 | CONNECTING ROD ASSEMBLYSN: 22057717-UP | 6 | Request quote | |||
| 7 | BOLTSN: 22057717-UP | 2 | Request quote | |||
| 8 | BUSHINGSN: 22057717-UP | 1 | Request quote | |||
| 9 | ROD, CONNECTINGSN: 22057717-UP | 1 | Request quote | |||
| 10 | BEARING, UPPERSN: 22057717-UP | 6 | Request quote | |||
| 10 | BEARING, CONNECTING ROD (0.25MM OVERSIZE)SN: 22057717-UP | - | View product ↗ | |||
| 10 | BEARING, CONNECTING ROD (0.50MM OVERSIZE)SN: 22057717-UP | - | View product ↗ | |||
| 10 | BEARING, CONNECTING ROD (0.75MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 10 | BEARING, CONNECTING ROD (1.00MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 11 | METAL, LOWERSN: 22057717-UP | 6 | Request quote | |||
| 11 | BEARING, CONNECTING ROD (0.25MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 11 | BEARING, CONNECTING ROD (0.50MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 11 | BEARING, CONNECTING ROD (0.75MM OVERSIZE)SN: 22057717-UP | - | Request quote | |||
| 11 | BEARING, CONNECTING ROD (1.00MM OVERSIZE)SN: 22057717-UP | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Piston And Connecting Rod Serial H62051-UP Parts
Use the Komatsu WA380-7 Piston And Connecting Rod Serial H62051-UP Parts listing to identify aftermarket replacement parts within the engine b0 engine cylinder block and its related parts section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including piston (reference CU5274516), piston, engine (0.50mm oversize) (reference CU5274517) and pin (reference 6754-31-2410). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2C (engine serial 22057717-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
