Komatsu WA380-7 Fuel Filter Location (Aff10-001001) Parts
Komatsu WA380-7 fuel filter location (aff10-001001) parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2C S/N 22057717-UP (For WA380-7) / Engine D0 Engine Fuel System / Fuel Filter Location / Fuel Filter Location (Aff10-001001).
Checking current purchase options...

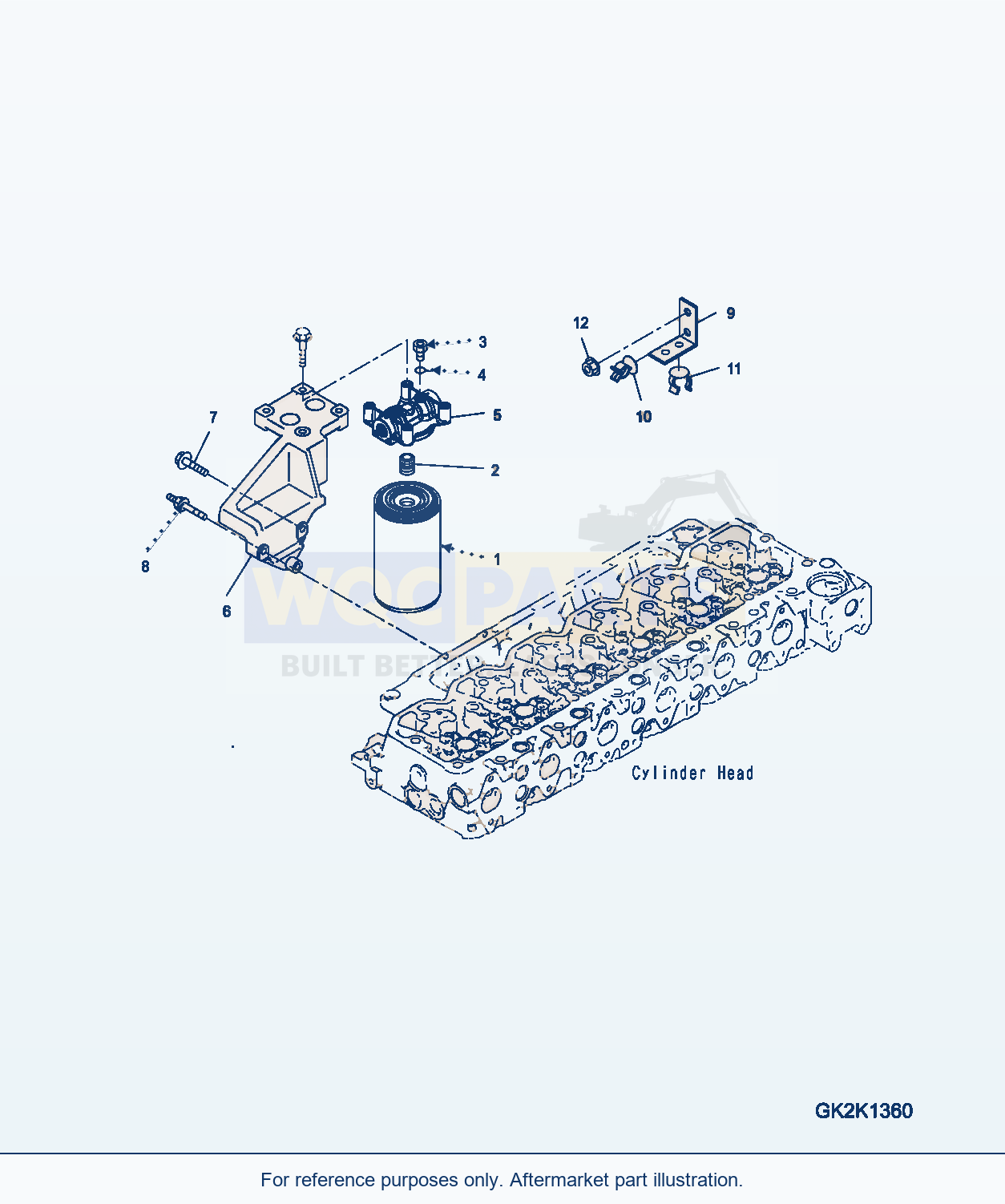

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FILTER, FUELSN: 22057717-UP | 1 | Request quote | |||
| 1 | CARTRIDGE, FUEL FILTERSN: 22057717-UP | 1 | View product ↗ | |||
| 2 | ADAPTERSN: 22057717-UP | 1 | Request quote | |||
| 4 | PLUG, THREADEDSN: 22057717-UP | 2 | Request quote | |||
| 4 | O-RINGSN: 22057717-UP | 1 | Request quote | |||
| 5 | HEAD, FUEL FILTERSN: 22057717-UP | 1 | Request quote | |||
| 6 | SUPPORT, FILTERSN: 22057717-UP | 1 | Request quote | |||
| 7 | BOLTSN: 22057717-UP | 1 | Request quote | |||
| 8 | BOLTSN: 22057717-UP | 1 | Request quote | |||
| 9 | BRACE, TUBESN: 22057717-UP | 1 | Request quote | |||
| 10 | CLIPSN: 22057717-UP | 1 | Request quote | |||
| 11 | CLIPSN: 22057717-UP | 2 | Request quote | |||
| 12 | NUTSN: 22057717-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLUG, THREADED
Using Komatsu WA380-7 Fuel Filter Location (Aff10-001001) Parts
Use the Komatsu WA380-7 Fuel Filter Location (Aff10-001001) Parts listing to identify aftermarket replacement parts within the engine d0 engine fuel system section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including filter, fuel (reference 6754-72-6330), cartridge, fuel filter (reference 6754-71-6140) and adapter (reference 6754-71-6330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2C (engine serial 22057717-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
