Komatsu WA380-7 Cooling Fan Drive, Pilot Spacer (Afa20-001001) Parts
Komatsu WA380-7 cooling fan drive, pilot spacer (afa20-001001) parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-2C S/N 22057717-UP (For WA380-7) / Engine E0 Engine Cooling System / Cooling Fan Drive, Pilot Spacer / Cooling Fan Drive, Pilot Spacer (Afa20-001001).
Checking current purchase options...

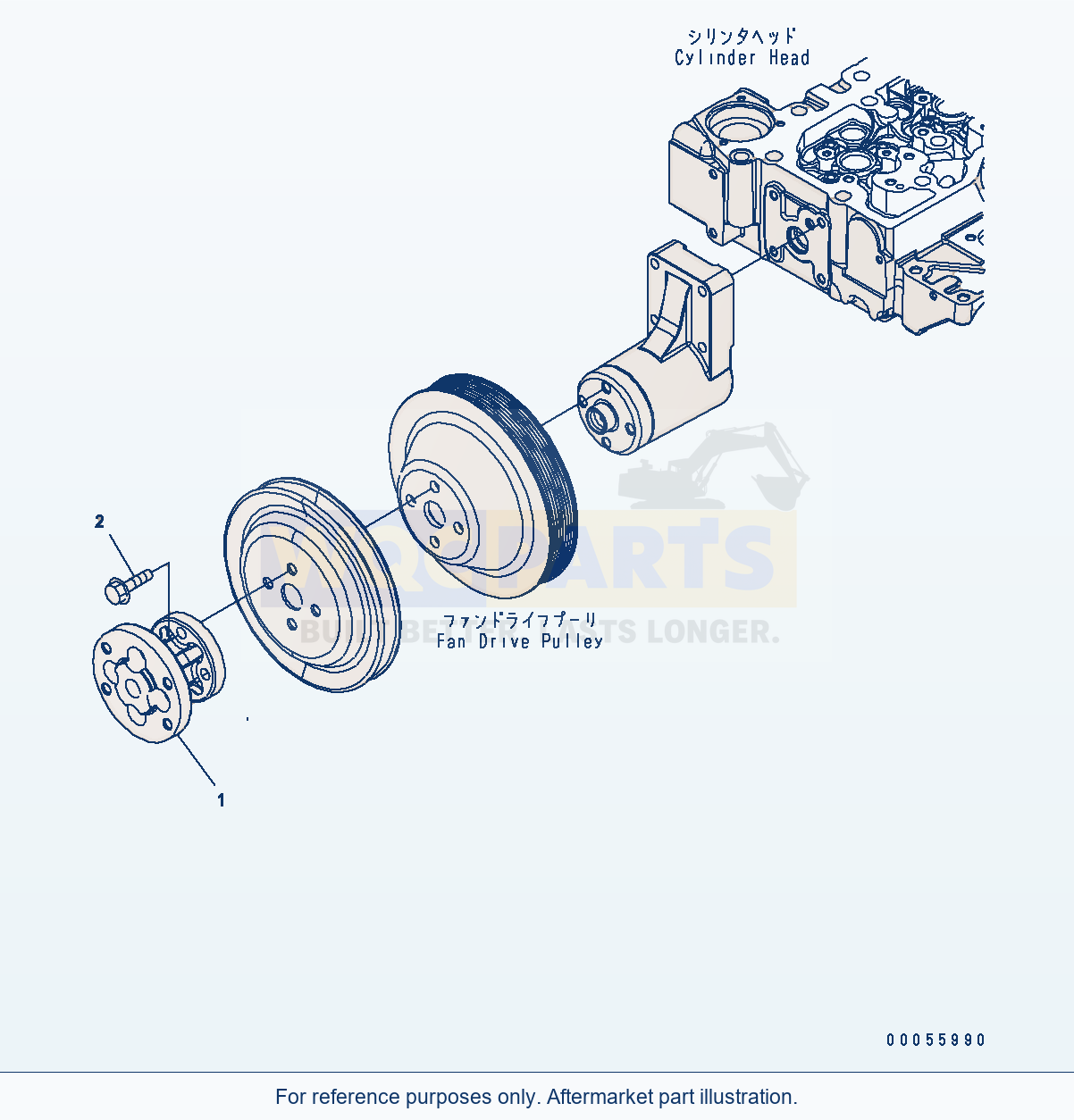

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 2 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SPACER, FANSN: 22057717-UP | 1 | Request quote | |||
| 2 | BOLTSN: 22057717-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Cooling Fan Drive, Pilot Spacer (Afa20-001001) Parts
Use the Komatsu WA380-7 Cooling Fan Drive, Pilot Spacer (Afa20-001001) Parts listing to identify aftermarket replacement parts within the engine e0 engine cooling system section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 2 listed part occurrences, including spacer, fan (reference 6732-61-3610) and bolt (reference 6216-74-6190). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-2C (engine serial 22057717-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
When comparing cooling-system parts, check the engine designation and any fan, pump or connection options recorded in the selected diagram. A matching machine family alone does not establish the cooling arrangement.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
