Komatsu WA380-7 Fuel Tank Fuel Level Sensor And Mounting Parts
Komatsu WA380-7 fuel tank fuel level sensor and mounting parts for machine serial A64001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Fuel Tank And Related Parts / Fuel Tank Fuel Level Sensor And Mounting.
Checking current purchase options...

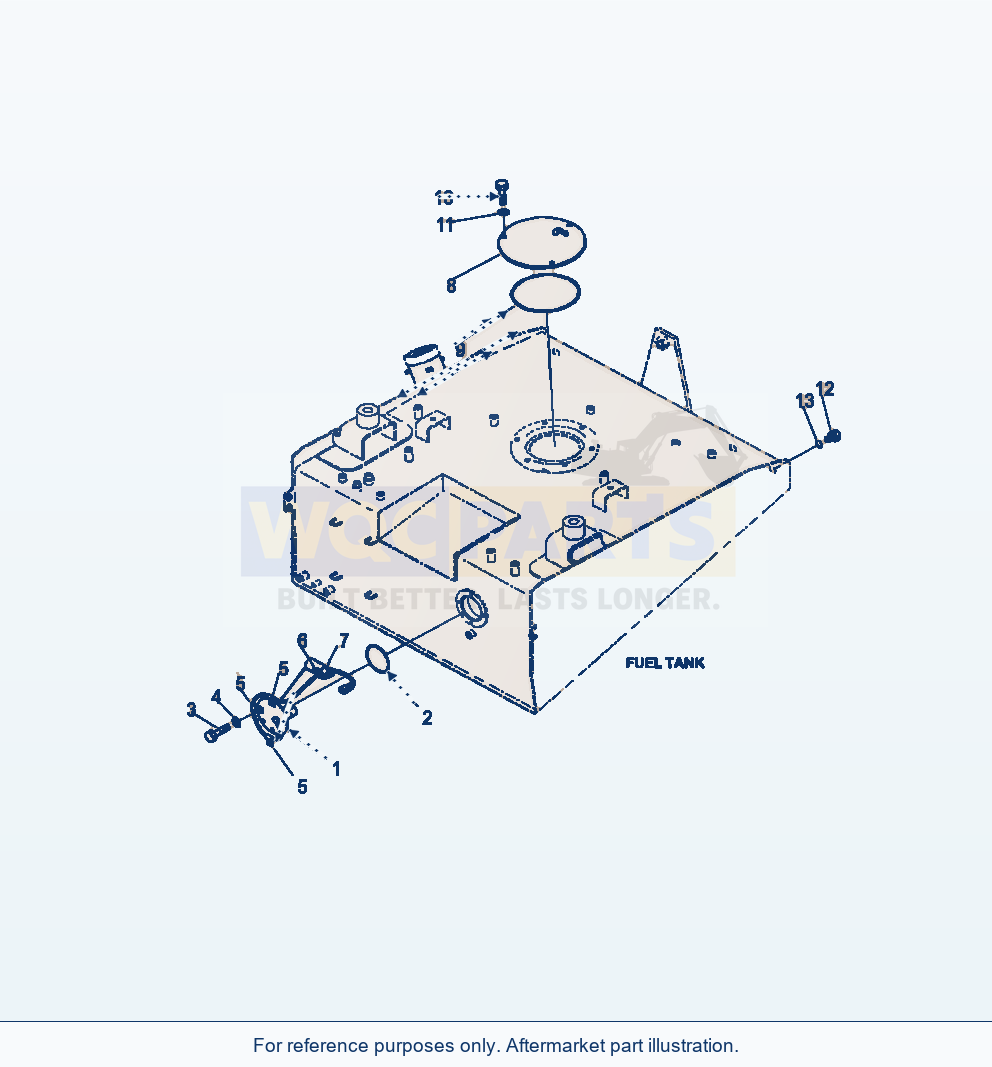

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SENSOR, FUEL LEVEL | 1 | Request quote | |||
| 2 | O-RING | 1 | View product ↗ | |||
| 3 | BOLT | 6 | Request quote | |||
| 4 | WASHER | 6 | View product ↗ | |||
| 5 | CLIP | 3 | Request quote | |||
| 6 | CLIP | 1 | Request quote | |||
| 7 | CUSHION | 1 | Request quote | |||
| 8 | COVER | 1 | Request quote | |||
| 9 | O-RING | 1 | View product ↗ | |||
| 10 | BOLT | 3 | Request quote | |||
| 11 | WASHER | 3 | View product ↗ | |||
| 12 | PLUG | 3 | View product ↗ | |||
| 13 | O-RING | 3 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Fuel Tank Fuel Level Sensor And Mounting Parts
Use the Komatsu WA380-7 Fuel Tank Fuel Level Sensor And Mounting Parts listing to identify aftermarket replacement parts within the fuel tank and related parts section. This wheel loader application is listed for machine serial A64001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including sensor, fuel level (reference 7861-93-4832), clip (reference 04434-50610) and clip (reference 04434-51610). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
