Komatsu WA380-7 Wheel Loader Exterior Plates And Decals French Parts
Komatsu WA380-7 exterior plates and decals french parts for machine serial A64001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Exterior Plates And Decals French.
Checking current purchase options...

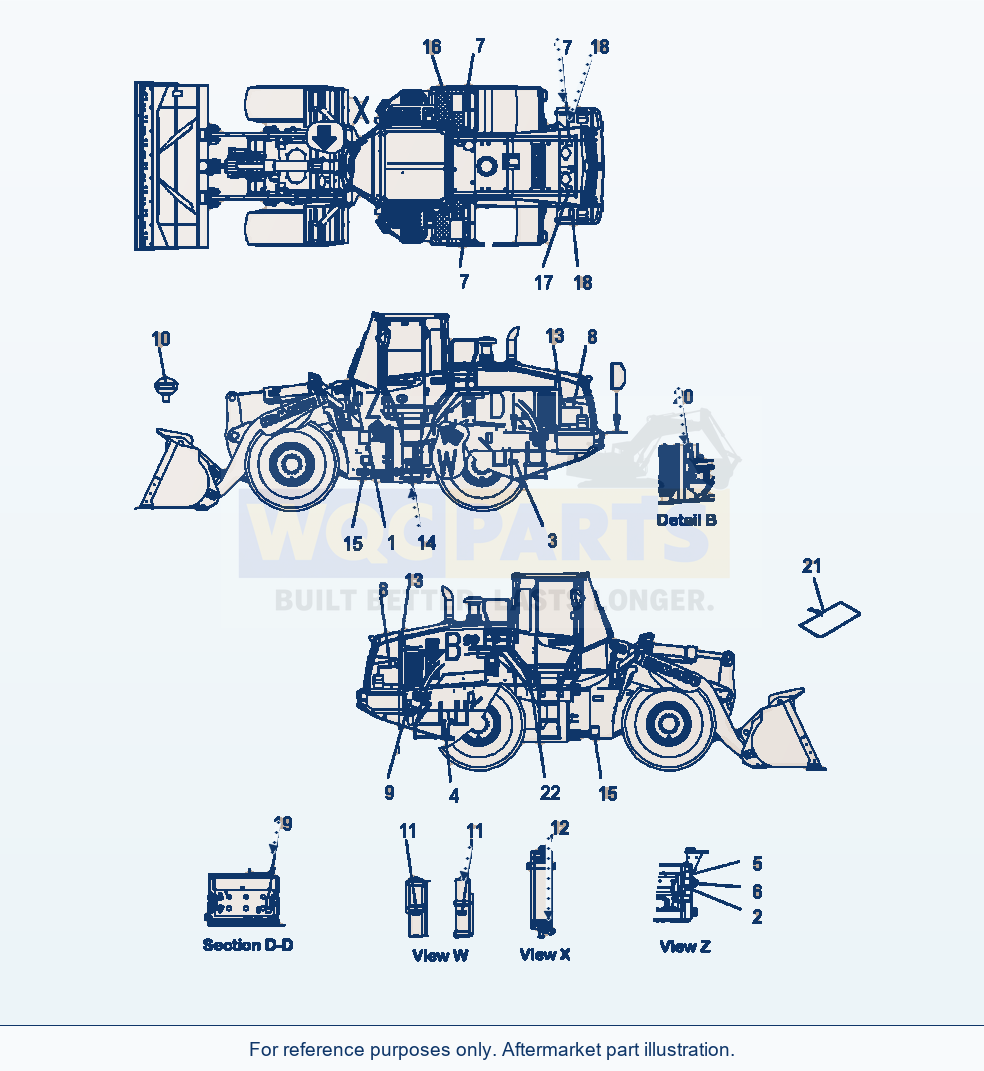

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE ASSEMBLY | 1 | Request quote | |||
| 1 | PLATE, REMOTE GREASE, CYLINDER | 1 | Request quote | |||
| 2 | PLATE, REMOTE GREASE, REAR AXLE | 1 | Request quote | |||
| 3 | PLATE, RADIATOR DRAIN | 1 | Request quote | |||
| 4 | PLATE, ENGINE OIL DRAIN | 1 | Request quote | |||
| 5 | PLATE, PARKING BRAKE EMERGENCY RELEASE SWITCH | 1 | Request quote | |||
| 6 | PLATE, PARKING BRAKE EMERGENCY RELEASE CAUTION | 1 | Request quote | |||
| 7 | PLATE, CAUTION, FENDER, GETTING ON FENDER | 2 | Request quote | |||
| 8 | PLATE, CAUTION, DO NOT APPROACH | 2 | Request quote | |||
| 9 | PLATE, CAUTION, DIESEL FUEL | 1 | Request quote | |||
| 10 | PLATE, WARNING, EXPLOSION HAZARD, PPC ACCUMULATOR | 1 | Request quote | |||
| 11 | PLATE, WARNING, EXPLOSION HAZARD, BRAKE ACCUMULATOR | 2 | Request quote | |||
| 12 | PLATE, WARNING, EXPLOSION HAZARD, ECSS ACCUMULATOR | 1 | Request quote | |||
| 13 | PLATE, CAUTION, ROTATING OBJECT | 2 | Request quote | |||
| 14 | PLATE, WARNING, ARTICULATION LOCK | 1 | Request quote | |||
| 15 | PLATE, DANGER, KEEP OFF | 2 | Request quote | |||
| 16 | PLATE, WARNING, HIGH TEMPERATURE | 1 | Request quote | |||
| 17 | PLATE, WARNING, HOT WATER | 2 | Request quote | |||
| 18 | PLATE, WARNING, BATTERY CABLES | 2 | Request quote | |||
| 19 | PLATE, DANGER, BATTERY | 2 | Request quote | |||
| 20 | PLATE, PRE-FILTER CAUTION | 1 | Request quote | |||
| 21 | TAG, DANGER, DO NOT OPERATE | 1 | Request quote | |||
| 22 | PLATE, SERVICE INSTRUCTION, ENGINE COOLANT AF-NAC | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA380-7 Wheel Loader Exterior Plates And Decals French Parts
Use the Komatsu WA380-7 Wheel Loader Exterior Plates And Decals French Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A64001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including plate assembly (reference 423-93-51290), plate, remote grease, cylinder (reference NSS) and plate, remote grease, rear axle (reference NSS). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
